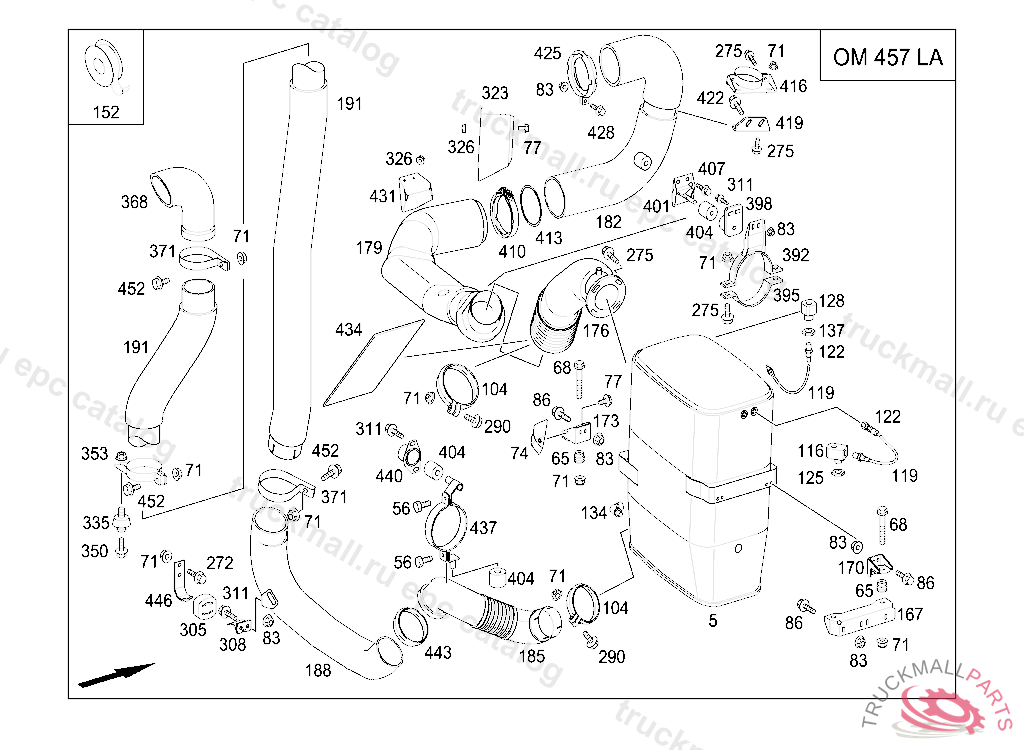

Поз.
Артикул
Описание
5
CATALYTIC CONVERTER , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.03.2010
56
SCREW STRUT TO CROSS MEMBER M 10X25
65
DASHPOT
68
HEXAGON HEAD BOLT AUTOMATIC TRANSMISSION AT ENGINE M10X60
71
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
74
HEAT SHIELD. PROTECTIVE PLATE
77
HEXAGON HEAD BOLT
83
NUT HORN TO BRACKET M8
86
SCREW , Replaced By: N910143008002
104
CLAMP , Replaced By: N071555124501
116
BASE PLATE
119
HOSE
122
CONNECTION FITTING
125
NUT FITTING TO BRACKET,230274
128
BASE PLATE
134
CONNECTION FITTING
137
NUTM24X1.5
152
SEALING STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
167
170
173
176
179
182
185
188
191
272
SCREWM 10X20
275
SCREW STRUT TO CROSS MEMBER M 10X25
275
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
290
SCREW BRACKET TO SIDE MEMBER M10X35
305
DAMPING PAD EXHAUST MUFFLER SUSPENSION
308
CONSOLE FRONT EXHAUST MUFFLER
311
SCREW BRACKET TO CAB REAR PANEL M 8X20
323
PROTECTIVE PLATE
326
NUT BRACKET TO FIRE WALL
335
BUFFER
350
SCREW BRACKET TO DISC WHEEL M 10X16,D 315832
353
NUT , Replaced By: N913023010002
368
371
392
395
398
401
404
RUBBER BUSHING EXPANSION TANK D50X45MM
407
HEXAGON HEAD BOLT. SCREW FRONT EXHAUST PIPE TO BRACKET
410
413
416
419
422
HEXAGON HEAD BOLT HEAT SHIELD MOUNTING M16X1.5X30
425
CLAMP FRONT EXHAUST PIPE TO THROTTLE HOUSING
428
HEXAGON HEAD BOLT. SCREW BRACKET MOUNTING M8 X 30
431
434
437
440
443
446
BRACKET EXHAUST MUFFLER SUSPENSION
452
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
