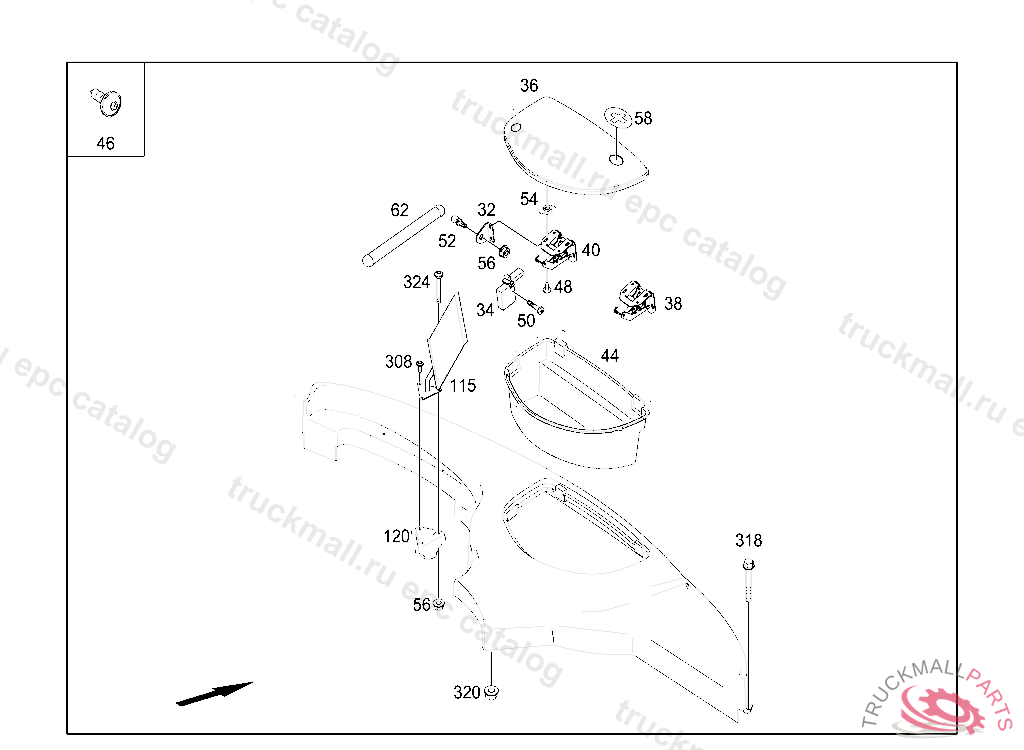

Поз.
Артикул
Описание
32
ANGLE
34
FASTENER
36
COVER
38
HINGE WITH SET SCREW
40
HINGE
44
GLOVE COMPARTMENT
46
TAPPING SCREW MOUNTING, HANDLE MBN 10169-ST3.5X19-R
48
TAPPING SCREW MOUNTING PLATE 3.5X9.5
50
TAPPING SCREW2,9X13
52
BALL PIVOT ACCELERATOR PEDAL
54
NUT BRACKET MOUNTING
56
NUT , Replaced By: N913023006001
58
GUIDE SIGN
62
GAS PRESSURE STRUT , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.06.2010
62
SPRING , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 31.05.2010
115
BRACKET SCHEDULE BOARD, NO.7327I....... I I II I .......INO.8425 I I II I
120
CONSOLE
308
SCREW BRACKET TO COVERING
318
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
320
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
324
HEXALOBULAR BOLT ROCKER PANEL M6X60
