Поз.
Артикул
Описание

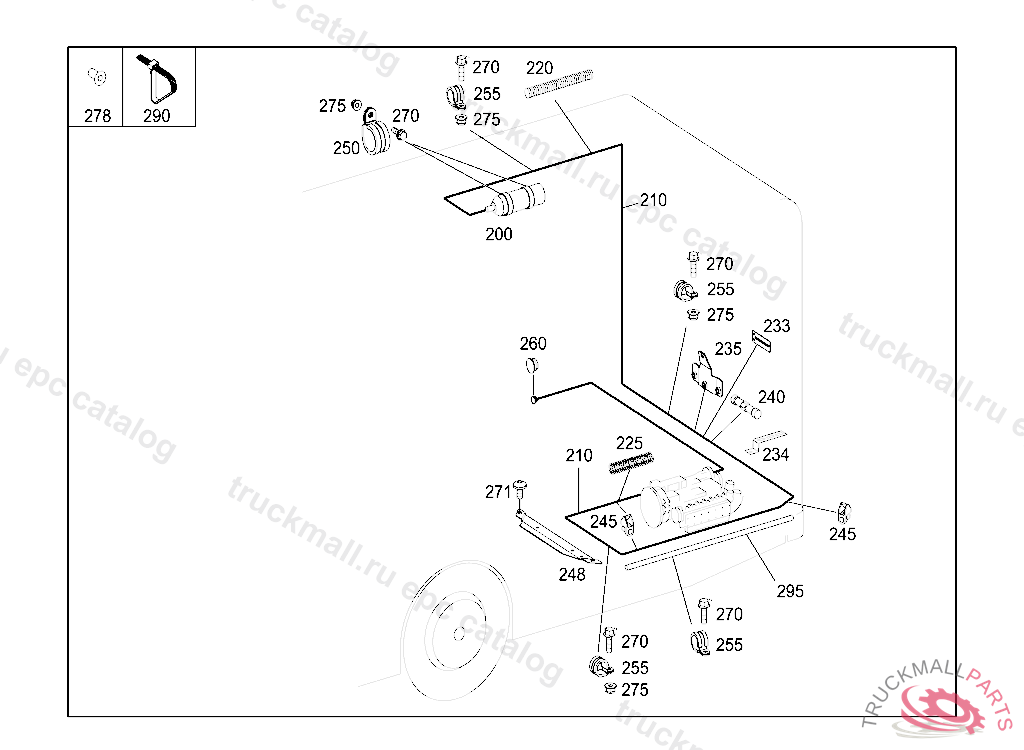

200
PRESSURE AGENT CONTAINER
210
DETECTOR TUBE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
220
HOSE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
225
SPRING , TO BE ADAPTED DURING ASSEMBLY
233
BRACKET
234
BRACKET
235
BRACKET
240
COUPLING
245
BRACKET ELECTRIC CABLE MOUNTING
248
BRACKET
250
MOUNTING CLAMP58/20
250
CLAMP76/25MM
255
CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM, Replaced By: A0019950642
255
CLAMP LINE MOUNTING 10/15, Replaced By: N000000007511
255
CLAMP28/15, Replaced By: A0019951842
255
CLAMP
255
CLAMP10/20MM
255
CLAMP6/15, Replaced By: N000000007509
255
CLAMP LINE MOUNTING
255
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
255
CLAMP8/20 RSGU
260
TEST CONNECTION
270
SCREW , Replaced By: N910143008000
270
SCREW BRACKET AND CLAMP M6X20
270
SCREW , Replaced By: N910143008002
270
SCREW , Replaced By: N914146006102
271
HEXALOBULAR BOLTM5X12
275
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
275
NUTM6
275
NUT BRACKET TO FIRE WALL
278
RIVETED NUT
290
CABLE TIE LINE MOUNTING 375X8.4MM
295
GUIDE TUBE
999
BATTERY
999
PLATE
999
SHELL
