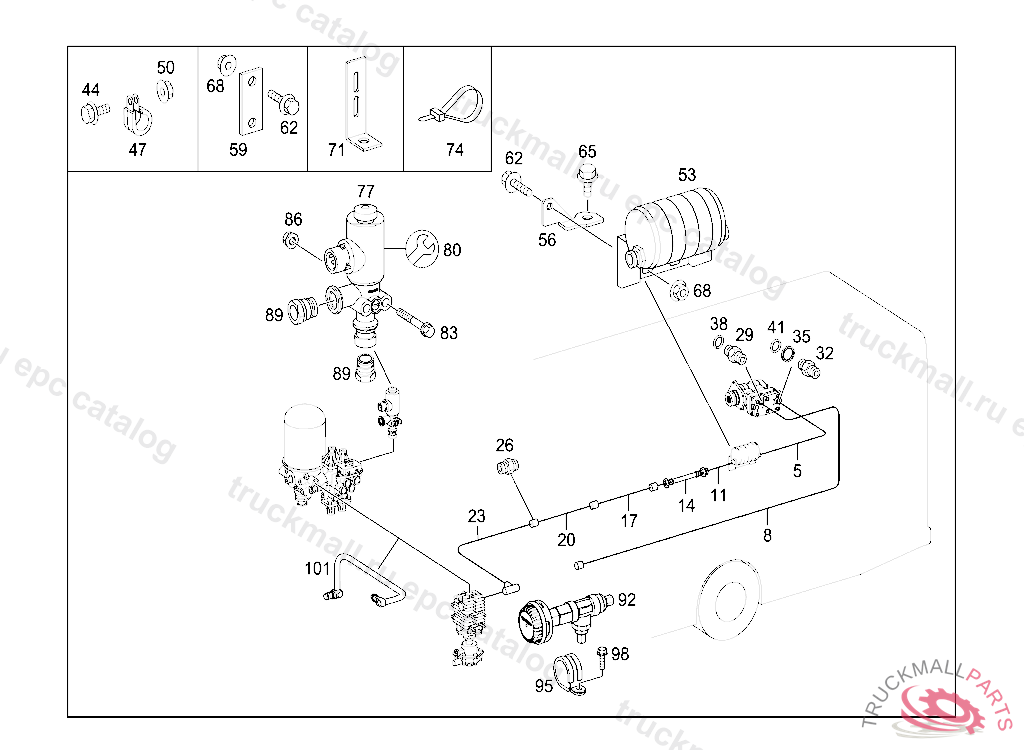

Поз.
Артикул
Описание
5
LINE AIR COMPRESSOR
5
LINE AIR COMPRESSOR, AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 01.08.2009
5
LINE AIR COMPRESSOR, AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 01.08.2009
5
LINE AIR COMPRESSOR, UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 31.07.2009
5
COMPRESSED AIR LINE AIR COMPRESSOR
8
LINE AIR COMPRESSOR
8
LINE AIR COMPRESSOR
11
LINE FROM HOSE TO MUFFLER
11
LINE FROM HOSE TO MUFFLER, AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 01.08.2009
11
LINE FROM HOSE TO MUFFLER, AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 01.08.2009
11
LINE FROM HOSE TO MUFFLER, UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 31.07.2009
11
COMPRESSED AIR LINE
14
COMPRESSED AIR HOSE FROM HOSE TO MUFFLER
14
BRAKE HOSE FROM HOSE TO MUFFLER, Replaced By: A0014292635
17
LINE , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 31.07.2009
17
LINE , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 01.08.2009
20
COMPRESSED AIR LINE
20
LINE , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 31.07.2009
20
LINE , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 01.08.2009
23
COMPRESSED AIR LINE. LINE , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 01.08.2009
23
LINE
26
FITTING BETWEEN THE LINES
26
CONNECTION FITTING LINE CONNECTIONS
26
CONNECTION FITTING , Replaced By: N003902018002
29
TS DOUBLE FITTING SOLENOID VALVE
29
FITTING , Replaced By: A0029906071
29
FITTING , Replaced By: A0039979072
32
SCREW-IN FITTING , Replaced By: A0029970271
32
SCREW-IN FITTING AIR COMPRESSOR,CONNECTION: "20"
35
THRUST RING SUCTION LINE TO OIL PUMP
35
SEAL RING LINE TO OIL PUMP
38
SEAL RING LINE CONNECTION
38
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
41
SEAL RING LINE CONNECTION
44
SCREW , Replaced By: N910143008000
44
SCREW BRACKET TO CAB REAR PANEL M 8X20
44
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
44
HEXALOBULAR BOLT LINE MOUNTING M6 X 25
44
SCREW BRACKET TO SIDE MEMBER M8X20
44
SCREW SPEED SENSOR TO REAR AXLE
47
MOUNTING CLAMP MOUNTING USED FOR COMPRESSED AIR LINES RS 18/15T0,8
47
CLAMP MOUNTING USED FOR COMPRESSED AIR LINES 18/20
47
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 18/15 MM
47
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM
47
CLAMP MOUNTING USED FOR COMPRESSED AIR LINES 6/15
47
CLAMP HYDRAULIC LINE TO SIDE MEMBER,RB012797
47
CLAMP PIPE LINE TO CONDENSER
47
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
47
CLAMP LINE MOUNTING
47
CLAMP MOUNTING USED FOR COMPRESSED AIR LINES 18/15, Replaced By: A0019951142
47
CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM, Replaced By: A0019950642
47
CLAMP LINE MOUNTING 15-18 MM,V 207570
47
MOUNTING CLAMP W SHACKLE HEAT-RESISTANT 6/20
50
NUT BRACKET TO FIRE WALL
50
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
53
MUFFLER , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 01.08.2009
53
MUFFLER , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 31.07.2009
56
BRACKET
59
PLATE
62
SCREW BRACKET TO CAB REAR PANEL M 8X20
62
SCREW BRACKET TO SIDE MEMBER M8X20
65
SCREW PICK-UP PLATE BRACKET ON LONGITUDINAL MEMBER M 14X25
65
SCREW. HEXAGON HEAD BOLT BRACKET MOUNTING M14X1.5X25,V 207570
68
NUT HORN TO BRACKET M8
68
NUT ENGINE MOUNTING M8
71
BRACKET
74
CABLE TIE LINE MOUNTING 375X8.4MM
77
VALVE (3/2-WAY SOLENOID VALVE)
80
REPAIR KIT 3/2-WAY SOLENOID VALVE
83
SCREW 3/2-WAY VALVE TO BRACKET
83
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
86
NUT HORN TO BRACKET M8
86
NUT ENGINE MOUNTING M8
89
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16 ,VOSS 232
92
VALVE
95
CLAMP32/20MM, Replaced By: N000000007538
95
CLAMP
98
SCREW BRACKET TO CAB REAR PANEL M 8X20
98
SCREW BRACKET TO SIDE MEMBER M8X20
101
LINE
