Главная
›
Mercedes
›
BUS
›
S 416 NF
›
628.887
›
88 ATTACHMENT PARTS
›

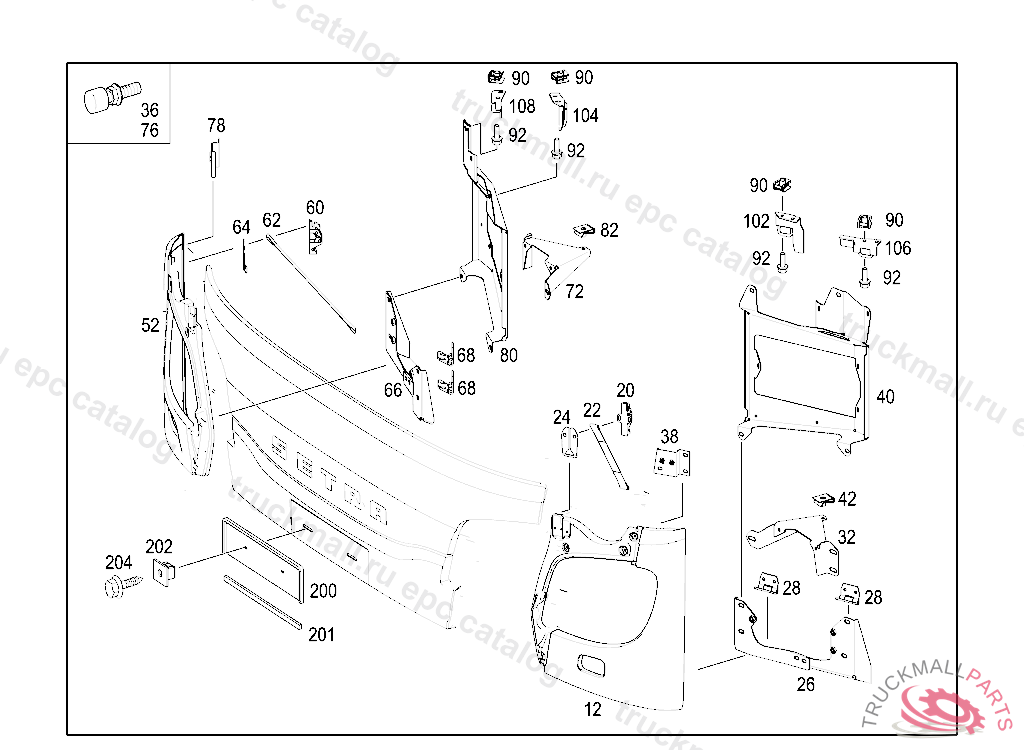

060 FRONT BUMPER IL. 1
Mercedes A6287510251 - SCHARNIER RE
S 416 NF 628.887
88 ATTACHMENT PARTS - 060 FRONT BUMPER IL. 1
Поз.
Артикул
Описание
12
A6288853703
BUMPERETTE WITH FOGLAMP
20
A3577500150
LOCK
22
A6287500564
BAND
24
A6287510014
BRACKET
26
A6288803714
BRACKET
28
A6287510151
HINGE
32
A6288855714
BRACKET
36
A2019880511
BUFFER LEFT, FROM CHASSIS: 010 077937
38
A6288803914
BRACKET
40
A6288856114
BRACKET
42
A0029942145
LOCK. NUT , Replaced By: A0039941745
52
A6288853803
BUMPERETTE WITH FOGLAMP
60
A3577500150
LOCK
62
A6287500564
BAND
64
A6287510014
BRACKET
66
A6288803814
BRACKET
68
A6287510251
HINGE
72
A6288855814
BRACKET
76
A2019880511
BUFFER LEFT, FROM CHASSIS: 010 077937
78
A6288804014
BRACKET
80
A6288856214
BRACKET
82
A0029942145
LOCK. NUT , Replaced By: A0039941745
90
A0049941545
NUT RETAINER. LOCK LEFT AND RIGHT SPOILER AT CENTER PIECE
92
N910143006001
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
92
N910105006004
SCREW , Replaced By: N914146006102
102
A6288804314
BRACKET
104
A6288804414
BRACKET
106
A6288804114
BRACKET
108
A6288804214
BRACKET
200
A0005250151
BRACKET
200
A0005250051
BRACKET LINCENSE PLATE BRACKET
201
A0005250251
BRACKET
202
A0019949545
LOCK LICENSE PLATE TO BUMPER
204
N914031005202
COMBINATION BOLT VACUUM LINE TO SHOCK ABSORBER CONSOLE
