Mercedes N000000001933 - Болт с головкой торкс

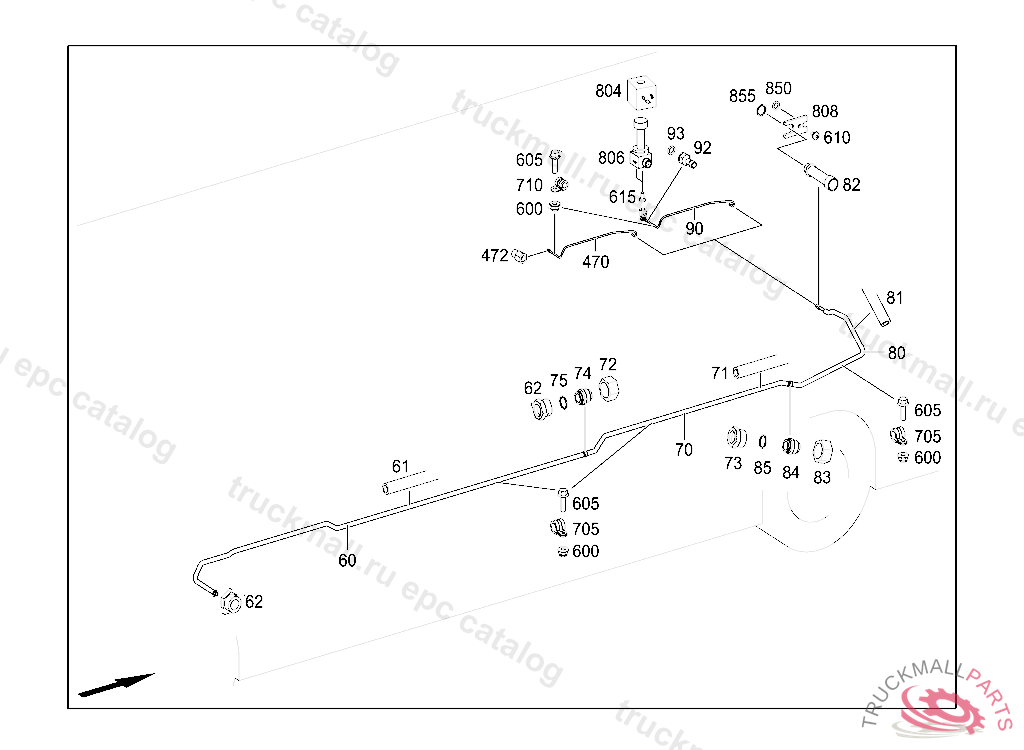

60

PIPE LINE

61

INSULATING HOSE22X32MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY

62

FITTINGM30X2

70

PIPE LINE

71

INSULATING HOSE22X32MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY

72

NUT

73

FITTINGM30X2

74

FITTING

75

SEAL RING20X2MM,TO A628 830 19 63

80

PIPE LINE

81

INSULATING HOSE22X32MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY

82

PIPE SOCKET

83

NUT

84

FITTING

85

SEAL RING20X2MM,TO A628 830 19 63

90

PIPE LINE

92

PIPE SOCKET5/8"-16

93

SEAL RING HOSE TO EXPANSION VALVE 7.5 MM

470

PIPE LINE

472

PIPE SOCKET5/8"-18

600

NUT BRACKET TO FIRE WALL

605

SCREW BRACKET AND CLAMP M6X20

610

HEXALOBULAR BOLT BRACKET ON TUBULAR SUPPORTING FRAMEWORK M6X12

705

CLAMP CABLE HARNESS MOUNTING

705

CLAMP28/15, Replaced By: A0019951842

705

MOUNTING CLAMP28/15

710

CLAMP10/15

710

CLAMP , Replaced By: N916016010211

710

CLAMP LINE MOUNTING 10/15, Replaced By: N000000007511

804

SOLENOID , FROM IDENT NO. 103042 ALSO INSTALLED ON 102603,102680,102700,102714,102727,102738,102754-102762,102766,102771-102774,102777-102781,102787- 102793,102809-102811,102816,102817,102819-102822,102824,102827-102829,102832-102835,102837-102840, 102842,102881,102882,102885-102893,102895,102896,102898,102899-102905,102907-102909,102911-102913, 102916-102918,102920,102921,102923,102925,102926,102928-102933,102937-102942,102944,102945,102947- 102951,102955-102959,102962-102967,102969,102970,102974-102982,102985,102986,102988-103012,103014- 103025,103027-103041.

806

VALVE

808

BRACKET

850

SEAL RING HOSE TO EXPANSION VALVE 7.5 MM

855

O-RING HOSE TO EXPANSION VALVE 17X2

999

ADHESIVE TAPE3X50MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY

999

CABLE TIE LINE MOUNTING 375X8.4MM
