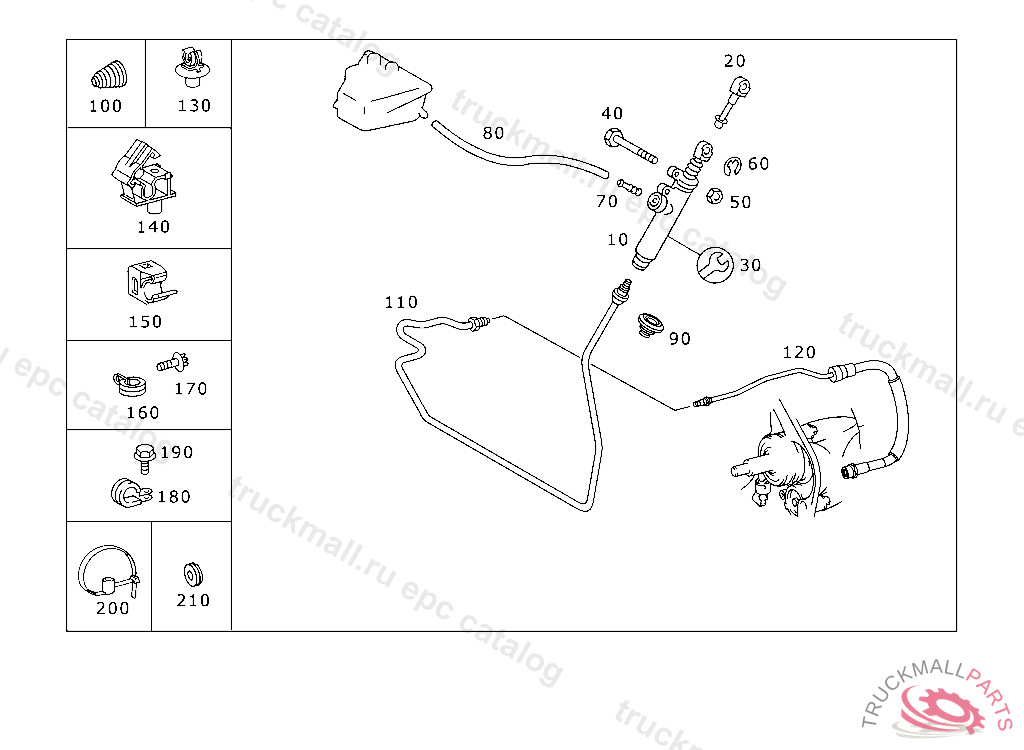

Поз.
Артикул
Описание
10
MASTER CYLINDER. CYLINDER
20
RODTO 001 295 31 06, A 050827 F 003714
30
REPAIR KIT MASTER CYLINDER TO 001 295 31 06,68 06, A 050827 F 003714
40
SCREW DISTRIBUTOR TO CAB
50
NUT SPRING-LOADED PUSH ROD
60
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
70
INTERMEDIATE PIECE
70
INTERMEDIATE PIECE REFILLING LINE TO MASTER CYLINDER
80
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
90
BOOT
100
BOOT FROM CLUTCH MASTER CYLINDER LINE TO SLAVE CYLINDER
110
LINE FROM MASTER CYLINDER TO CONNECTION POINT
110
LINE FROM MASTER CYLINDER TO CONNECTION POINT, NO LONGER AVAILABLE
130
CLAMP
140
CLAMP PEDAL ASSEMBLY HYDRAULICS, F 03089920000831 R 00225920001012 NO LONGER AVAILABLE
150
CLAMP LINES UNDER REAR SEAT FLOOR, A 360313 F 340137
160
CLAMP LINE TO TRANSMISSION
170
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
200
CABLE STRAP HOLDER. LOOM TIE
