Mercedes A2103230290 - ДЕРЖАТЕЛЬ

E 430 4MATIC 210.283 FROM MODELLJAHR CODE 800

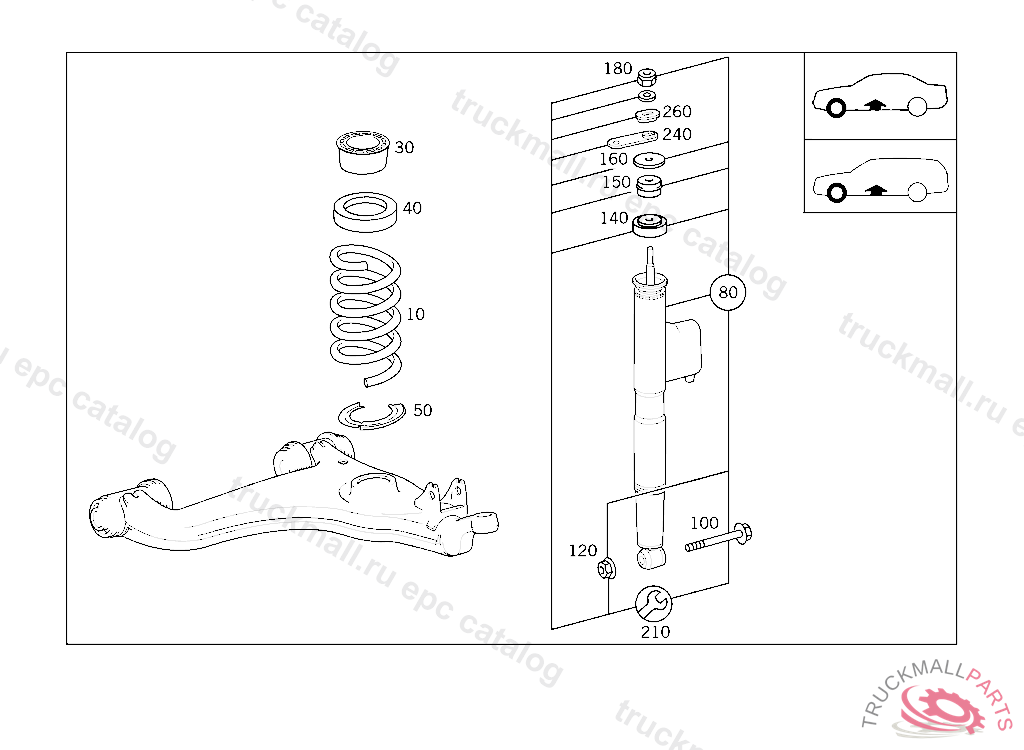

32 SPRINGS, SUSPENSION AND HYDRAULIC SYSTEM - 052 FRONT SPRINGS AND SUSPENSION WITH,OR LESS,ADAPTIVE DAMPING SYSTEM IL. 2

Поз.
Артикул
Описание
10
A2103213304
FRONT SPRING COLOR MARKING: 2 X GREEN/1 X YELLOW, UPON EXCHANGING SPRING, ALWAYS REPLACE LOWER SPRING SEAL
40
A2103210384
SHIM AS REQUIRED, NUMBER OF BURLS: 3(13 MM)
40
A2103210184
SHIM AS REQUIRED, NUMBER OF BURLS: 1(5 MM)
40
A2103210284
SHIM AS REQUIRED, NUMBER OF BURLS: 2(9 MM)
100
N910105014020
HEXAGON HEAD BOLT BRACKET TO SPRING SADDLE M14X1.5X110
120
N913023014003
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
140
A2103260468
RUBBER BUMPER BUMPER TO BODY
150
A2023260168
RUBBER BUMPER BUMPER TO BODY
160
N000125010532
WASHER RADIATOR TO RUBBER MOUNTING
160
N000000003386
WASHER P.T.O. TO TRANSMISSION
160
A2103260376
WASHER SHOCK ABSORBER TO FRAME
180
N000934010015
NUT , Replaced By: N308673010000
240
A2103230290
SCREENING PLATE PROTECTION AGAINST TORSION
260
A2103231185
RUBBER MOUNTING SHOCK ABSORBER TO FRAME
