Главная
›
Mercedes
›
VAN
›
VITO 114
›
638.134
›
83 HEATING AND VENTILATION
›

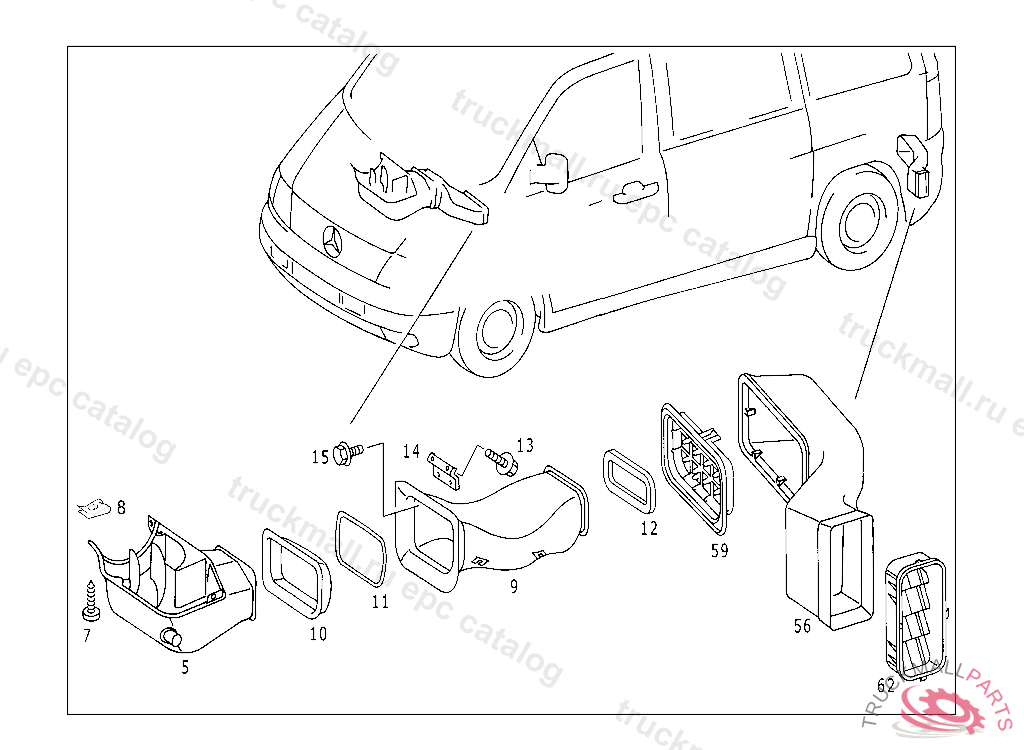

120 AIR GUIDE AND OPERATING UNIT IL. 1
Mercedes A6389841029 - Болт
VITO 114 638.134
83 HEATING AND VENTILATION - 120 AIR GUIDE AND OPERATING UNIT IL. 1
Поз.
Артикул
Описание
5
A6388310005
DISTRIBUTOR ,132903
5
A6388310105
DISTRIBUTOR ,132904
7
N914032004218
COMBINATION BOLT4,8X16
8
A0009948845
LOCK PLATE TO CONSOLE
9
A6388312345
DUCT , Replaced By: A6388313445, +001A6386200014, +002A6389841029
9
A6388313445
DUCT AIR INTAKE
10
A0008312898
SEAL
11
A0009810082
CLAMPING RING
12
A6388310741
COVERING AIR INTAKE
13
N910105005011
SCREW AIR INTAKE M5X16
14
A6386200014
BRACKET AIR INTAKE TO 638 831 34 45
15
A6389841029
SCREW BRACKET TO AIR DUCT TO 638 831 34 45
56
A6388360146
56
A6388360046
59
A6388310244
COVERING INSIDE
62
A9018300042
FLAP VENTILATION, REAR WALL OUTSIDE
