Главная
›
Mercedes
›
VAN
›
VITO 114
›
638.134
›
84 TRUNKS AND CASES
›

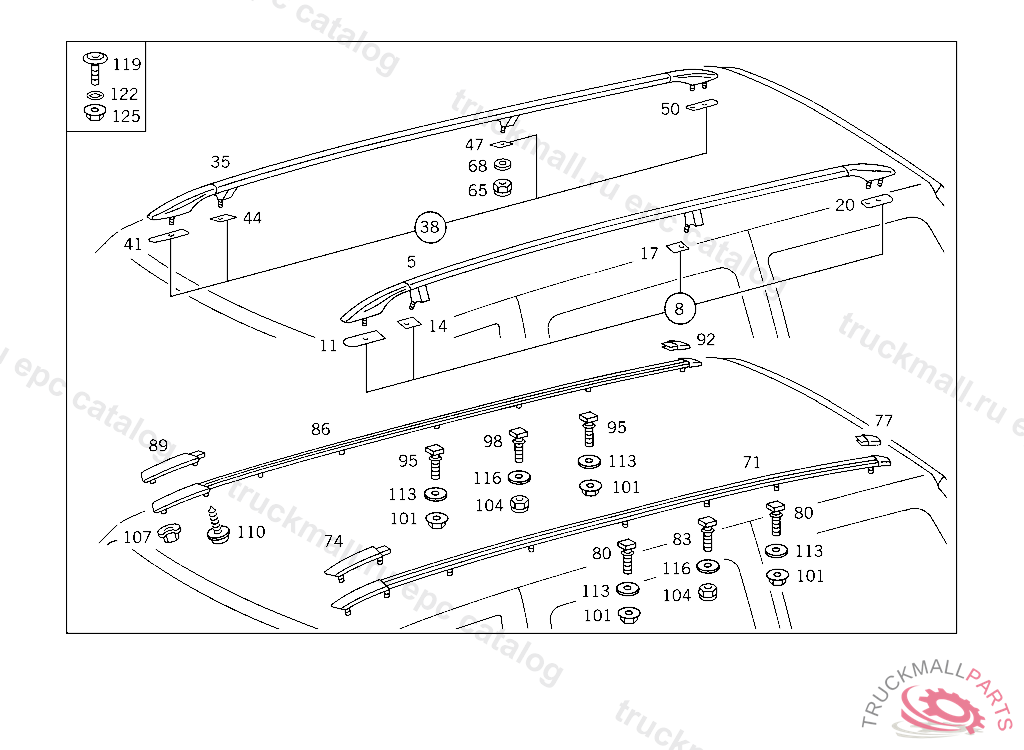

260 ROOF RAILING IL. 1
Mercedes N000125008443 - ШАЙБА
VITO 114 638.134
84 TRUNKS AND CASES - 260 ROOF RAILING IL. 1
Поз.
Артикул
Описание
5
A6388400020
ROOF RACK LEFT,154481
8
A0008420897
PAD PARTS KIT
11
A0008420097
PAD FRONT LEFT
14
A0008420497
PAD CENTRAL FRONT LEFT
17
A0008420697
PAD CENTRAL REAR LEFT
20
A0008420297
PAD REAR LEFT
35
A6388400120
ROOF RACK RIGHT,154481
38
A0008420997
PAD PARTS KIT
41
A0008420197
PAD FRONT RIGHT
44
A0008420597
PAD CENTRAL FRONT RIGHT
47
A0008420797
PAD CENTRAL REAR RIGHT
50
A0008420397
PAD REAR RIGHT
65
N910113008003
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
68
N000125008443
WASHER EXHAUST MUFFLER TO STRAP
71
A6388500068
RAIL LEFT,154481
74
A0008510127
COVERING FRONT LEFT
77
A0008510027
COVERING REAR LEFT
80
A0029905122
SCREWM 6X29
83
A0029905222
SCREWM 6X22
86
A6388500168
RAIL RIGHT,154481
89
A0008510327
COVERING FRONT RIGHT
92
A0008510227
COVERING REAR RIGHT
95
A0029905122
SCREWM 6X29
98
A0029905222
SCREWM 6X22
101
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
104
N913004006001
NUT PUMP TO BRACKET
107
N910104005000
NUT CONTROL UNIT TO BRACKET
110
N914127003209
SHEET METAL SCREW RAIL TO ROOF
113
A1269900144
PLATE TUNNEL,FRONT FLOOR
116
N009021006205
WASHER , Replaced By: N009021006208
119
A6389900125
SCREW PLUG,154481
122
A0079970348
SEAL RING
125
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
