Mercedes A6386310732 - Кронштейн

VITO 114 638.134

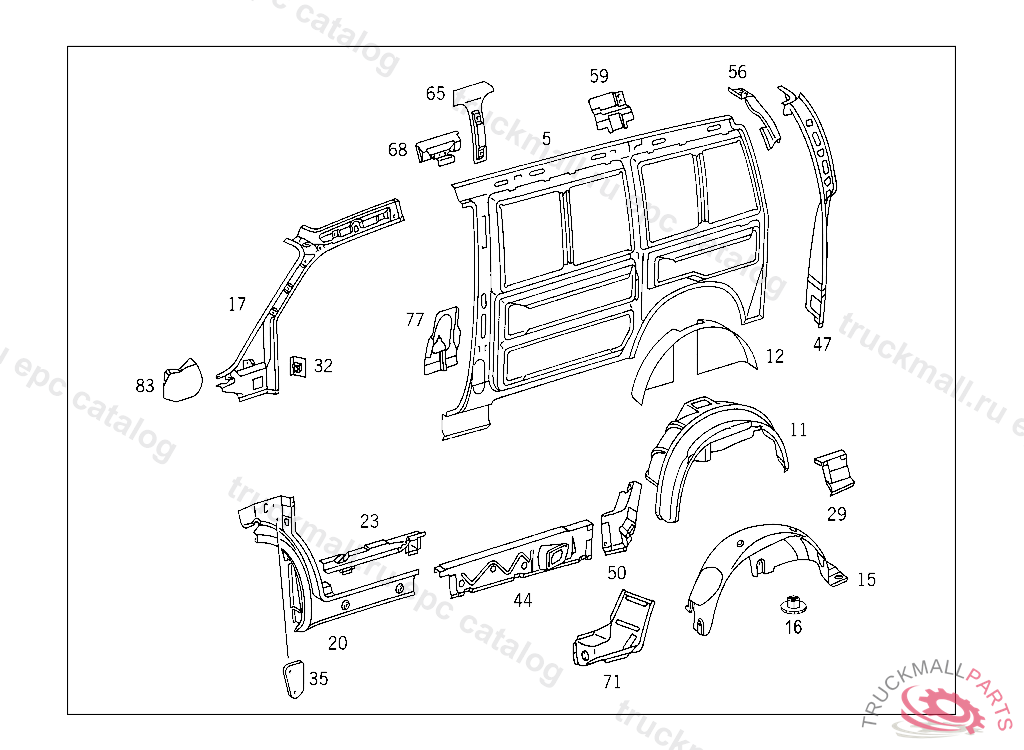

63 SIDE PANELS - 030 SIDE PANEL,LEFT IL. 1

Поз.
Артикул
Описание
5
A6386361109
SIDE PANEL WITHOUT LOAD COMPARTMENT SLIDING DOOR
11
A6386600450
WHEELHOUSE WITHOUT LOAD COMPARTMENT SLIDING DOOR
12
A6389891471
INSULATION600X200X1,5 MM, TO BE ADAPTED DURING ASSEMBLY
17
A6386310612
PILLAR PART A-PILLAR,INSIDE LEFT
20
A6386300013
PILLAR BOTTOM LEFT
23
A6386300205
GIRDER PART LEFT BOTTOM
29
A6386310732
CONNECTION LEFT
29
A6386310032
CONNECTION , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 071249, Replaced By: A6386310732
32
A6386301416
REINFORCEMENT LEFT
35
A6386300145
PLATE
44
A6386300605
GIRDER PART
47
A6386300514
PILLAR D-PILLAR,INSIDE LEFT
47
A6386300110
PILLAR D-PILLAR,INSIDE LEFT
50
A6386300289
TAKE-UP DEVICE C-PILLAR
56
A6387400106
REINFORCEMENT HINGE
59
A6386370212
ANGLE HINGE
65
A6386310216
REINFORCEMENT TOP LEFT
68
A6386320524
BRACKET
71
A6386312516
REINFORCEMENT C-PILLAR
77
A6386300916
REINFORCEMENT BELT REEL
83
A6386320009
END PIECE
