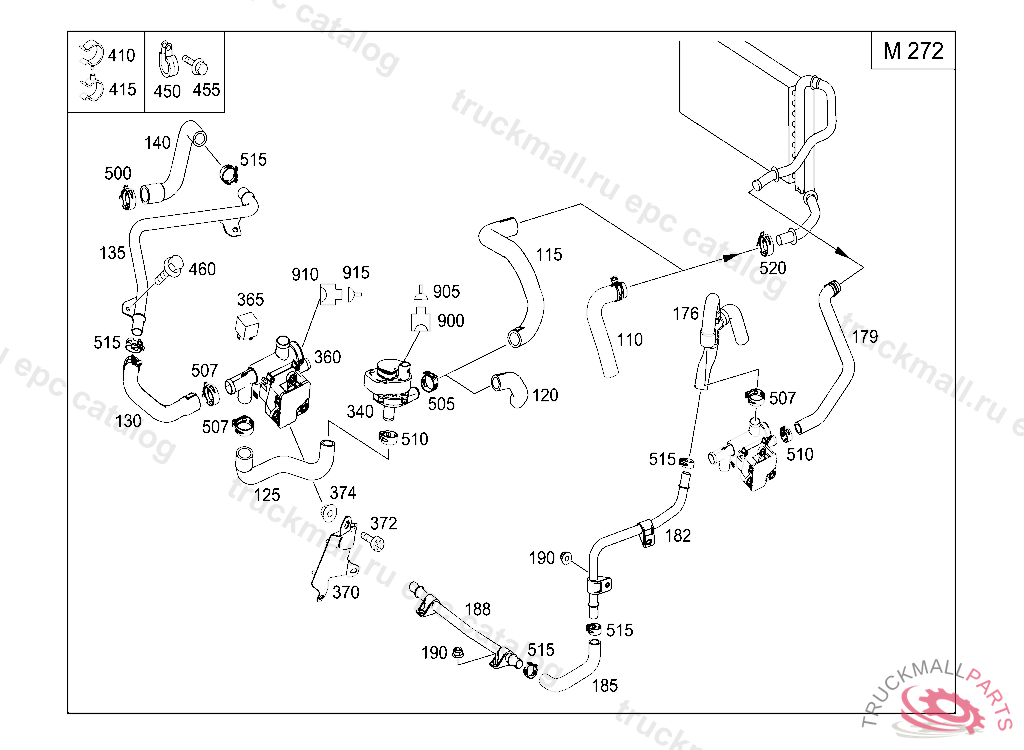

Поз.
Артикул
Описание
110
HOSE SUPPLY TO HEAT EXCHANGER,383442120130719
115
HOSE HEATING FEED
115
MOLDED HOSE INLET, FROM VALVE TO HEAT EXCHANGER, 53575020090828
115
HOSE FEED LINE, FROM CIRCULATION PUMP TO HEAT EXCHANGER, 22774920060315
115
HOSE FEED LINE, FROM CIRCULATION PUMP TO HEAT EXCHANGER, 22775020060315 53574920090828
120
HOSE FEED,AUXILIARY HEATER,383442220130719
125
HOSE FEED LINE AT CIRCULATION PUMP AND VALVE
130
HOSE HEATER FEED TO VALVE
135
PIPELINE ENGINE FEED
140
HOSE ENGINE FEED
176
HOSE RETURN FROM VALVE, 28520920061031
176
HOSE RETURN FROM VALVE, 28520920061031
176
MOLDED HOSE RETURN FROM VALVE,357677520100831
179
HOSE RETURN, FROM HEAT EXCHANGER TO VALVE
179
HOSE RETURN, FROM HEAT EXCHANGER TO VALVE
182
PIPELINE RETURN LINE TO SIDE MEMBER, 28520920061031
185
HOSE BETWEEN THE RETURN LINES
188
PIPELINE RETURN LINE, 28520920061031
190
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
340
PUMP , 40163520080109
340
PUMP CIRCULATION PUMP
360
VALVE , 11395020041202
360
VALVE
365
RELAY
370
BRACKET
370
BRACKET , 11395020041202
370
BRACKET , 11395120041202
372
WELD SCREW CONTROL UNIT BRACKET
374
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
410
CLAMP BRAKE HOSE
410
CLAMP HOSE TO HOSE
415
CLAMP HOSE TO HOSE 20 MM
450
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
455
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
460
SCREW
460
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
500
CLAMP25 MM
500
CLAMP HOSE FASTENING 28-35 MM,V 207570
505
CLAMP25 MM
507
CLAMP HOSE TO ENGINE 29/12MM
510
CLAMP25 MM
510
CLAMP. LOOM TIE
515
CLAMP25 MM
520
CLAMP25 MM
900
PLUG
900
RECEPTACLE HOUSING RIGHT POWER WINDOW MOTOR 2-PIN SLK2.8,M10/2
905
CONTACT SPRING. PLUG SOCKET0,5-1,0
905
GASKETTO 001 545 24 81, A 218853 ALSO INSTALLED ON A 103237 - A 218851 WITH CODE 030 F 190066 ALSO INSTALLED ON F 159752 - F 190064 WITH CODE 030 EXCEPT FOR A 219847
905
CONTACT SPRING. PLUG SOCKET1,0-2,5
905
GASKET
910
PIN BUSHING HOUSING 6-POLE
915
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
915
GASKET. BLIND PLUG BLUE
915
GASKET GREEN 0.5-0.75 MM2, PIN 01 - 56
