Поз.
Артикул
Описание

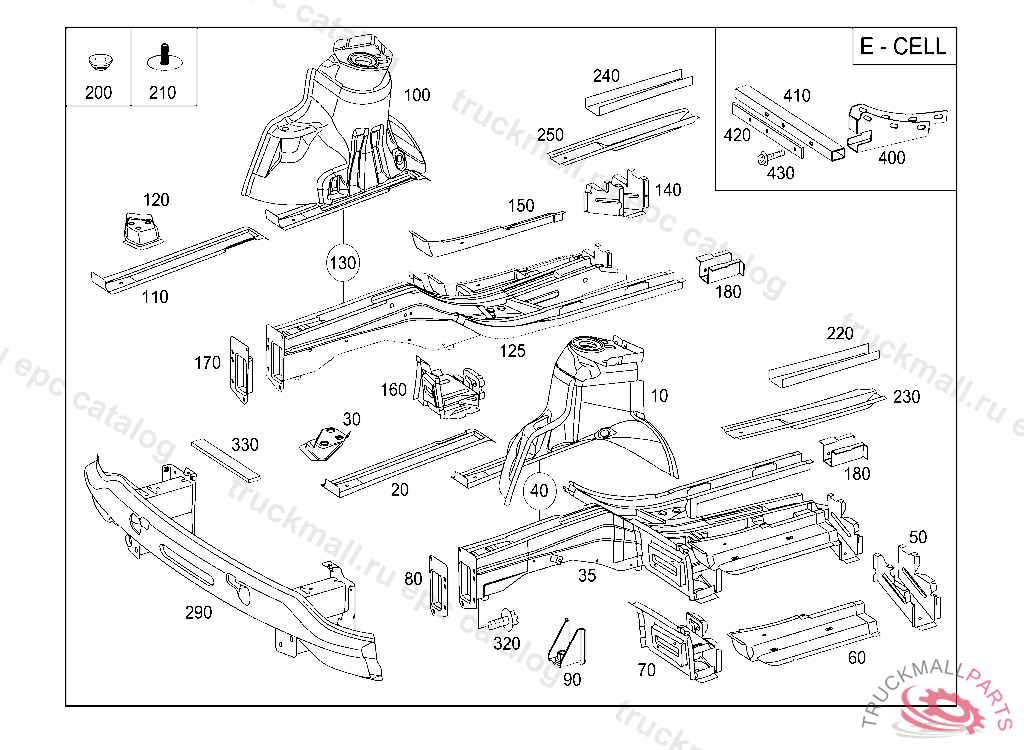

10
WHEEL ARCH FRONT LEFT
10
WHEEL ARCH FRONT LEFT
20
REINFORCEMENT
30
BRACKET HYDRAULIC UNIT, LEFT
35
SIDE MEMBER WITHOUT WHEEL ARCH, LEFT
40
LONGITUDINAL MEMBER LEFT
40
SIDE MEMBER LEFT
50
REINFORCEMENT
60
BOX FRONT ENTRANCE,LEFT
70
CONSOLE JACK TUBE FRONT LEFT
80
BRACKET
100
WHEEL ARCH FRONT RIGHT
100
WHEEL ARCH FRONT RIGHT
110
REINFORCEMENT
120
BRACKET HYDRAULIC UNIT, RIGHT
125
SIDE MEMBER WITHOUT WHEEL ARCH, RIGHT
130
LONGITUDINAL MEMBER RIGHT
130
SIDE MEMBER RIGHT
140
REINFORCEMENT
150
BOX FRONT ENTRANCE, RIGHT
160
CONSOLE JACK TUBE FRONT RIGHT
170
BRACKET RIGHT CRASHBOX
180
CONSOLE
200
EXPANSION PLUG IN FLOOR,FRONT
210
WELD SCREWM6X16
220
REINFORCEMENT SIDE MEMBER,INSIDE LEFT
230
REINFORCEMENT SIDE MEMBER,INSIDE LEFT
240
REINFORCEMENT SIDE MEMBER,INSIDE RIGHT
250
REINFORCEMENT SIDE MEMBER,INSIDE RIGHT
290
CROSS MEMBER BUMPER,BOTTOM
320
SCREW PIPE CLAMP
320
HEXAGON HEAD BOLT BRACKET TO BRACKET
330
ADHESIVE TAPE STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION 5X20MM, ORDER BY THE METER
400
CONSOLE LEFT
400
CONSOLE RIGHT
410
STRUT TRANSVERSE
420
RETAINING RAIL TRANSVERSE
430
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 8X60
