Поз.
Артикул
Описание

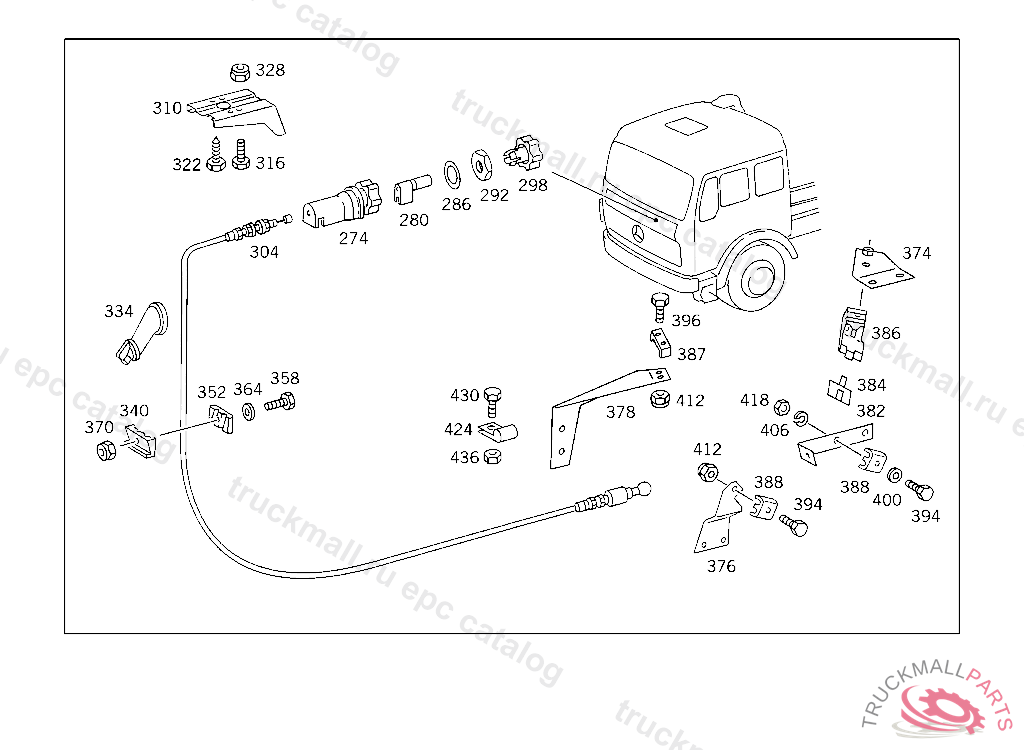

274
MANUAL CONTROL IDLING ADJUSTMENT
280
GUIDE MANUAL CONTROL
286
FITTED WASHER MANUAL CONTROL
292
NUT MANUAL CONTROL
298
KNOB MANUAL CONTROL
304
WIRE CABLE IDLING ADJUSTMENT, ONLY VALID FOR ENGINE 356.999
304
WIRE CABLE IDLING ADJUSTMENT
310
BRACKET
316
SCREW , Replaced By: N304017006018
316
SCREW , Replaced By: N304017006016
316
SCREW COVER PLATE TO COVER PLATE M 6 X 12
316
SCREW PUMP TO BRACKET
322
SHEET METAL SCREW , Replaced By: N914031005208
322
COMBINATION BOLT BRACKET TO WINDOW SILL GIRDER
328
NUT PUMP TO BRACKET
328
NUT , Replaced By: N913004006001
334
GROMMET WIRE CABLE THRU WINDOW SILL
340
CLAMPING PIECE WIRE CABLE TO FIRE WALL
340
CLAMPING PIECE FLEXIBLE SHAFT TO CAB FIRE WALL
352
CLAMPING PIECE CABLE PULL TO FIRE WALL
352
CLAMPING PIECE FLEXIBLE SHAFT TO FRAME SIDE MEMBER
358
SCREW CONNECTOR
364
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
364
WASHER COMPRESSED AIR LINE TO BRACKET
370
NUT , Replaced By: N913004006001
370
NUT PUMP TO BRACKET
376
BRACKET WIRE CABLE TO FRAME
382
BRACKET WIRE CABLE TO RADIATOR MOUNTING
388
CLAMPING PIECE FLEXIBLE SHAFT TO BUMPER SUPPORT
394
SCREW CAB FLOOR COVERING M 6X25
400
WASHER COMPRESSED AIR LINE TO BRACKET
406
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
412
NUT PUMP TO BRACKET
412
NUT , Replaced By: N913004006001
418
NUT BALL PIVOT TO LEVER
424
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
424
CLAMP ,K 147121, Replaced By: N000000000319
430
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
436
NUT PUMP TO BRACKET
436
NUT , Replaced By: N913004006001
999
PAD ACCELERATOR PEDAL
999
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
999
SCREW GUIDE RAIL RETROFIT M 6X35, BORE THREADED HOLES IN CAB FLOOR TO 6.5MM
