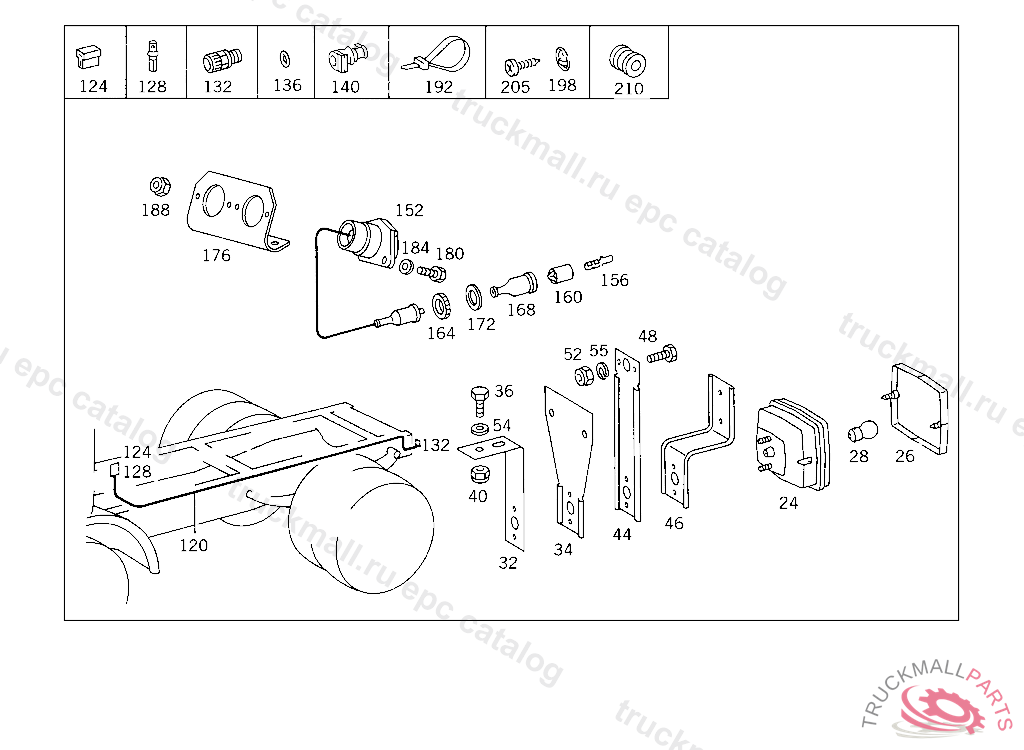

Поз.
Артикул
Описание
24
TAIL LAMP (REAR FOGLAMP)
24
EXTERIOR LAMP , Replaced By: A0005441104
24
TAIL LAMP (REAR FOGLAMP)
26
LENS REAR FOGLAMP
26
LENS
28
BULB , Replaced By: N072601024192
28
BULB TAIL LAMP 21 W
32
BRACKET , Replaced By: A6255440438
32
BRACKET TAIL LAMP TO SUPPORT
32
BRACKET BACK-UP LAMP
34
BRACKET FROM BACK-UP LAMP TO REAR CROSS MEMBER
34
BRACKET FROM BACK-UP LAMP TO REAR CROSS MEMBER
36
SCREW , Replaced By: A0099900101
36
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
36
SCREW END PIECE TO EXHAUST PIPE M 10X25
36
SCREW , Replaced By: N000933008337
40
NUT , Replaced By: N913004008001
40
NUT STRAP TO BRACKET
40
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
40
NUT , Replaced By: N910113010000
40
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
44
NUT , Replaced By: N913004008001
44
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
44
BRACKET BACK-UP LIGHT
46
BRACKET REAR FOGLAMP
46
BRACKET REAR FOGLAMP
48
SCREW TAIL LAMP TO BRACKET
48
SCREW TAIL LAMP TO BRACKET
48
SCREW COVER PLATE TO BRACKET
48
SCREW TAIL LAMP TO SUPPORT
48
SCREW , Replaced By: N304017008021
48
SCREW BRACKET TO SIDE MEMBER
48
SCREW , Replaced By: N304017008040
48
SCREW PIPE CLAMP
52
NUT , Replaced By: N913004008001
52
NUT TWO-WAY VALVE TO BRACKET
52
NUT PUMP TO BRACKET
52
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
52
NUT , Replaced By: N913004006001
54
WASHER , Replaced By: N000125010532
54
WASHER , Replaced By: N007349008007
54
WASHER RADIATOR TO RUBBER MOUNTING
54
WASHER
55
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
120
ELECTRIC CABLE FROM JUNCTION BOX TO REAR FOGLAMP
124
PIN BUSHING HOUSING BIPOLAR
128
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
132
BUSHING VALVE BRANCH-OFF
136
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
140
GROMMET JUNCTION BOX BRANCH-OFF
152
PLUG SOCKET FROM REAR FOGLAMP TO PLUG CONNECTION,5 024600
152
PLUG SOCKET , Replaced By: A6735400081
156
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
160
PIN BUSHING HOUSING 4-POLE
164
NUT
168
GROMMET
172
WASHER
176
BRACKET TRAILER PLUG SOCKET
180
SCREW PIPE CLAMP
180
SCREW , Replaced By: N304017008021
184
WASHER EXHAUST MUFFLER TO STRAP
184
WASHER , Replaced By: N000125008443
188
NUT , Replaced By: N913004008001
188
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
192
LOOM TIE LINE MOUNTING 280 MM
198
BRACKET LINE MOUNTING
205
SHEET METAL SCREW , Replaced By: N007981004385
205
SHEET METAL SCREW BRACKET TO UNDERRUN PROTECTION
210
GROMMET , Replaced By: A0009973381
210
GROMMET LINE MOUNTING 16/11 MM
999
EXPANSION PLUG TO LOCK TRAILER-PLUG-SOCKET OUTLET
999
EXPANSION PLUG FROM CAB PLUG CONNECTION TO SIDE LAMPS AND TO GROUND
999
PLUG TO PLUG THE FREE BORES IN INSTRUMENT PANEL,5 220080
999
ROUND PIN BUSHING , Replaced By: A0035452626
999
PIN BUSHING
999
ELECTRIC CABLE , Replaced By: A6225400036
999
ELECTRIC CABLE , Replaced By: A6225400036
999
BRACKET BACK-UP LIGHT
