Поз.
Артикул
Описание

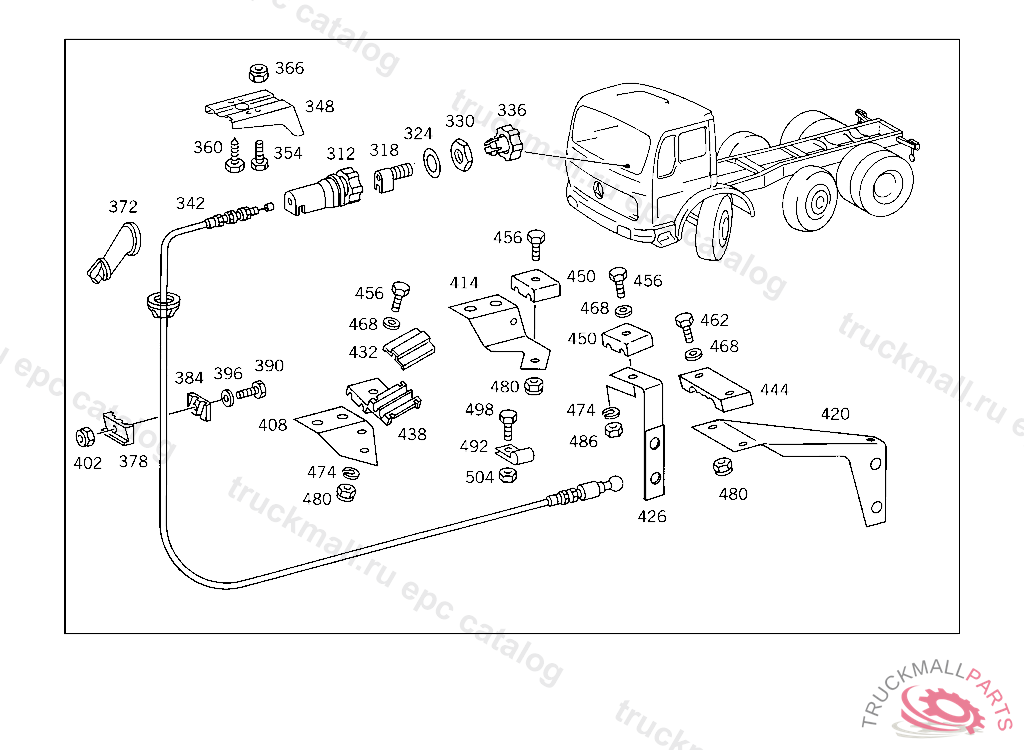

312
MANUAL CONTROL IDLING ADJUSTMENT
318
GUIDE MANUAL CONTROL
324
FITTED WASHER MANUAL CONTROL
330
NUT MANUAL CONTROL
336
KNOB MANUAL CONTROL
342
WIRE CABLE IDLING ADJUSTMENT
348
BRACKET
354
SCREW PUMP TO BRACKET
354
SCREW , Replaced By: N304017006016
354
SCREW COVER PLATE TO COVER PLATE M 6 X 12
354
SCREW , Replaced By: N304017006018
360
COMBINATION BOLT BRACKET TO WINDOW SILL GIRDER
360
SHEET METAL SCREW , Replaced By: N914031005208
366
NUT PUMP TO BRACKET
366
NUT , Replaced By: N913004006001
372
GROMMET WIRE CABLE THRU WINDOW SILL
378
CLAMPING PIECE FLEXIBLE SHAFT TO CAB FIRE WALL
378
CLAMPING PIECE WIRE CABLE TO FIRE WALL
384
CLAMPING PIECE FLEXIBLE SHAFT TO FRAME SIDE MEMBER
384
CLAMPING PIECE CABLE PULL TO FIRE WALL
390
SCREW CONNECTOR
396
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
402
NUT PUMP TO BRACKET
402
NUT , Replaced By: N913004006001
408
BRACKET WIRE CABLE TO RADIATOR MOUNTING CONSOLE
420
BRACKET WIRE CABLE TO FRAME SIDE MEMBER, 415 5 014669 416 5 000516 417 4 972024
432
COVER CABLE TO BRACKET
438
CLAMPING PIECE CABLE TO BRACKET
444
CLAMPING PIECE CABLE TO BRACKET
456
SCREW CAB FLOOR COVERING M 6X25
462
SCREW LONGITUDINAL DIFFERENTIAL LOCK VALVE TO BRACKET,5 963747
468
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
474
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
480
NUT PUMP TO BRACKET
480
NUT , Replaced By: N913004006001
999
PAD ACCELERATOR PEDAL
999
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
999
SCREW GUIDE RAIL RETROFIT M 6X35, BORE THREADED HOLES IN CAB FLOOR TO 6.5MM
