Поз.
Артикул
Описание

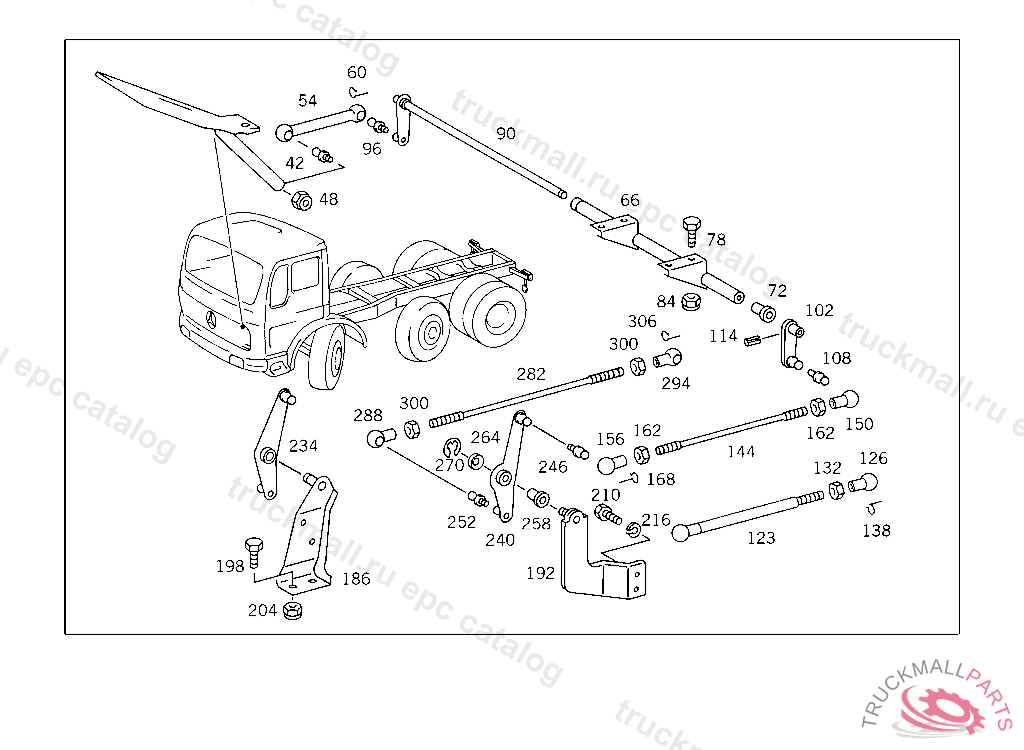

42
BALL PIVOT LOAD SENSOR
48
NUT , Replaced By: N913004006001
48
NUT PUMP TO BRACKET
54
BALL SOCKET ROD TO ACCELERATOR PEDAL
60
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
66
BEARING TUBE CONTROL SHAFT,5 151594
72
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
78
SCREW , Replaced By: N304017008016
78
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
84
NUT , Replaced By: N913004008001
84
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
90
SHAFT CONTROL,5 151594
96
BALL PIVOT
102
LEVER (CONTROL LEVER)
108
BALL PIVOT
114
CLAMPING SLEEVE , Replaced By: N308752004001
114
CLAMPING PIN CONTROL LEVER TO CONTROL SHAFT, TO BE ADAPTED DURING ASSEMBLY
123
ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
126
BALL SOCKET PULL ROD TO LEVER
126
BALL SOCKET PULL ROD TO LEVER
132
NUT BALL PIVOT TO LEVER
138
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
186
BEARING BRACKET INTERMEDIATE BEARING
198
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
204
NUT , Replaced By: N910113010000
204
NUT STRAP TO BRACKET
234
LEVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 188038-5 251581, Replaced By: A6203001128
234
LEVER (INTERMEDIATE LEVER)
246
BALL STUD. BALL PIVOT TOP B10X4,5 MM
252
BALL PIVOT BOTTOM B13X5 MM
264
COVERING INTERMEDIATE BEARING
270
LOCK PLATE INTERMEDIATE BEARING
282
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
288
BALL SOCKET ROD TO BALL PIVOT
294
BALL SOCKET ROD TO BALL PIVOT
300
NUT
306
SECURING CLIP. CIRCLIP
999
SCREW GUIDE RAIL RETROFIT M 6X35, BORE THREADED HOLES IN CAB FLOOR TO 6.5MM
999
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
999
PAD ACCELERATOR PEDAL
