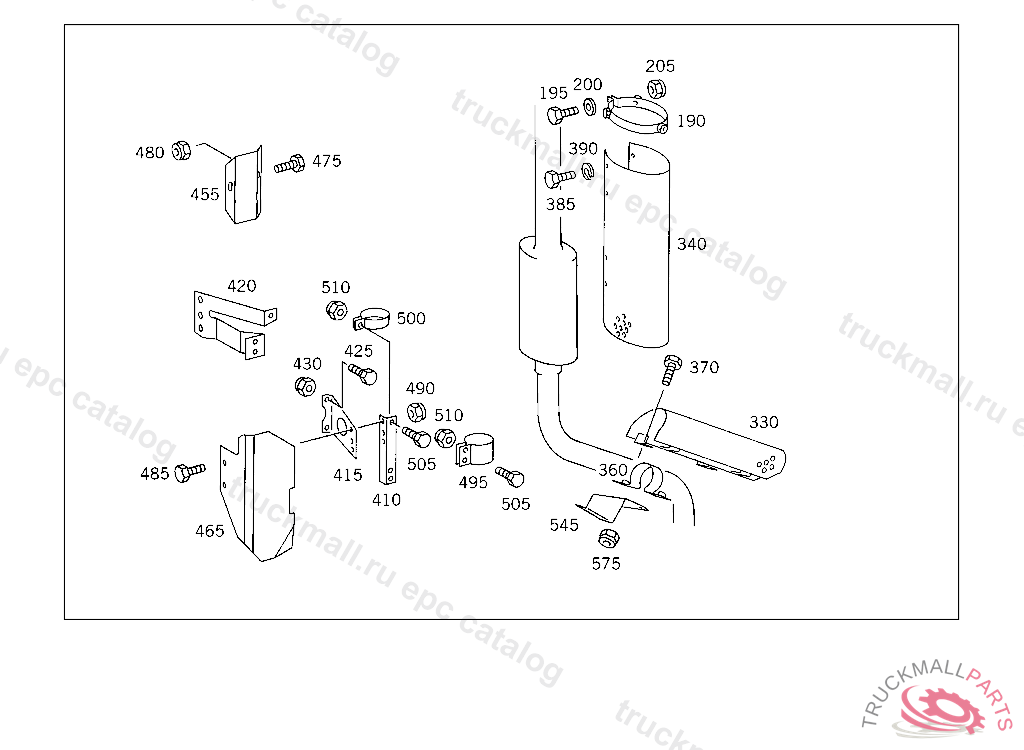

Поз.
Артикул
Описание
190
CLAMP HEAT SHIELD TO TAILPIPE
195
SCREW BRACKET TO SIDE MEMBER
195
SCREW , Replaced By: N304017010002
200
WASHER , Replaced By: N000125010532
200
WASHER RADIATOR TO RUBBER MOUNTING
205
NUT STRAP TO BRACKET
205
NUT , Replaced By: N910113010000
330
PROTECTIVE PLATE (HEAT SHIELD)
330
PROTECTIVE PLATE TOP 255 MM
330
PROTECTIVE PLATE (HEAT SHIELD)
340
PROTECTIVE PLATE (HEAT SHIELD)
340
PROTECTIVE PLATE , Replaced By: A6504920030
360
CLAMP , Replaced By: A4374920440
360
CLAMP , Replaced By: A3434920340
360
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
360
CLAMP HEAT SHIELD TO TAILPIPE
360
CLAMP HEAT SHIELD TO TAILPIPE
370
SCREW CLAMP TO BRACKET AND TO PIPE
370
SCREW CLAMP TO BRACKET,5 597426
370
SCREW PIPE CLAMP
370
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
370
SCREW BRACKET TO CROSS CONNECTION STRUT
370
SCREW , Replaced By: N910142008009
370
SCREW , Replaced By: N304017008039
370
SCREW , Replaced By: N304017008021
370
SCREW , Replaced By: N304017008034
385
SCREW , Replaced By: N304017008008
385
HEXAGON HEAD BOLT PROTECTIVE PLATE TO BRACKET
390
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
410
BRACKET TAIL PIPE
415
BRACKET TAIL PIPE
420
BRACKET EXHAUST PIPE & TAIL PIPE TO FRAME & CONSOLE
425
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
425
SCREW BRACKET TO SIDE MEMBER
425
SCREW , Replaced By: N304017010002
430
NUT , Replaced By: N910113010000
430
NUT , Replaced By: N910113014001
430
NUT STRAP TO BRACKET
430
NUT BRACKET TO SIDE MEMBER
455
PROTECTIVE PLATE , NOT USED
465
PROTECTIVE PLATE (HEAT SHIELD)
465
PROTECTIVE PLATE (HEAT SHIELD)
475
SCREW , Replaced By: N304017010002
475
SCREW BRACKET TO SIDE MEMBER
480
NUT STRAP TO BRACKET
480
NUT , Replaced By: N910113010000
485
SCREW , Replaced By: N304017008008
485
SCREW , Replaced By: N304017010002
485
HEXAGON HEAD BOLT PROTECTIVE PLATE TO BRACKET
485
SCREW BRACKET TO SIDE MEMBER
490
NUT STRAP TO BRACKET
490
NUT , Replaced By: N910113010000
490
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
495
CLAMP , Replaced By: A3434920340
495
CLAMP , Replaced By: N071555090501
495
CLAMP , Replaced By: N071555090502
495
CLAMP EXHAUST PIPE TO BRACKET
495
CLAMP EXHAUST PIPE TO BRACKET
495
CLAMP EXHAUST PIPE TO BRACKET
500
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
500
CLAMP EXHAUST PIPE
505
SCREW BRACKET TO SIDE MEMBER
505
SCREW EXHAUST PIPE TO SIDE MEMBER
505
SCREW , Replaced By: N304017010002
510
NUT , Replaced By: N910113010000
510
NUT STRAP TO BRACKET
510
NUT EXHAUST PIPE TO SIDE MEMBER
545
BRACKET EXHAUST PIPE TO FENDER
575
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
575
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
575
NUT , Replaced By: N913004008001
999
PROTECTIVE PLATE FUEL TANK
999
REAR EXHAUST PIPE
999
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
999
END PIECE
999
END PIECE EXHAUST MUFFLER,LEFT REAR
999
END PIECE ,5 193595
999
END PIECE
999
END PIECE REAR EXHAUST PIPE,5 298310
999
BRACKET STRUT
999
EXHAUST MUFFLER
999
BRACKET FRONT EXHAUST MUFFLER
999
BRACKET EXHAUST MUFFLER SUSPENSION
999
REAR EXHAUST PIPE TAIL PIPE,FRONT
999
END PIECE LONG,EXHAUST MUFFLER,RIGHT
999
END PIECE SHORT,EXHAUST MUFFLER,LEFT
999
END PIECE LONG,EXHAUST MUFFLER,RIGHT
999
END PIECE SHORT,EXHAUST MUFFLER,LEFT
999
END PIECE LONG,EXHAUST MUFFLER,LEFT
999
END PIECE SHORT,EXHAUST MUFFLER,RIGHT
999
END PIECE LONG,EXHAUST MUFFLER,LEFT
999
END PIECE , Replaced By: A6524926914
999
END PIECE EXHAUST MUFFLER,LEFT AND RIGHT
999
END PIECE EXHAUST MUFFLER,RIGHT REAR
999
END PIECE EXHAUST MUFFLER,RIGHT REAR
999
END PIECE
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 468858
999
REAR EXHAUST PIPE TAIL PIPE,FRONT
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 193595
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 468858
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 193595
999
BRACKET , Replaced By: A6524920741
999
REAR EXHAUST PIPE (TAIL PIPE)
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,RIGHT
999
REAR EXHAUST PIPE SHORT,EXHAUST MUFFLER,LEFT
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,RIGHT
999
EXHAUST PIPE FRONT,REAR PART,K 035522
999
END PIECE LEFT
999
END PIECE (TAIL PIPE)
999
END PIECE RIGHT
999
END PIECE TAIL PIPE,FRONT,K 027551
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 468859
999
END PIECE EXHAUST MUFFLER,LEFT REAR
999
END PIECE EXHAUST MUFFLER,RIGHT REAR
999
END PIECE (TAIL PIPE)
999
END PIECE (TAIL PIPE),K 035523
999
END PIECE (TAIL PIPE),K 035523
999
BRACKET
999
END PIECE TAIL PIPE TO EXHAUST MUFFLER
999
END PIECE (TAIL PIPE)
999
END PIECE ,5 765949
999
END PIECE
999
END PIECE
999
END PIECE (TAIL PIPE),5 5644795 758825
999
END PIECE (TAIL PIPE),5 5644795 758825
999
END PIECE (TAIL PIPE)
999
BRACKET ,5 768419, Replaced By: A3464910441
999
BRACKET EXHAUST PIPE TO SIDE MEMBER,K 035197
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
BRACKET BRACKET TO SPRING FRONT BRACKET,5 943736K 035522
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
END PIECE BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233
999
END PIECE (TAIL PIPE)
999
REAR EXHAUST PIPE TAIL PIPE,FRONT
999
END PIECE
999
BRACKET TAIL PIPE
999
BRACKET PROTECTIVE PLATE TO SUPPORT
999
SCREW , Replaced By: N304017010002
999
WASHER , Replaced By: N009021008213
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
NUT , Replaced By: N910113010000
