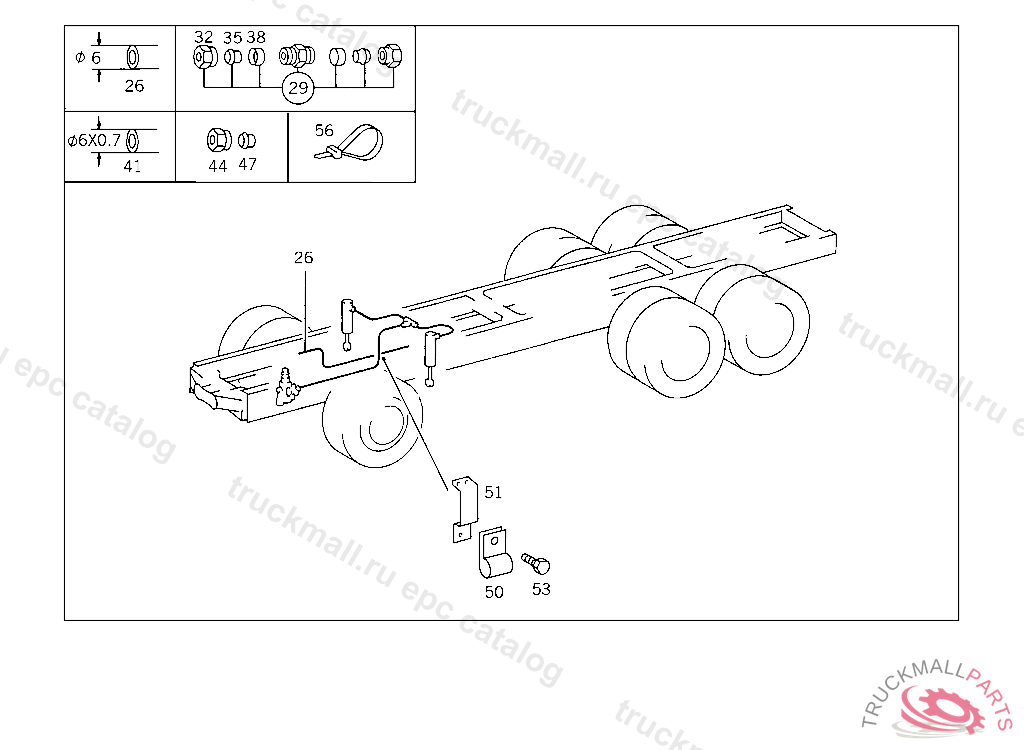

Поз.
Артикул
Описание
26
PLASTIC PIPE RISING PIPE 4X6 MM
26
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
29
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
32
UNION NUT
35
SEAL CONE
35
GLAND , Replaced By: A0019901667
38
SLEEVE LEAK LINE
41
LINE BRAKES 6X0.7 MM, LENGTH AVAILABLE 25000 MM
44
UNION NUT
47
SEAL CONE
47
GLAND , Replaced By: A0019901667
50
CLAMP LINE MOUNTING
51
BRACKET EXHAUST BRAKE SEPARATION POINT
51
BRACKET , Replaced By: A6554310546
53
SCREW EXHAUST BRAKE SEPARATION POINT
56
LOOM TIE LINE MOUNTING
999
INSULATING HOSE PROTECTION AGAINST SCORING 10 MM, SILIKON / SILICONE, ORDER BY THE METER
999
INSULATING HOSE LINE MOUNTING, ORDER BY THE METER
999
FITTING FROM 3/2-WAY VALVE TO PRESSURE CONTROL VALVE
999
VALVE SHUTTLE VALVE, REPAIR IMPOSSIBLE
999
COUPLING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
PLUG COMPRESSED-AIR-LINE PLUG-CONNECTION
999
ELBOW FITTING
999
VALVE (3/2-WAY SOLENOID VALVE) WABCO
999
VALVE (3/2-WAY SOLENOID VALVE) EKS
999
SEAL RING
999
BRACKET 3/2-WAY SOLENOID VALVE
999
CONNECTOR DISTRIBUTOR TO CAB
999
SEAL RING LINE CONNECTION
999
HOLLOW SCREW HEATING CONNECTION
999
HOLLOW SCREW LINE CONNECTION
999
CLAMP SENSOR CABLE TO BRACKET
