Поз.
Артикул
Описание

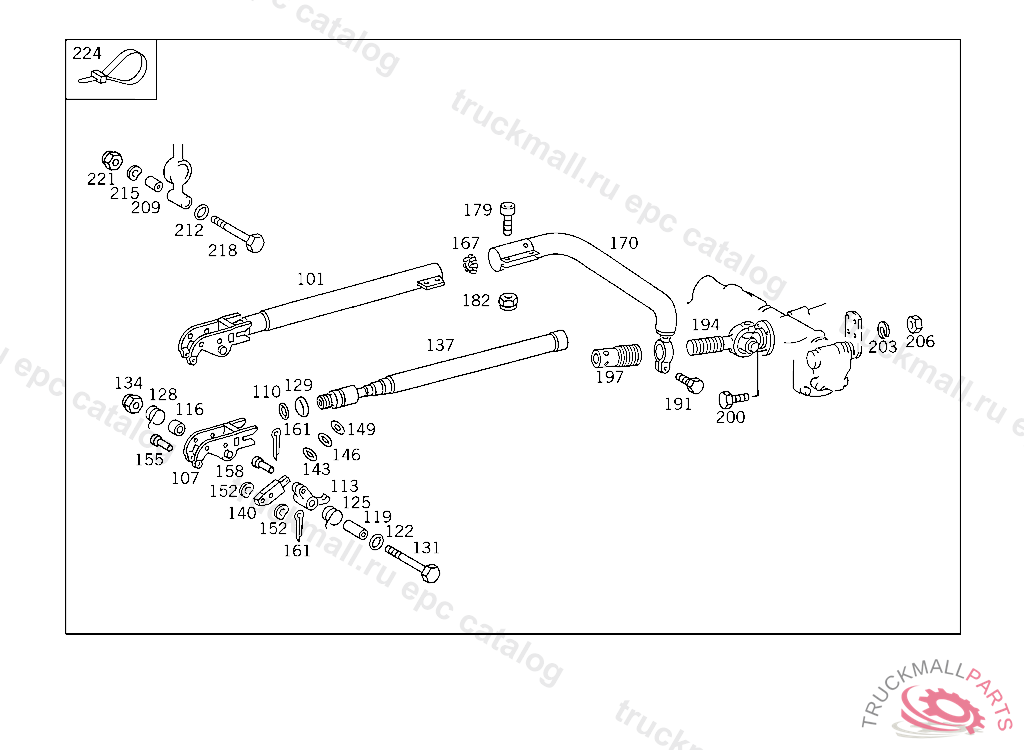

101
SHIFTING ROD (TELESCOPIC SHIFTING ROD)
107
ROD END HYDRAULIC RELEASE
110
SEAL RING HYDRAULIC RELEASE
113
PAWL SHIFTING ROD,5 443048
116
BUSHING PAWL TO ROD END,5 443048
116
BUSHING PAWL TO ROD END,5 443048
119
SPACER TUBE SHIFTING ROD TO SHIFT LEVER
122
ROUND CORD RING. SEAL RING ROD END
125
SPRING ROD END
128
SPRING ROD END
129
EXPANSION PLUG ROD END
131
SCREW SHIFTING ROD TO SHIFT LEVER
131
SCREW , Replaced By: N000933010192
134
NUT , Replaced By: N910113010000
134
NUT STRAP TO BRACKET
137
SHIFTING TUBE (TELESCOPIC TUBE)
140
SHIFTING CYLINDER HYDRAULIC RELEASE WABCO
140
SHIFTING CYLINDER HYDRAULIC RELEASE TECHNOMATIK
143
SEAL RING PISTON RINGS WABCO
146
SEAL RING SCREW FITTING WABCO
149
SEAL RING OUTSIDE WABCO
152
SPRING WASHER SHIFTING CYLINDER TO YOKE
155
PIN SHIFTING CYLINDER TO YOKE 8X45 MM
158
PIN SHIFTING CYLINDER TO PAWL 8X20 MM
161
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
161
COTTER PIN LEVER TO ROD
170
SHIFTING ROD , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6522606633
170
SHIFTING ROD ,K 131521
179
SCREW FRONT SHIFTING ROD TO REAR SHIFTING ROD
182
NUT , Replaced By: N910113010000
182
NUT STRAP TO BRACKET
191
SCREW CONNECTOR TO REAR SHIFTING ROD
194
JOINT SHIFTING ROD TO TRANSMISSION
194
JOINT SHIFTING ROD TO TRANSMISSION
197
CONNECTOR , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6172680028
200
SCREW SHIFTING ROD TO TRANSMISSION
203
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
206
NUT
209
SPACER TUBE SHIFTING ROD TO SHIFT LEVER
212
ROUND CORD RING. SEAL RING ROD END
215
SPRING WASHER SHIFTING ROD TO SHIFT LEVER
218
SCREW SHIFTING ROD TO SHIFT LEVER
218
SCREW , Replaced By: N000933010192
221
NUT , Replaced By: N910113010000
221
NUT STRAP TO BRACKET
224
LOOM TIE LINE MOUNTING 280 MM
999
SEAL RING LEVER BEARING
999
INSULATION CAB/TRANSMISSION COMPRESSED-AIR-LINE SEPARATION POINT
999
CONNECTOR REAR SHIFTING ROD TO CONNECTOR
999
BRACKET
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
SCREW , Replaced By: N304017008016
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
