Поз.
Артикул
Описание

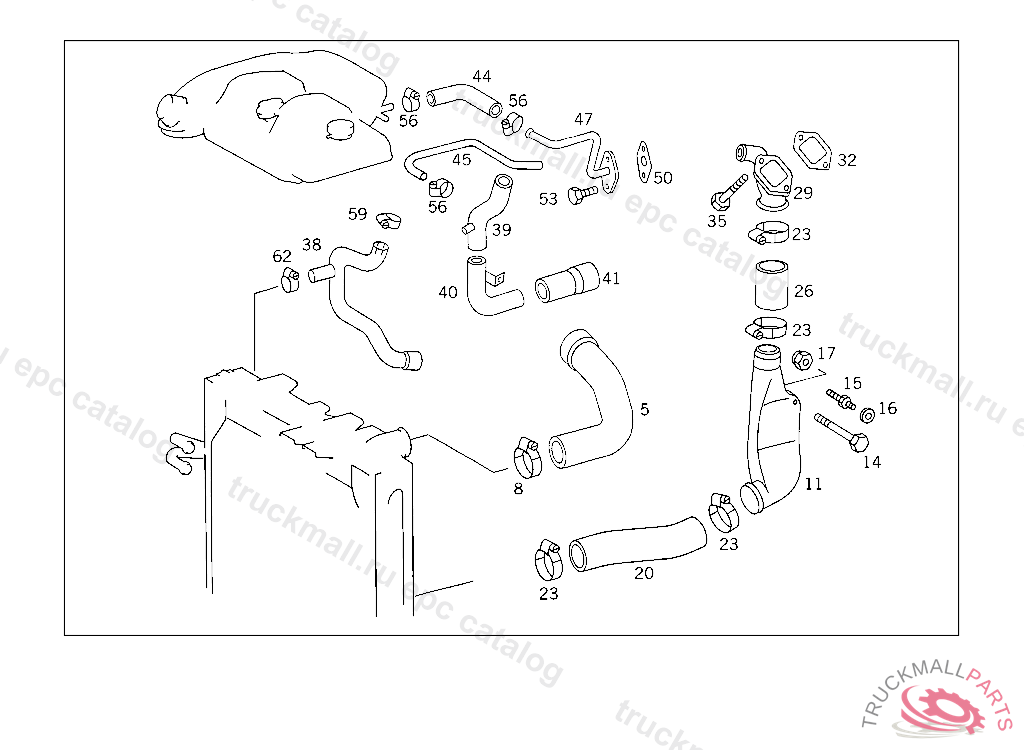

5
HOSE FROM RADIATOR TO THERMOSTAT
5
HOSE FROM RADIATOR TO THERMOSTAT
5
HOSE FROM RADIATOR TO THERMOSTAT
8
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
8
CLAMP HOSE 70-90X13 MM
8
CLAMP , Replaced By: N000000000674
8
CLAMP , Replaced By: A0059972990
11
PIPE ELBOW AT WATER PUMP,5 510518
11
PIPE ELBOW AT WATER PUMP,5 1935955 510517
14
SCREW BRACKET TO FRAME SIDE MEMBER
17
NUT , Replaced By: N910113010000
17
NUT STRAP TO BRACKET
20
HOSE FROM RADIATOR OUTLET TO WATER PUMP
23
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
23
CLAMP HOSE 70-90X13 MM
23
CLAMP , Replaced By: N000000000674
23
CLAMP , Replaced By: A0059972990
26
HOSE FROM RADIATOR OUTLET TO WATER PUMP, ORDER BY THE METER
29
CONNECTOR AT WATER PUMP
29
CONNECTOR AT WATER PUMP
32
GASKET CONNECTOR
32
GASKET CONNECTOR, Replaced By: A0002011080
32
GASKET CONNECTOR, Replaced By: A0002011280
32
GASKET CONNECTOR, Replaced By: A0002011180
35
SCREW , Replaced By: N304017010051
35
SCREW
35
SCREW END PIECE TO EXHAUST PIPE M 10X25
38
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
38
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
38
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
38
HOSE , Replaced By: A6565011482
39
HOSE
39
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
40
LINE FROM EXPANSION TANK TO WATER PUMP
40
LINE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
41
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
41
HOSE , Replaced By: A4355060535
45
HOSE DE-AERATION PIPE TO EXPANSION TANK
47
BREATHER PIPE ENGINE BREATHING
47
BREATHER PIPE FROM ENGINE TO EXPANSION TANK
50
GASKET. SEAL DE-AERATION PIPE TO ENGINE
53
SCREW END PIECE TO EXHAUST PIPE M 10X25
56
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
56
CLAMP HOSE TO FITTING AND TO OIL TANK
59
CLAMP , Replaced By: N000000000670
59
CLAMP
62
CLAMP , Replaced By: N000000000667
62
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
