Поз.
Артикул
Описание
20

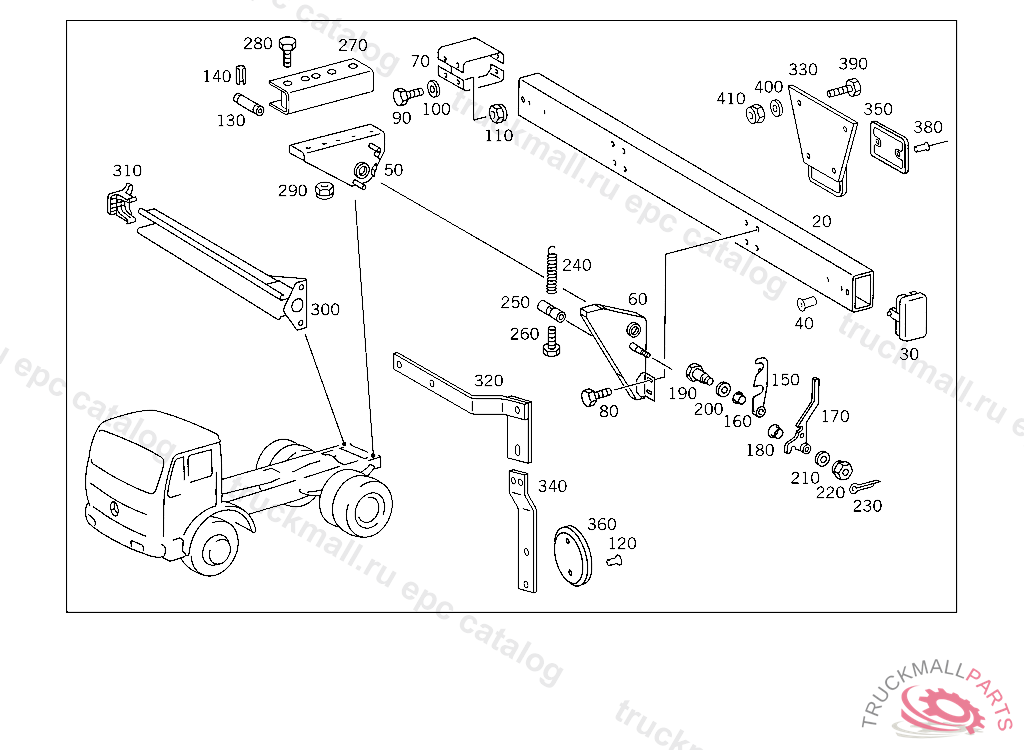

CROSS MEMBER UNDERRUN PROTECTION
20
CROSS MEMBER , Replaced By: A6525250248, +002A6555250038
30
CAP OVAL TO 652 525 02 48
30
CAP RECTANGULAR TO 615 525 03 48
40
EXPANSION RIVET UNDERRUN PROTECTION CROSS MEMBER
50
BRACKET CROSS MEMBER,RIGHT
50
BRACKET CROSS MEMBER,LEFT
60
SUPPORT CROSS MEMBER,RIGHT
60
SUPPORT CROSS MEMBER,RIGHT
60
SUPPORT CROSS MEMBER,LEFT
60
SUPPORT CROSS MEMBER,LEFT
70
STAY
70
STAY
80
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
90
SCREW BRACKET TO SIDE MEMBER
90
SCREW REAR EXHAUST PIPE TO MUFFLER
90
SCREW , Replaced By: N304017010002
100
WASHER STRUT TO CROSS MEMBER
100
WASHER , Replaced By: N007349010007
110
NUT STRAP TO BRACKET
110
NUT , Replaced By: N910113010000
120
RIVET REFLECTOR TO UNDERRUN PROTECTION
130
PIN BRACKET TO SUPPORT
140
CLAMPING PIN BRACKET TO SUPPORT
140
CLAMPING SLEEVE , Replaced By: N308752008000
150
LATCH
160
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
170
LEVER LOCKING MECHANISM
180
BUSHING , Replaced By: A1242920050
180
BUSHING BRAKE PEDAL
190
SCREW LATCH TO LEVER
200
WASHER
210
WASHER , Replaced By: N000125015019
210
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
220
NUT LEVER TO SUPPORT
230
COTTER PIN LEVER TO SUPPORT
240
SPRING
250
PIN SPRING TO SUPPORT
260
SCREW UNDERRUN PROTECTION AND BRACKET TO FRAME M 10X70
270
STAY SUPPORT TO SIDE MEMBER
270
STAY SUPPORT TO SIDE MEMBER
280
SCREW , Replaced By: A9429901304
280
SCREW , Replaced By: N308676014012
280
SCREW FRONT SPRING REAR BRACKET TO SIDE MEMBER M 14X1.5X75
280
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
280
SCREW SUPPORT TO SIDE MEMBER M 14X120, TO BE ADAPTED DURING ASSEMBLY
280
SCREW SUPPORT TO SIDE MEMBER M 14X95
280
SCREW SUPPORT TO SIDE MEMBER M 14X100
280
SCREW SUPPORT TO SIDE MEMBER M 14X45
280
SCREW UNDERRUN PROTECTION AND BRACKET TO FRAME M 14X1.5X38
280
SCREW , Replaced By: A9429901304
280
SCREW SUPPORT TO SIDE MEMBER M 14X110
280
SCREW , Replaced By: N308765014008
280
SCREW PARTICLE FILTER M14X1,5X105
280
HEXAGON HEAD BOLT. SCREW SUPPORT TO SIDE MEMBER M 14X100
280
SCREW APPARATUS SUPPORT TO FRAME M 14X1.5X85
280
SCREW MOUNTING TO CONSOLE M 14X35
280
SCREW , Replaced By: N308676014008
280
SCREW APPARATUS SUPPORT TO FRAME
290
NUT , Replaced By: N910113014000
290
NUT STEERING SUPPORT TO FRAME
300
BRACKET RIGHT TAIL LAMP
310
COVERING AT TAIL LAMP BRACKET
320
BRACKET LEFT REFLECTOR,5 351291
320
BRACKET RIGHT REFLECTOR,5 351291
330
BRACKET , Replaced By: A6555400373
330
BRACKET WITH REFLECTOR
340
BRACKET REFLECTOR
350
REFLECTOR
360
REFLECTOR
380
RIVET REFLECTOR BRACKET TO TAIL LAMP BRACKET
390
SCREW , Replaced By: N304017005002
390
SCREW CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP. M 5X30
390
SCREW LEVER TO SHAFT
390
SCREW JUNCTION BOX TO BRACKET
400
WASHER , Replaced By: N000433005304
400
WASHER BOOT TO CAB FLOOR
410
NUT TWO-WAY VALVE TO BRACKET
999
BRACKET LEFT TAIL LAMP
999
BRACKET RIGHT TAIL LAMP
999
BRACKET REFLECTOR
