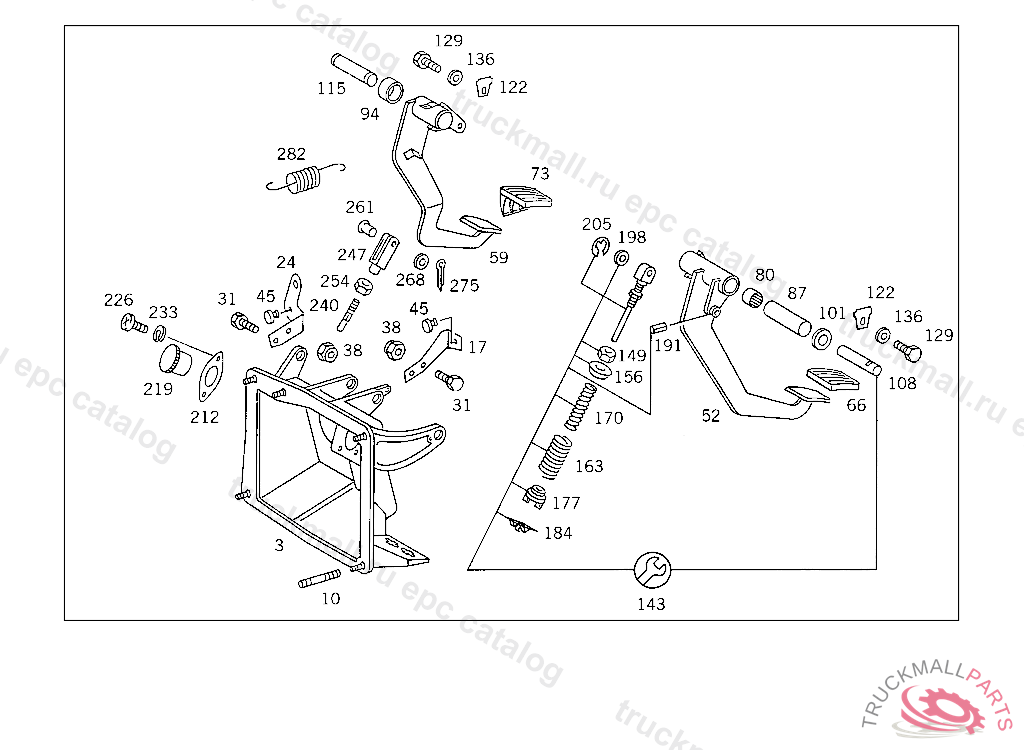

Поз.
Артикул
Описание
3
BEARING BRACKET CLUTCH PEDAL AND BRAKE PEDAL
10
STUD
17
STOP CLUTCH PEDAL,5 957975
24
STOP BRAKE PEDAL
31
SCREW COVER PLATE TO BRACKET
38
NUT PUMP TO BRACKET
38
NUT , Replaced By: N913004006001
45
STOP CLUTCH PEDAL AND BRAKE PEDAL
52
PEDAL , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 957975, Replaced By: A6572900516
59
PEDAL BRAKE
66
PAD CLUTCH PEDAL
73
PAD BRAKE PEDAL
80
NEEDLE BEARING CLUTCH PEDAL
80
NEEDLE BEARING CLUTCH PEDAL
87
SPACER TUBE CLUTCH PEDAL
94
BUSHING BRAKE PEDAL
94
BUSHING , Replaced By: A1242920050
101
WASHER CLUTCH PEDAL TO BEARING BRACKET
108
PIN CLUTCH PEDAL TO BEARING BRACKET
115
PIN BRAKE PEDAL TO BEARING BRACKET
122
LOCK CLUTCH AND BRAKE PEDAL PINS TO BEARING BRACKETS
129
SCREW PUMP TO BRACKET
129
SCREW , Replaced By: N304017006016
136
WASHER COMPRESSED AIR LINE TO BRACKET
136
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
143
ROD DEAD CENTER SPRING
143
REPAIR KIT , Replaced By: A6452900439, +001A0002910074, +001A6552910074, +001A3092910091, +001A6459880178, +001A3819930201, +001A3819930601
149
NUT PUSH ROD
149
NUT PUSH ROD
149
NUT , Replaced By: N308675010000
156
SPRING RETAINER SPRING TO PUSH ROD
163
SPRING (DEAD CENTER SPRING) 37 MM
170
SPRING (DEAD CENTER SPRING) 23.2 MM
177
SPRING RETAINER SPRING TO PUSH ROD
184
CLIP SPRING TO PUSH ROD
191
CLAMPING PIN PUSH ROD TO CLUTCH PEDAL
191
CLAMPING PIN , Replaced By: N308748003002
198
WASHER BRACKET TO FENDER BRACKET
205
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
212
FLANGE AT PEDAL ASSEMBLY BEARING BRACKET
219
PLUG FLANGE
226
SCREW SWITCH TO ENGINE
233
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
240
ROD TWO-CIRCUIT-BRAKE-VALVE CONTROL
240
ROD , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6732920032, +001N071752008003
247
YOKE OPERATING ROD,K 202311
254
NUT
254
NUT , Replaced By: N304035008001
261
PIN ROD TO BRAKE PEDAL
268
WASHER BRACKET TO CROSS MEMBER
275
COTTER PIN LEVER TO ROD
275
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
282
SPRING CLUTCH-PEDAL/BRAKE-PEDAL RESET
999
HOSE BRAKE VALVE,CONNECTION: "30"
999
PAD , Replaced By: N040621014200
999
INSULATING HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
