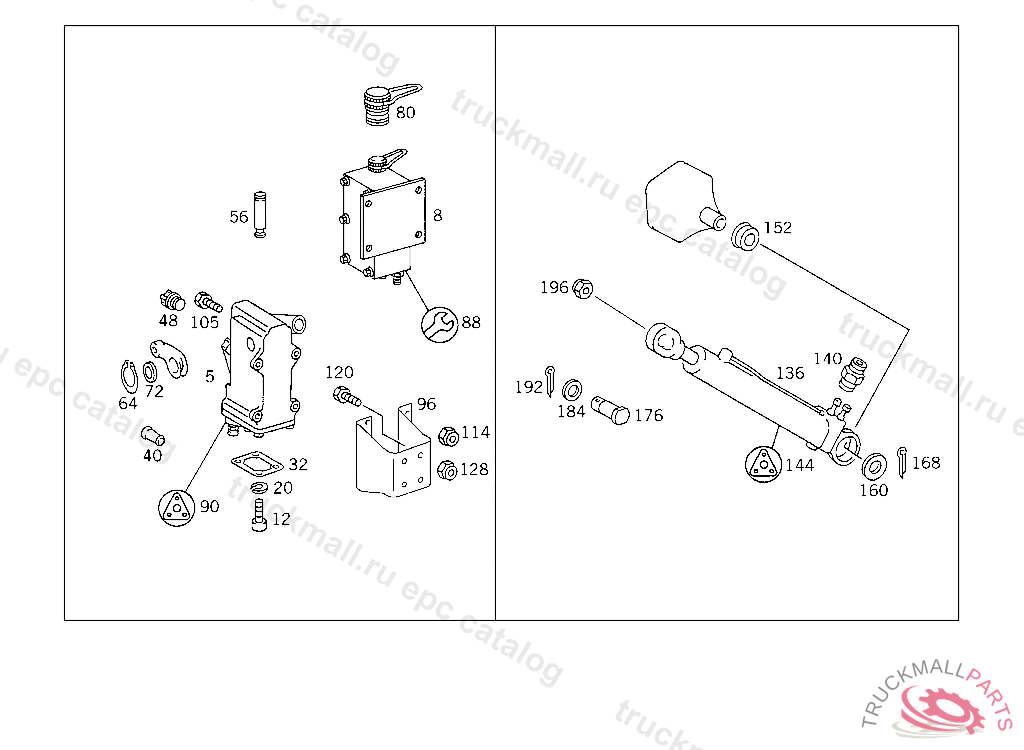

Поз.
Артикул
Описание
5
PUMP (HAND PUMP) WEBER
5
PUMP (HAND PUMP) WEBER
5
PUMP (HAND PUMP), FOR COMPONENT PARTS SEE SPARE PARTS LIST
5
PUMP (HAND PUMP), FOR COMPONENT PARTS SEE SPARE PARTS LIST
5
PUMP (HAND PUMP) WEBER
5
PUMP (HAND PUMP) WEBER,5 942827
5
PUMP (HAND PUMP) WEBER,5 942827
5
PUMP (HAND PUMP) POWER PACKER
8
PUMP (HAND PUMP) POWER PACKER,4 733732
8
PUMP , Replaced By: A0005537901, +001A0015534205
8
PUMP (HAND PUMP) WEBER
12
SCREW
12
SCREW , Replaced By: N000000000190
12
SCREW , Replaced By: N000912008201
12
SCREW BOX COVER TO 000 553 79 01,000 553 89 01
20
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
32
GASKETHUNGER
40
FILTER
40
FILTER
48
VALVETO 000 553 79 01,WEBER
48
VALVETO 000 553 89 01
48
VALVETO 000 553 88 01
48
VALVETO 000 553 89 01
56
PISTONTO 000 553 79 01,WEBER
56
PISTONTO 000 553 89 01
64
LOCK RING
64
LOCK RING
72
FITTED WASHER
72
FITTED WASHER
80
SCREW
80
SCREW
80
SCREW OIL FILLING TO 000 553 89 01
80
SCREWTO 000 553 65 01,000 553 69 01,
80
SCREWTO 000 553 65 01,000 553 69 01,
80
SCREWTO 000 553 65 01,000 553 69 01,
80
SCREW OIL FILLING HUNGER
88
REPAIR KIT HAND PUMP TO 000 553 65 01,000 553 69 01,
88
REPAIR KIT HAND PUMP TO 000 553 65 01,000 553 69 01,
90
GASKET KIT HAND PUMP
90
GASKET KIT HAND PUMP
90
GASKET KIT HAND PUMP TO 000 553 88 01
90
GASKET KIT HAND PUMP TO 000 553 68 01
96
BRACKET HAND PUMP,5 942827
96
BRACKET HAND PUMP
96
BRACKET HAND PUMP
96
BRACKET HAND PUMP
96
BRACKET HAND PUMP
96
BRACKET HAND PUMP
96
BRACKET HAND PUMP,5 942826
96
MOLDED PIECE HAND PUMP
96
BRACKET HAND PUMP
96
BRACKET HAND PUMP,5 942827
105
SCREW REAR EXHAUST PIPE TO MUFFLER
105
SCREW BRACKET TO SIDE MEMBER
105
SCREW BRACKET TO SIDE MEMBER
105
SCREW , Replaced By: N304017010002
105
SCREW REAR EXHAUST PIPE TO MUFFLER
114
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
114
NUT , Replaced By: N913023010002
114
NUT STRAP TO BRACKET
114
NUT , Replaced By: N910113010000
120
SCREW , Replaced By: N308676014020
120
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
120
SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
120
SCREW , Replaced By: N304017008040
120
SCREW BRACKET TO SIDE MEMBER
120
SCREW BRACKET TO SIDE MEMBER
120
SCREW , Replaced By: N304017008034
120
SCREW BRACKET TO CROSS CONNECTION STRUT
128
NUT , Replaced By: N910113014001
128
NUT BRACKET TO SIDE MEMBER
128
NUT , Replaced By: N913004008001
128
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
136
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING POWER PACKER
136
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING POWER PACKER
136
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING WEBER
136
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING WEBER
136
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING WEBER
136
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING WEBER
136
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING WEBER
136
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING POWER PACKER
136
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING POWER PACKER
136
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING POWER PACKER
136
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING
136
CYLINDER , Replaced By: A0015534205, +001A0005537901
136
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING WEBER
140
FITTING
144
GASKET KIT HYDRAULIC CYLINDER POWER PACKER
144
GASKET KIT HYDRAULIC CYLINDER POWER PACKER
144
GASKET KIT HYDRAULIC CYLINDER WEBER
144
GASKET KIT HYDRAULIC CYLINDER POWER PACK
144
GASKET KIT HYDRAULIC CYLINDER
144
GASKET KIT , Replaced By: A0015535005
144
GASKET KIT HYDRAULIC CYLINDER WEBER
144
GASKET KIT HYDRAULIC CYLINDER POWER PACK
144
GASKET KIT HYDRAULIC CYLINDER HUNGER
144
GASKET KIT HYDRAULIC CYLINDER
152
BUSHING HYDRAULIC CYLINDER TO BEARING BRACKET
160
WASHER HYDRAULIC CYLINDER TO CAB
160
WASHER HYDRAULIC CYLINDER TO CAB
160
WASHER HYDRAULIC CYLINDER TO CAB
168
COTTER PIN6,3X36 MM
176
PIN HYDRAULIC CYLINDER TO SWIVEL ARM
184
WASHER HYDRAULIC CYLINDER TO SWIVEL ARM
192
COTTER PIN HYDRAULIC CYLINDER TO SWIVEL ARM
192
COTTER PIN HYDRAULIC CYLINDER TO SWIVEL ARM
196
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
196
NUT COMBINATION CYLINDER TO BEARING BRACKET
196
NUT COMBINATION CYLINDER TO BEARING BRACKET
999
GUIDEWEBER,TO 001 553 45 05
999
FITTING 3/2-WAY VALVE,CONNECTION: "30"
999
RUBBER BUFFER TO PLUG THE FREE CONNECTIONS
999
BRACKET HIGH PRESSURE HOSE TO CAB
999
BRACKET HIGH PRESSURE HOSE TO CAB
999
HOSE FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL
999
SCREW-IN FITTING , Replaced By: A0029978472
999
SEAL RING LINE CONNECTION
