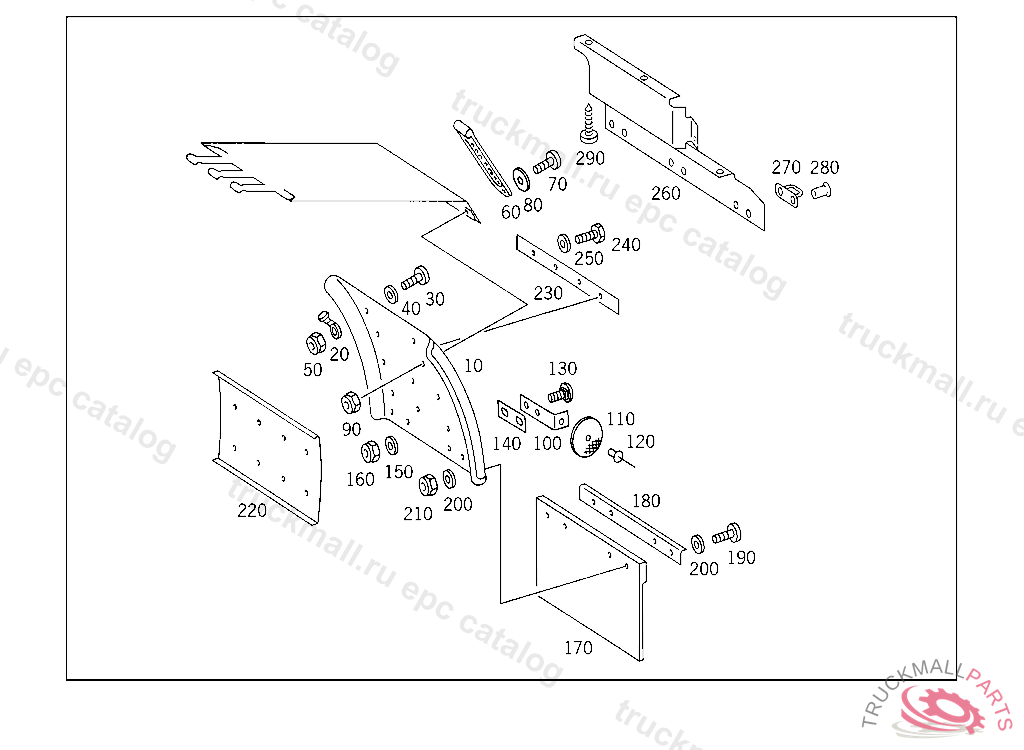

Поз.
Артикул
Описание
10
FENDER LEFT
10
FENDER RIGHT
20
PIN COVERING AND PIN TO FENDER HALF SHELL
30
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
40
WASHER ELECTRIC CABLE TO CROSS MEMBER
40
WASHER COMPRESSED AIR LINE TO BRACKET
50
NUT , Replaced By: N913004006001
50
NUT PUMP TO BRACKET
60
BRACKET COVERING TO FRONT FENDER
70
SCREW , Replaced By: N000000001149
70
SCREW , Replaced By: A0029903712
70
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
80
WASHER COMPRESSED AIR LINE TO BRACKET
80
WASHER , Replaced By: N009021006208
90
NUT , Replaced By: N913004006001
90
NUT PUMP TO BRACKET
100
BRACKET REFLECTOR TO FENDER,5 952572
110
REFLECTOR FENDER
110
REFLECTOR AMBER
120
RIVET REFLECTOR TO BRACKET,5 952572
130
SCREW BRACKET TO REAR FENDER
140
SHIM BRACKET TO FENDER,5 952572
150
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
150
WASHER COMPRESSED AIR LINE TO BRACKET
160
NUT , Replaced By: N913004006001
160
NUT PUMP TO BRACKET
170
SPLASH GUARD REAR FENDER
180
RAIL
180
RAIL
190
SCREW , Replaced By: N007985006581
190
SCREW CLAMP TO BRACKET
200
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
200
WASHER COMPRESSED AIR LINE TO BRACKET
210
HEXAGON NUT. NUT BRACKET TO FRAME
220
REINFORCEMENT
230
BRACKET HEATING PIPE
240
SCREW BRACKET TO CROSS CONNECTION STRUT
240
SCREW , Replaced By: N304017008034
250
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
250
WASHER COMPRESSED AIR LINE TO BRACKET
260
BRACKET RIGHT
260
BRACKET LEFT
270
TARPAULIN BOW
280
RIVET
290
SCREW BRACKET TO CAB
290
SHEET METAL SCREW ,5 540607, Replaced By: A0009845529
999
COVER ENGINE COVERING, FOR USE WITH SHORT MERCEDES-BENZ CAB
999
SHIM COVER PLATE TO CAB REAR PANEL, FOR USE WITH SHORT MERCEDES-BENZ CAB
999
SUPPORT LEFT FENDER, FOR USE WITH SHORT MERCEDES-BENZ CAB
999
SUPPORT RIGHT FENDER, FOR USE WITH SHORT MERCEDES-BENZ CAB
