Mercedes N000912008119 - Болт

1722 L,1733 L,1834 L, 2534 LL 652.478

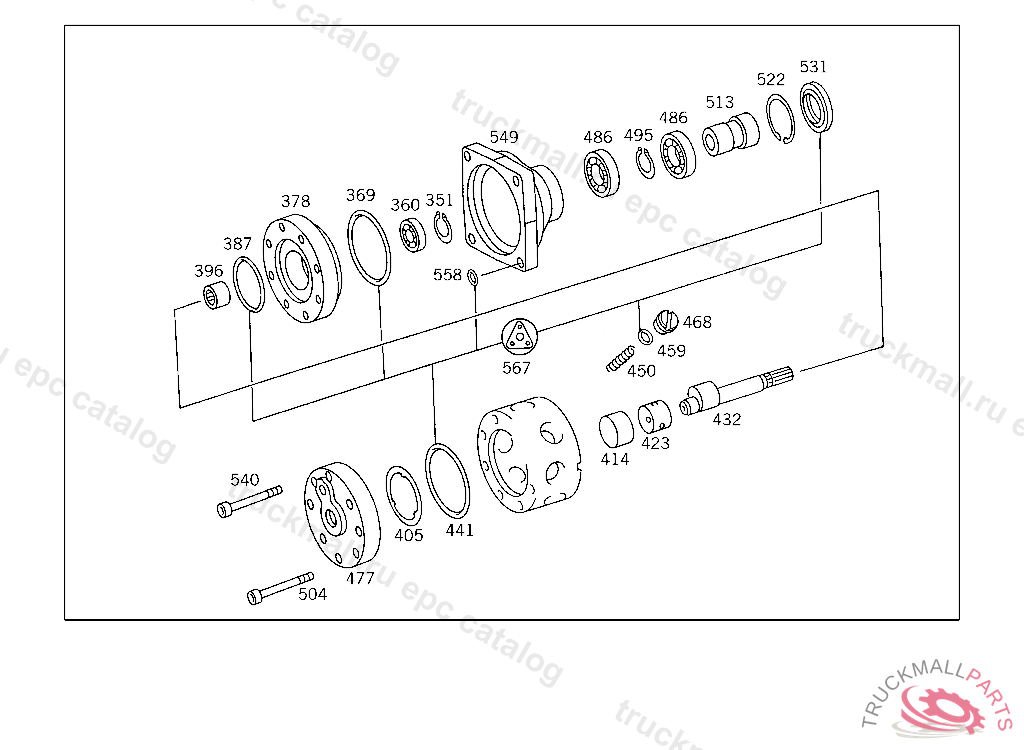

46 STEERING - 001 INSTALLATION OF STEERING HYDRAULIC SYSTEM IL.4

Поз.
Артикул
Описание
351
N000471020001
LOCK RING
360
N000625900200
GROOVED BALL BEARING
369
A0239979748
SEAL RING P.T.O.
369
A0109977348
SEAL RING , Replaced By: A0239979748
378
A0004665405
COVER
387
A0119978948
SEAL RING
396
A0049819510
NEEDLE BEARING
405
A0004660093
SPRING
414
A0004661150
BUSHINGTO 001 466 16 01
423
A0004660750
BUSHING
432
A0004661420
DRIVE SHAFTTO 001 466 16 01
441
A0119979048
SEAL RING
450
A0059934001
SPRING
459
A0069978648
SEAL RING
468
A0004660871
SCREW
477
A0004669505
COVER
486
N000625506007
GROOVED BALL BEARING
495
N000471035002
LOCK RING
504
N000912010164
SCREWTO 001 466 16 01
513
A0004660858
CONNECTOR
522
N000472062002
LOCK RING
531
A0149972547
SEAL RING
540
N000912008119
SCREWTO 001 466 16 01
549
A0004661145
FLANGE
558
A0139976348
SEAL RING
567
A0004600861
GASKET KIT POWER STEERING PUMP AT TRANSMISSION TO 001 466 16 01
999
A0001314250
BUSHING
999
A0019903170
T-FITTING SUPPLY LINE FOR TRANSMISSION
999
A0039971672
FITTING (DELIVERY LINE),FROM PUMP TO STEERING, Replaced By: A9329970772
999
A0059979472
FITTINGNO.II, 12 MM
999
A0809972472
FITTING BEARING BRACKET TO AIR COMPRESSOR HOUSING
999
A3609970072
FITTING , Replaced By: A0039971672
999
A4031310450
BUSHING , Replaced By: A0001314250
999
A4031550250
BUSHING
999
A4411300045
FLANGE TO PLUG AIR COMPRESSOR BEARING FLANGE
999
A6999970089
COUPLING BEARING BRACKET TO AIR COMPRESSOR HOUSING
999
A6999970472
FITTING , Replaced By: A0809972472, +001A6999970189
999
A9329970772
FITTING (DELIVERY LINE),FROM PUMP TO STEERING
