Поз.
Артикул
Описание

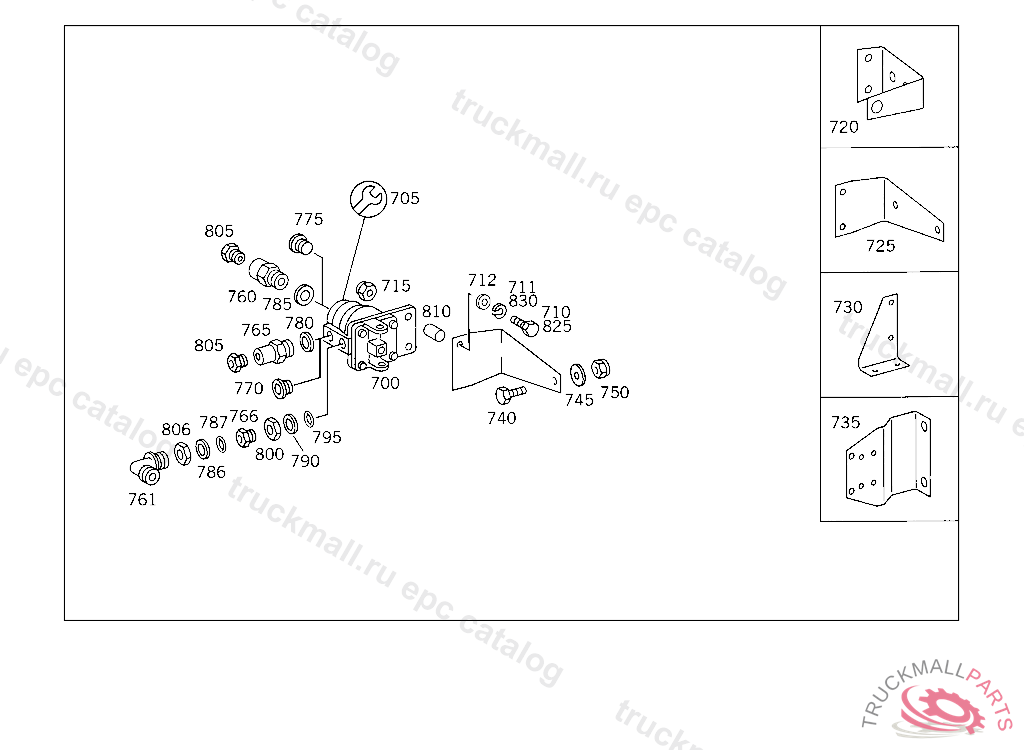

700
VALVE LOAD/NO-LOAD, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
700
VALVE LOAD/NO-LOAD, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
700
VALVE LOAD/NO-LOAD, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
700
VALVE LOAD/NO-LOAD, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
705
REPAIR KIT LOAD/NO-LOAD VALVE
705
REPAIR KIT LOAD/NO-LOAD VALVE
710
SCREW , Replaced By: N304017008021
710
SCREW PIPE CLAMP
710
SCREW , Replaced By: N304017008034
710
SCREW BRACKET TO CROSS CONNECTION STRUT
710
SCREW BRACKET TO CROSS CONNECTION STRUT
711
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
712
WASHER , Replaced By: N000125008443
712
WASHER EXHAUST MUFFLER TO STRAP
715
NUT , Replaced By: N913004008001
715
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
715
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
720
BRACKET LOAD/NO-LOAD VALVE
720
BRACKET LOAD/NO-LOAD VALVE
720
BRACKET LOAD/NO-LOAD VALVE
725
BRACKET LOAD/NO-LOAD VALVE, NOT USED
730
BRACKET LOAD/NO-LOAD VALVE
735
BRACKET , Replaced By: A6544310740
735
BRACKET LOAD/NO-LOAD VALVE
740
SCREW , Replaced By: N304017008034
740
SCREW BRACKET TO CROSS CONNECTION STRUT
740
SCREW END PIECE TO EXHAUST PIPE M 10X25
740
SCREW BRACKET TO CROSS CONNECTION STRUT
740
SCREW , Replaced By: N304017008021
740
SCREW PIPE CLAMP
740
SCREW , Replaced By: N304017008021
740
SCREW PIPE CLAMP
740
SCREW PIPE CLAMP
740
SCREW BRACKET TO CROSS CONNECTION STRUT
745
WASHER , Replaced By: N009021008213
745
WASHER BRACKET TO LEFT SIDE MEMBER
745
WASHER , Replaced By: N000125010532
745
WASHER EXHAUST MUFFLER TO STRAP
745
WASHER , Replaced By: N000125008443
745
WASHER BRACKET TO FRAME
745
WASHER BRACKET TO FRAME
745
WASHER , Replaced By: N000125017016
745
WASHER BRACKET TO LEFT SIDE MEMBER
745
WASHER RADIATOR TO RUBBER MOUNTING
750
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
750
NUT STRAP TO BRACKET
750
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
750
NUT STRAP TO BRACKET
750
NUT , Replaced By: N910113010000
750
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
750
NUT , Replaced By: N913004008001
760
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
760
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
760
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "40",5 509133
760
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
760
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
760
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
760
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
760
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
760
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
760
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "40",5 509133
760
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
761
ELBOW FITTING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
765
FITTING LINE CONNECTION
765
FITTING LINE CONNECTION
766
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
770
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
770
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
770
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
770
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
770
SCREW PLUG , Replaced By: N000908012009
775
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
775
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
775
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
775
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
775
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
775
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
775
SCREW PLUG , Replaced By: N000908022011
775
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
780
SEAL RING LINE CONNECTION
780
SEAL RING LINE CONNECTION
780
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
780
SEAL RING LINE CONNECTION
780
SEAL RING LINE CONNECTION
785
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
785
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
785
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
785
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
785
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
785
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
785
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
786
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
786
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
787
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
790
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
790
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
790
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
790
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
790
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
795
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
795
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
795
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
795
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
800
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
800
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
800
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
805
SCREW. UNION SCREW LINE CONNECTION
805
SCREW. UNION SCREW LINE CONNECTION
805
SCREW. UNION SCREW LINE CONNECTION
805
SCREW. UNION SCREW LINE CONNECTION
805
SCREW. UNION SCREW LINE CONNECTION
805
SCREW. UNION SCREW , Replaced By: A0009973734
805
SCREW. UNION SCREW LINE CONNECTION
805
SCREW. UNION SCREW LINE CONNECTION
805
SCREW. UNION SCREW LINE CONNECTION
806
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
810
GUIDE BUSHING TWO-WAY VALVE TO FRAME
810
SPACER TUBE , Replaced By: A3094310249
825
SCREW PIPE CLAMP
825
SCREW , Replaced By: N304017008021
830
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
ADAPTER FITTING LINE CONNECTION TO ENGINE
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
JOINT
999
THRUST RING CHECK VALVE TO AIR RESERVOIR
999
CONNECTOR COMPRESSED AIR PIPING,YB227219
999
T-FITTING LEFT AND RIGHT BRAKE HOSES
999
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
999
FITTING SHUTTLE VALVE
999
VALVE (3/2-WAY SOLENOID VALVE)
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 9 MM
999
T-FITTING HOSE WIDTH, 9 MM, TO M 22, M 12X1.5
999
T-FITTING HOSE WIDTH, 9 MM, TO M 22, M 12X1.5
999
VALVE (REDUCTION VALVE)
999
FITTING RELAY VALVE,CONNECTION: "40"
999
CLAMP BRAKE HOSE
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
WASHER PROTECTIVE PLATE TO EXHAUST PIPE
999
GROMMET FOR PASSAGE OF LINE
999
BRACKET COMPRESSED AIR LINE TO CONTROL ARM,5 927466
999
LOCK FRONT AXLE,LEFT,K 009080
999
BRACKET DIAPHRAGM CYLINDER
999
CLAMP BRAKE HOSE
999
BRAKE HOSE FROM TWO-WAY VALVE TO TRISTOP CYLINDER 500 MM,K 181361
999
BRAKE HOSE FROM TWO-WAY VALVE TO TRISTOP CYLINDER 600 MM,K 181361
999
BRAKE HOSE FROM TWO-WAY VALVE TO TRISTOP CYLINDER 700 MM,K 181361
999
BRAKE HOSE REAR AXLE BRAKE CYLINDER 700 MM,K 180897
999
BRACKET
999
BRACKET TRAILING AXLE
999
BRACKET LOAD/NO-LOAD VALVE
999
BRACKET COMPRESSED AIR LINES
999
STRAP DIAPHRAGM CYLINDER
999
BRACKET REGULATING SOLENOID VALVE,5 953054
999
BRACKET FRONT AXLE,LEFT
999
BRACKET FRONT AXLE,RIGHT
999
TANK RECESS. T-FITTING LINE CONNECTION
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
ANGLE
999
BRACKET REDUCTION VALVE
999
SCREW HOLLOW RUBBER SPRING TO CAB,5 956657
999
SCREW BRACKET TO SIDE MEMBER M 12X38
999
SCREW , Replaced By: N308676016006
999
INSULATING HOSE PROTECTION AGAINST SCORING, ORDER BY THE METER
999
NUT CHECK VALVE TO AIR RESERVOIR
999
FITTING , Replaced By: A0029971372
999
NUT SHIFTING ROD UNLOCKING HIGH-PRESSURE HOSE
999
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
999
HOLLOW SCREW LINE CONNECTION
