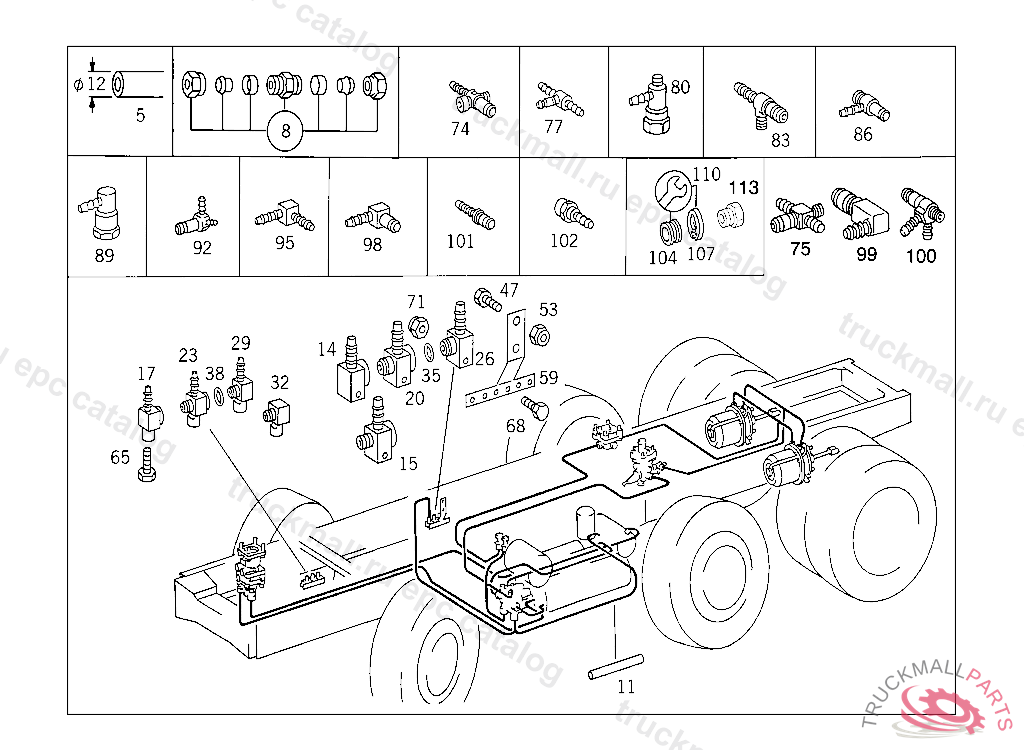

Поз.
Артикул
Описание
5
HOSE , Replaced By: A0009872827
5
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
8
FITTING (PARTS KIT),LINE RUPTURE
11
INSULATING HOSE AIR DEHYDRATOR, ORDER BY THE METER
14
CONNECTOR , Replaced By: A0019903978
14
CONNECTOR DISTRIBUTOR TO FRAME
15
CONNECTOR HOSE WIDTH, 9 MM,TO M22
17
CONNECTOR DISTRIBUTOR TO CAB
23
CONNECTOR DISTRIBUTOR TO CAB
26
CONNECTOR DISTRIBUTOR TO FRAME
29
CONNECTOR DISTRIBUTOR TO CAB
32
CONNECTOR DISTRIBUTOR TO CAB
35
SEAL RING , Replaced By: A0229973948
35
SEAL RING CONNECTOR 11.8X2 MM
38
SEAL RING
47
SCREW BRACKET TO FRAME
53
NUT SUPPORT TO SIDE MEMBER
59
BRACKET CONNECTOR TO FRAME
65
SCREW EXHAUST BRAKE SEPARATION POINT
68
SCREW DELIVERY AND SUCTION LINES TO ENGINE, FRONT M 6X35
71
NUT , Replaced By: N913004006001
71
NUT PUMP TO BRACKET
74
DISTRIBUTOR LINE CONNECTION
75
DISTRIBUTOR HOSE WIDTH, 9 MM,TO M 22
77
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
80
T-FITTING , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0049907570
80
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
83
T-FITTING HOSE WIDTH, 9 MM,TO M 22
86
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
89
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
92
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
95
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
98
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
101
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
104
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
107
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
110
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
113
SCREW. UNION SCREW LINE CONNECTION
