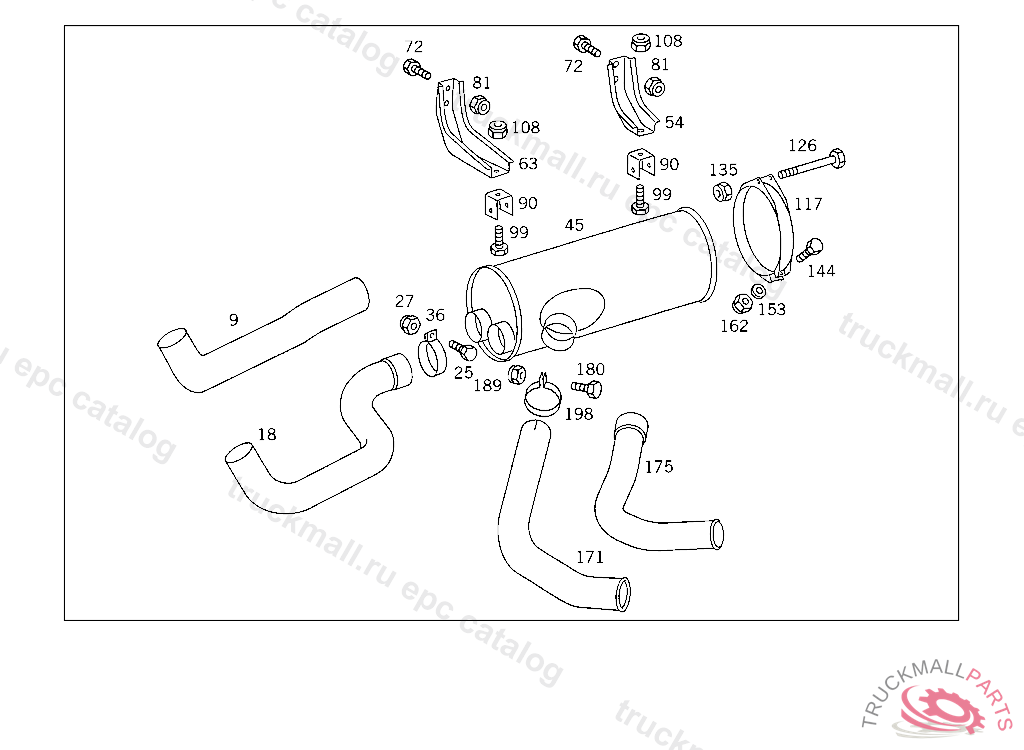

Поз.
Артикул
Описание
9
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER
18
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER
18
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER
25
SCREW , Replaced By: N304017010002
25
SCREW BRACKET TO SIDE MEMBER
27
NUT , Replaced By: N910113010000
27
NUT STRAP TO BRACKET
36
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
45
EXHAUST MUFFLER
54
CONSOLE EXHAUST MUFFLER TO SIDE MEMBER
63
CONSOLE EXHAUST MUFFLER TO SIDE MEMBER
72
SCREW CONSOLE TO SIDE MEMBER
81
NUT SUPPORT TO SIDE MEMBER
90
BRACKET AT SUPPORT
99
SCREW , Replaced By: N304017010043
99
SCREW BRACKET TO CONSOLE
108
NUT STRAP TO BRACKET
108
NUT , Replaced By: N910113010000
117
STRAP EXHAUST MUFFLER TO BRACKET
126
SCREW
126
SCREW , Replaced By: N304017010051
135
NUT , Replaced By: N910113010000
135
NUT STRAP TO BRACKET
144
SCREW EXHAUST MUFFLER TO STRAP
153
WASHER , Replaced By: N000125008443
153
WASHER EXHAUST MUFFLER TO STRAP
162
NUT STRAP TO BRACKET
171
END PIECE
171
REAR EXHAUST PIPE , Replaced By: A6554922914
175
EXHAUST PIPE REAR
175
REAR EXHAUST PIPE REAR
175
REAR EXHAUST PIPE REAR
175
EXHAUST PIPE REAR
180
SCREW REAR EXHAUST PIPE TO MUFFLER
189
NUT STRAP TO BRACKET
189
NUT , Replaced By: N910113010000
198
CLAMP , Replaced By: N071555120502
198
CLAMP , Replaced By: N071555100501
198
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
198
CLAMP EXHAUST PIPE TO BRACKET
999
FLEXIBLE METAL TUBE FRONT LEFT
999
COLLAR (SLIDING COLLAR)
999
EXHAUST PIPE FRONT,REAR RIGHT PART
