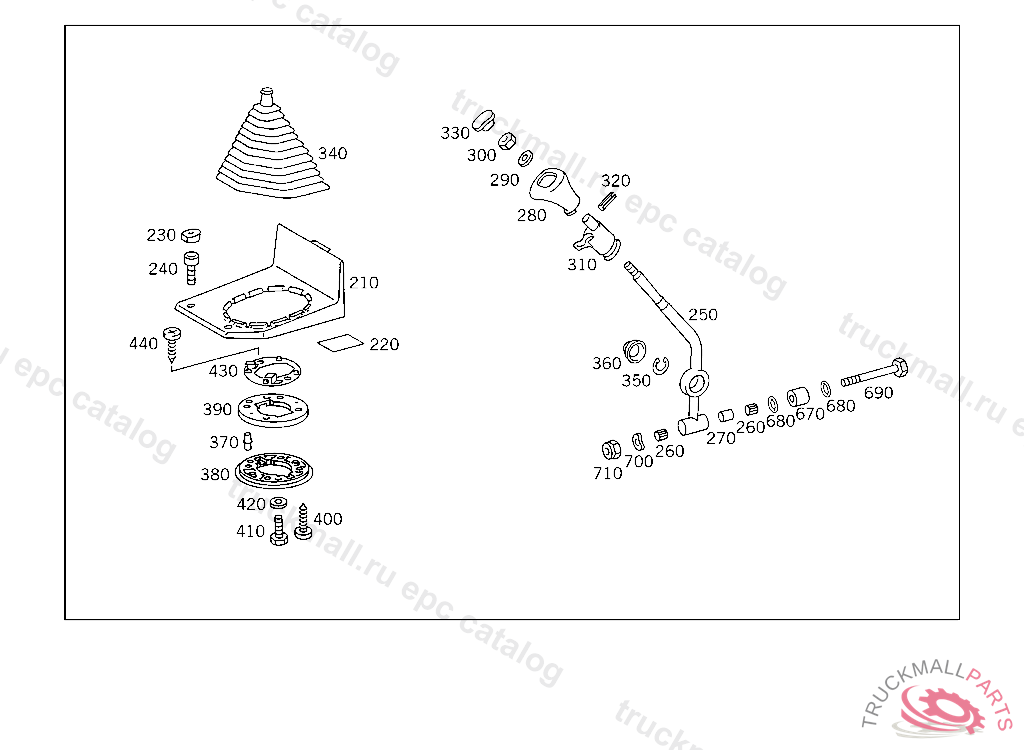

Поз.
Артикул
Описание
210
COVERING BOOT TO CAB
220
INSULATION CAB/TRANSMISSION COMPRESSED-AIR-LINE SEPARATION POINT
230
COVER COVERING TO CAB
240
SCREWM 6X16
240
SCREW , Replaced By: A1249900520
250
SHIFT LEVER
260
BUSHING PAWL TO ROD END,5 443047
270
BUSHING
280
HANDLE (SHIFT LEVER HANDLE)
290
WASHER , Replaced By: N000125010532
290
WASHER RADIATOR TO RUBBER MOUNTING
300
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
300
NUT , Replaced By: N308673010000
310
VALVE GEARSHIFT LEVER LOWER PART WABCO
310
VALVE SHIFT LEVER HERION
320
CLAMPING SLEEVE (SHIFT LEVER VALVE)
330
COVER 6-SPEED,SHIFT LEVER KNOB
340
BOOT SHIFT LEVER
350
LOCK RING SHIFT LEVER BEARING
360
BOOT SHIFT LEVER BEARING
370
BUSHING COMPRESSED AIR LINE THRU CAB FLOOR,K040603
380
BRACKET SHIFT LEVER LOWER PART,K 040604
390
BRACKET SHIFT LEVER UPPER PART,K 040604
400
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
400
SHEET METAL SCREW BRACKET TO FLOOR PLATE
410
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
410
SCREW , Replaced By: A0099900101
410
SCREW , Replaced By: N000933008337
420
WASHER , Replaced By: N000125008443
420
WASHER EXHAUST MUFFLER TO STRAP
430
BRACKET SHIFT LEVER BEARING TO CAB FLOOR
440
SHEET METAL SCREW BRACKET TO CAB
670
SPACER TUBE SHIFTING ROD TO SHIFT LEVER
680
ROUND CORD RING. SEAL RING ROD END
690
SCREW SHIFTING ROD TO SHIFT LEVER
690
SCREW , Replaced By: N000933010192
700
SPRING WASHER SHIFTING ROD TO SHIFT LEVER
710
NUT , Replaced By: N910113010000
710
NUT STRAP TO BRACKET
999
SHIFTING ROD
