Поз.
Артикул
Описание

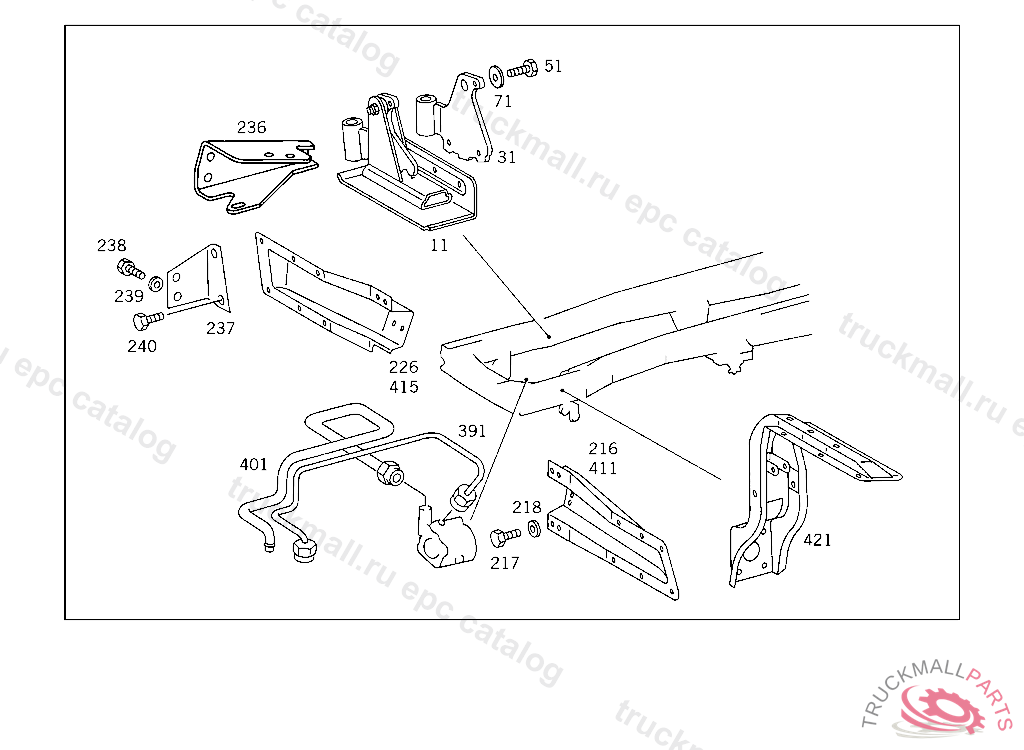

11
LOCKING MECHANISM CAB, RIGHT, FOR USE WITH SHORT MERCEDES-BENZ CAB
31
TOOTHED SEGMENT CAB LOCKING MECHANISM,RIGHT
51
SCREW EXHAUST PIPE TO BRACKET
71
WASHER BRACKET TO COVERING
71
WASHER , Replaced By: N009021010209
216
BRACKET LEFT FENDER
216
BRACKET LEFT FENDER
217
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
218
WASHER BRACKET TO SIDE MEMBER
226
BRACKET ,5 760170, Replaced By: A3875212140
226
BRACKET RIGHT FENDER
236
BRACKET FENDER TO BRACKET
236
BRACKET FENDER TO BRACKET
237
BRACKET FENDER TO BRACKET
238
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
239
WASHER BRACKET TO SIDE MEMBER
240
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
240
SCREW , Replaced By: N308676014020
391
LINE ,5 466596, Replaced By: A6454600924
391
LINE DELIVERY LINE
401
LINE , Replaced By: A6564602424
401
LINE ,5 466596, Replaced By: A6454601024
411
BRACKET LEFT FENDER
411
BRACKET LEFT FENDER
415
BRACKET ,5 760170, Replaced By: A3875212140
415
BRACKET RIGHT FENDER
421
BRACKET RIGHT FENDER
421
BRACKET RIGHT FENDER
421
BRACKET LEFT FENDER
999
PUMP , Replaced By: A0005537901, +001A0015534205
999
PUMP (HAND PUMP) WEBER
999
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING POWER PACKER
999
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING POWER PACK
999
SCREW BRACKET TO PROPELLER SHAFT BEARING HOUSING M 12X30
999
SCREW EXHAUST PIPE TO BRACKET
999
WASHER LEFT AND RIGHT CONSOLES TO CAB
999
BRACKET LEFT
999
BRACKET RIGHT
999
PLATE HAND PUMP
999
MOUNTING CAB SUSPENSION,REAR
999
SPACER TUBE SHOCK ABSORBER TO RAIL
999
SPACER TUBE MOUNTING TO CONSOLE
999
CONSOLE CAB SUSPENSION,REAR LEFT, TO BE ADAPTED DURING ASSEMBLY
999
CONSOLE CAB SUSPENSION,REAR RIGHT, TO BE ADAPTED DURING ASSEMBLY
999
MOUNTING RIGHT VIBRATION ABSORBER
999
CONSOLE CAB SUSPENSION,REAR
999
CONSOLE ADDITIONAL WORK ON FRAME
999
MOUNTING , Replaced By: A3878910072
999
CONSOLE CAB SUSPENSION,5 742148
999
MOUNTING , Replaced By: A3878910072
999
MOUNTING CAB SUSPENSION,REAR
999
CONSOLE CAB SUSPENSION,REAR RIGHT,BOTTOM, AND AIR INTAKE,5 343253
999
BRACKET , Replaced By: A6225500040
999
BRACKET FENDER TO BRACKET
999
BRACKET HAND PUMP
999
LOCKING MECHANISM CAB, RIGHT
999
TOOTHED SEGMENT RIGHT,5 350513
999
MOUNTING , Replaced By: A6258900303, +001N000960018033
999
CONSOLE CAB SUSPENSION,REAR RIGHT
999
BRACKET HAND PUMP
999
CLAMP CAB SUSPENSION
999
LOCKING MECHANISM CAB, RIGHT,5 719572
999
TOOTHED SEGMENT
999
COUPLING
999
CONSOLE CAB SUSPENSION,REAR LEFT
999
CONSOLE CAB SUSPENSION,REAR RIGHT
999
CONSOLE CAB SUSPENSION,REAR RIGHT
999
CONSOLE CAB SUSPENSION,REAR RIGHT
999
CLAMP CAB SUSPENSION
999
CONSOLE CAB SUSPENSION,REAR RIGHT,BOTTOM, AND AIR INTAKE
999
CONSOLE , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6208910031
