Поз.
Артикул
Описание

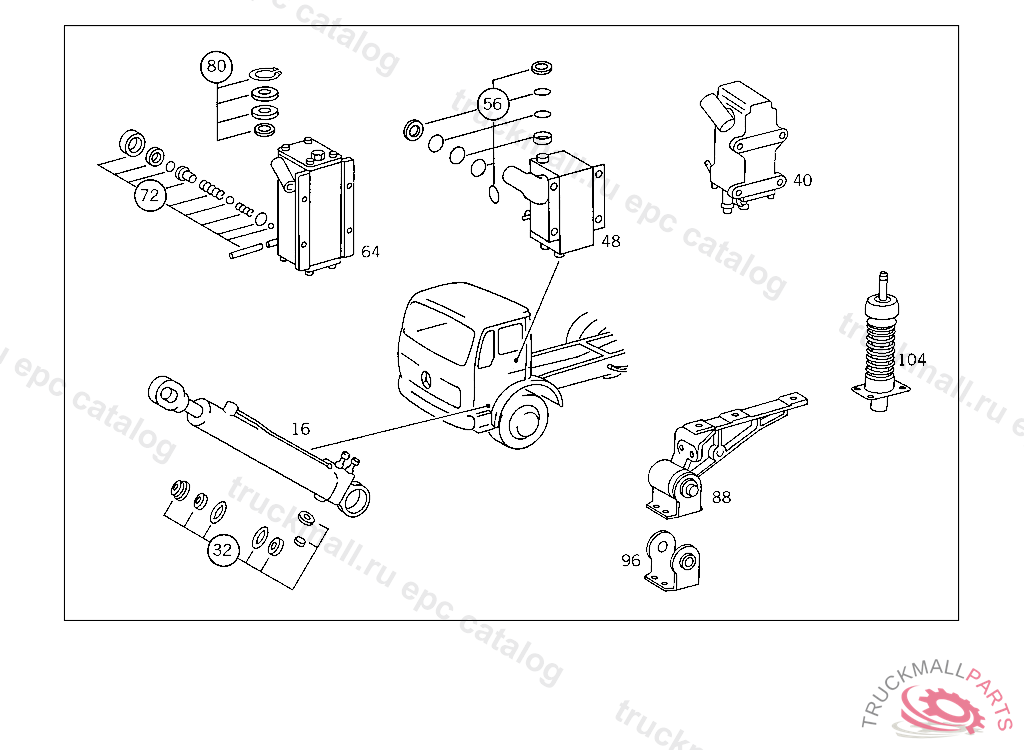

16
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING POWER PACKER,4 733732
16
CYLINDER , Replaced By: A0015533605
16
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING POWER PACKER,4 733732
32
GASKET KIT HYDRAULIC CYLINDER POWER PACKER
32
GASKET KIT HYDRAULIC CYLINDER WEBER
40
PUMP (HAND PUMP) WEBER
48
PUMP (HAND PUMP) WEBER
48
PUMP (HAND PUMP) POWER PACKER
56
REPAIR KIT HAND PUMP TO 000 553 65 01,000 553 69 01,
56
REPAIR KIT , Replaced By: A0005502355
56
REPAIR KIT , Replaced By: A0005530880
64
PUMP (HAND PUMP) POWER PACKER,4 733732
64
PUMP , Replaced By: A0005536501
72
REPAIR KIT VALVE TO 000 553 54 01,POWER-PACKER,4 733732
80
REPAIR KIT PISTON TO 000 553 54 01,POWER-PACKER,4 733732
88
BRACKET CAB, RIGHT, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 146509
88
BRACKET CAB,LEFT, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 146509
96
MOUNTING , FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 146509
96
MOUNTING , Replaced By: A3878908703, +001A6558902903
104
SHOCK ABSORBER CAB
999
GUIDEWEBER
999
FASTENER , Replaced By: A0008902389
999
RUBBER MOUNTINGTO 387 890 36 19
999
SPRING , FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 146509
999
RUBBER MOUNTING
999
BUSHING
999
SHOCK ABSORBER (VIBRATION ABSORBER),CAB REAR SUSPENSION
999
CYLINDER , Replaced By: A0015533505
999
RUBBER BUFFER CAB
999
PIN PULL TO FASTENER
999
RIVET BUSHING AND LEVER TO CAB
999
WASHER BRACKET TO SIDE MEMBER,5 703114
999
BUFFER TILTING LEVER
999
TUBE LEAF SPRING, TO BE ADAPTED DURING ASSEMBLY
999
BUSHING LEVER TO CAB
999
BUSHING LEAF SPRING
999
GUMMED LABEL CAB LOCKING MECHANISM
999
BEARING BRACKET HYDRAULIC CYLINDER
999
WASHER BEARING BRACKET
999
BRACKET LEFT FENDER
999
BRACKET RIGHT FENDER
999
GUIDE SIGN DANGER AREA IN FRONT OF TILTED CAB
999
MOUNTING CAB SUSPENSION,REAR
999
SEAL ROD THRU CAB
999
SHIM STRUT TO CONSOLE
999
BUFFER RAIL STOP
999
SPACER TUBE MOUNTING TO CONSOLE
999
SHIM MOUNTING TO CONSOLE
999
PLATE MOUNTING AND RAIL TO LEAF SPRING
999
BRACKET ROD THRU CAB
999
SPACER TUBE SHOCK ABSORBER TO RAIL
999
SPRING (LEAF SPRING),CAB SUSPENSION
999
CONSOLE CAB SUSPENSION,REAR LEFT, TO BE ADAPTED DURING ASSEMBLY
999
CONSOLE CAB SUSPENSION,REAR RIGHT, TO BE ADAPTED DURING ASSEMBLY
999
SPACER TUBE BEARING BRACKET
999
LEVER (TILTING LEVER),CAB
999
LEVER (TILTING LEVER),CAB
999
MOUNTING CAB,LEFT
999
MOUNTING CAB, RIGHT
999
MOUNTING LEFT VIBRATION ABSORBER
999
MOUNTING RIGHT VIBRATION ABSORBER
999
BUSHING TILTING LEVER
999
BUSHING TILTING LEVER
999
REPAIR KIT CAB SUSPENSION,FRONT
999
MOUNTING CAB TILTING LEVER
999
MOUNTING CAB,LEFT, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 146510
999
MOUNTING CAB, RIGHT, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 146510
999
BUSHING ON TOGGLE LEVER,FOR HYDRAULIC CYLINDER
999
HANDLE CAB LOCKING MECHANISM
999
ROD CENTRAL LOCK
999
BASE MOUNTING AND RAIL TO LEAF SPRING
999
MOUNTING CAB LOCKING MECHANISM
999
PLATE LEFT REINFORCEMENT
999
PLATE RIGHT REINFORCEMENT
999
STRUT FRONT LEFT
999
STRUT FRONT RIGHT
999
STRUT BUMPER,LEFT
999
STRUT BUMPER,RIGHT
999
CONSOLE CAB SUSPENSION,FRONT
999
REINFORCEMENT LEFT SHOCK ABSORBER, TO BE ADAPTED DURING ASSEMBLY
999
REINFORCEMENT RIGHT SHOCK ABSORBER
999
RAIL CAB SUSPENSION,REAR
999
MOUNTING ,5 505581, Replaced By: A6558902303
999
MOUNTING ,5 505581, Replaced By: A6558902403
999
TUBE , Replaced By: A3638910218
999
STRUT CAB MOUNTING,REAR (LEAF SPRING SUSPENSION)
999
MOUNTING CAB,LEFT
999
MOUNTING RIGHT SIDE MEMBER
999
CYLINDRICAL PIN RIGHT FRONT
999
SCREW BUFFER AND MOUNTING TO RAIL M 8X18
999
COTTER PIN PULL ROD TO LEVER
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125010532
999
WASHER RADIATOR TO RUBBER MOUNTING
999
WASHER
999
WASHER , Replaced By: N000125015019
999
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
999
WASHER BRACKET TO CROSS MEMBER
999
NUTTO 376 131 74 01
999
SCREW MOUNTING AND RAIL TO LEAF SPRING
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW CENTRAL LOCK TO CAB M 10X16
999
SCREW , Replaced By: N308676012031
999
SCREW LEAF SPRING TO STRUT
999
SCREW , Replaced By: N000961014064
999
SCREW SPACER TUBE TO MOUNTING
999
SCREW , Replaced By: N000960018142
999
SCREW , Replaced By: N308676018010
999
SCREW SHOCK ABSORBER TO RAIL
999
SCREW , Replaced By: N308676012012
999
SCREW CONSOLE TO SIDE MEMBER
999
SCREW , Replaced By: N308676014003
999
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
999
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
999
SCREW , Replaced By: N308676014020
999
SCREW BRACKET TO CAB CONSOLE,K 035197
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW , Replaced By: N308676014008
999
SCREW MOUNTING TO CONSOLE M 14X55
999
SCREW EXHAUST PIPE AND PIPE CLAMP TO BRACKET
999
PIN LEVER TO ROD
999
CLAMPING SLEEVE LEVER MOUNTING
999
CLAMPING SLEEVE ROD TO BRACKET
999
CLAMPING SLEEVE , Replaced By: N001481005039
999
WASHER SPARE WHEEL CARRIER
999
WASHER TORSION BAR TO BEARING BRACKET, Replaced By: N007349017003
999
WASHER TORSION BAR TO BEARING BRACKET
999
SCREW BUSHING AND LEVER TO CAB
999
WASHER LEAF SPRING TO STRUT
999
NUT VIBRATION ABSORBER TO CONSOLE
999
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
999
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
999
SCREW , Replaced By: N308676012011
999
HEXAGON HEAD BOLT. SCREW ENGINE MOUNTING TO SUPPORT,ON CLUTCH END M 14X30
999
SCREW MOUNTING TO CONSOLE M 14X35
999
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
999
SCREW SUPPORTING ARM TO CYLINDER CRANKCASE M 18X60
999
SPRING WASHER LEVER MOUNTING
999
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
NUT STRAP TO BRACKET
999
NUT SUPPORT TO SIDE MEMBER
999
NUT STEERING SUPPORT TO FRAME
999
NUT BRACKET TO SIDE MEMBER
999
NUT COMBINATION CYLINDER TO BEARING BRACKET
999
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
999
LOCK , Replaced By: N912002008003
999
LOCK PULL TO FASTENER
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
NUT , Replaced By: N910113010000
999
NUT , Replaced By: N910113014001
999
NUT , Replaced By: N910113014000
999
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
999
NUT , Replaced By: N910113018004
