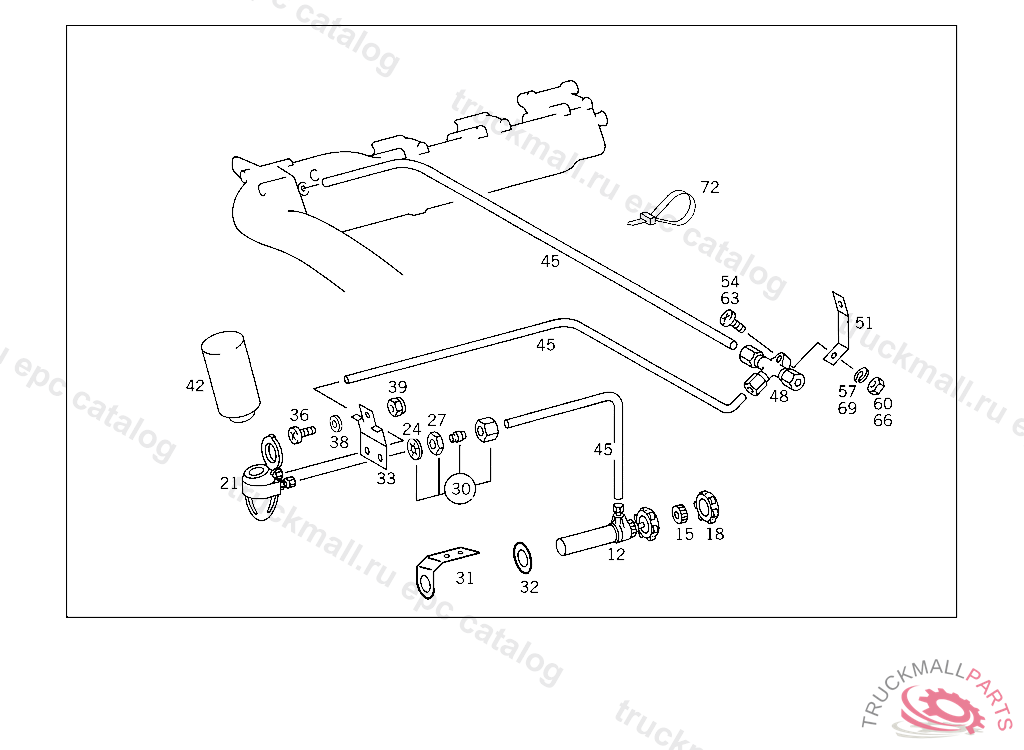

Поз.
Артикул
Описание
12
PUMP PRIMING FUEL
15
NUT
18
HANDLE
21
PRIMER CAPSULE PRIMING FUEL
24
SERRATED WASHER
27
NUT
30
NUT REPAIR KIT
31
BRACKET STARTER PILOT PUMP
32
WASHER STARTER PILOT PUMP
33
BRACKET PRIMER CAPSULE
33
BRACKET PRIMER CAPSULE
36
SCREW , Replaced By: N304017008021
36
SCREW PIPE CLAMP
36
SCREW , Replaced By: N000000001146
36
SCREW CLAMP MOUNTING M 6X16
38
WASHER , Replaced By: N009021006208
38
WASHER COMPRESSED AIR LINE TO BRACKET
39
NUT COVERING TO CAB FIRE WALL
42
FILLING CYLINDER PRIMING FUEL
45
HOSE FUEL LINE, ORDER BY THE METER
48
T-FITTING AT BRACKET
51
BRACKET , Replaced By: A3604293140
51
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
54
SCREW T-FITTING TO BRACKET M4X25
57
LOCK WASHER T-FITTING TO BRACKET
60
NUT T-FITTING TO BRACKET M 4
63
SCREW , Replaced By: N304017006016
63
SCREW PUMP TO BRACKET
63
SCREW , Replaced By: N304017005002
63
SCREW LEVER TO SHAFT
66
NUT , Replaced By: N913004006001
66
NUT PUMP TO BRACKET
69
LOCK WASHER T-FITTING TO BRACKET
72
LOOM TIE LINE MOUNTING 280 MM
72
LOOM TIE , Replaced By: A0019978390
999
BRACKET T-FITTING
999
BRACKET PRIMER CAPSULE
