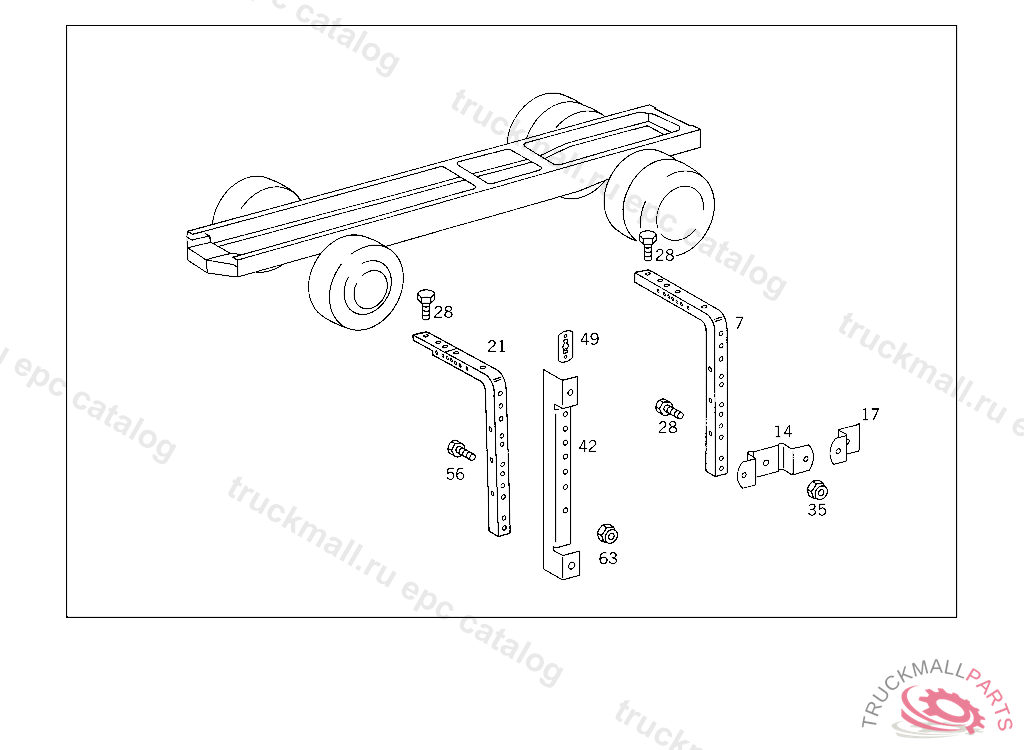

Поз.
Артикул
Описание
7
BRACKET , Replaced By: A6525250840
7
BRACKET UNDERRUN PROTECTION,RIGHT, TO BE ADAPTED DURING ASSEMBLY
14
BRACKET UNDERRUN PROTECTION
17
BRACKET UNDERRUN PROTECTION
21
BRACKET UNDERRUN PROTECTION,LEFT
21
BRACKET UNDERRUN PROTECTION,LEFT
21
BRACKET UNDERRUN PROTECTION,LEFT
21
BRACKET UNDERRUN PROTECTION,LEFT
21
BRACKET UNDERRUN PROTECTION,LEFT
28
SCREW
28
SCREW , Replaced By: N304017010051
28
SCREW BRACKET TO SIDE MEMBER
28
SCREW , Replaced By: N304017010002
28
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
35
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
35
NUT STRAP TO BRACKET
35
NUT , Replaced By: N913023010002
35
NUT , Replaced By: N910113010000
42
RAIL UNDERRUN PROTECTION,K 117140
42
RAIL UNDERRUN PROTECTION
42
RAIL UNDERRUN PROTECTION
42
RAIL UNDERRUN PROTECTION
49
FASTENER
49
FASTENER
49
FASTENER
49
FASTENER ,K 105999
56
SCREW END PIECE TO EXHAUST PIPE M 10X25
63
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
63
NUT STRAP TO BRACKET
63
NUT , Replaced By: N913023010002
63
NUT , Replaced By: N910113010000
999
BRACKET , Replaced By: A6525250740
999
BRACKET , Replaced By: A6525250740
999
BRACKET , Replaced By: A6525250740
999
BRACKET , Replaced By: A6525250840
999
BRACKET , Replaced By: A6525250840
999
BRACKET , Replaced By: A6525250840
999
BRACKET , Replaced By: A6525250840
999
BRACKET , Replaced By: A6525250840
