Mercedes N000094004051 - ШПЛИНТ КРЕПЛЕНИЯ ЦИЛИНДРА

1735,1929,1935,1945,25292635L,2650A,3535L,3550L 656.215

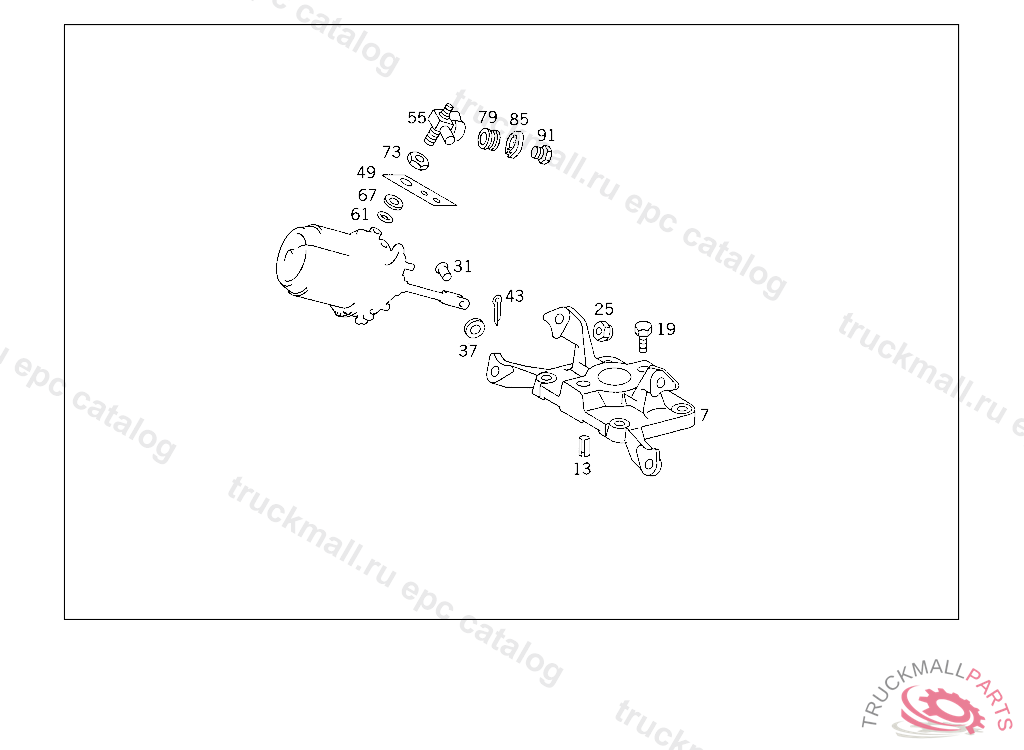

42 BRAKES - 400 BRAKE POWER REGULATOR,METAL SPRING BELLOWS,COMBINATION CYLINDER IL. 2

Поз.
Артикул
Описание
7
A6234230633
BEARING BRACKET WHEEL CYLINDER
13
N001481028004
CLAMPING SLEEVE BEARING BRACKET TO REAR AXLE
19
N914125020501
SCREW BEARING BRACKET TO REAR AXLE M 20X50, IN CASE OF CAST AXLE
19
N308676016013
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X40
19
N000961016036
SCREW , Replaced By: N308676016013
25
N913004016004
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
25
N910113016002
NUT COMBINATION CYLINDER TO BEARING BRACKET
31
A3619910005
PIN COMBINATION CYLINDER TO SLACK ADJUSTER
37
N000433015001
WASHER COMBINATION CYLINDER TO SLACK ADJUSTER
43
N000094004051
COTTER PIN STRAP TO SUPPORT
49
A3874291540
BRACKET PRESSURE GAUGE LINE TO BRACKET
55
A6459900370
T-FITTING REAR AXLE II TRISTOP CYLINDER, CONNECTIONS: "11,12,22"
61
A0009971548
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
67
A0004290927
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
73
N080705016003
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
79
A0009940147
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
85
A0009941448
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
91
A0009970934
SCREW. UNION SCREW LINE CONNECTION
