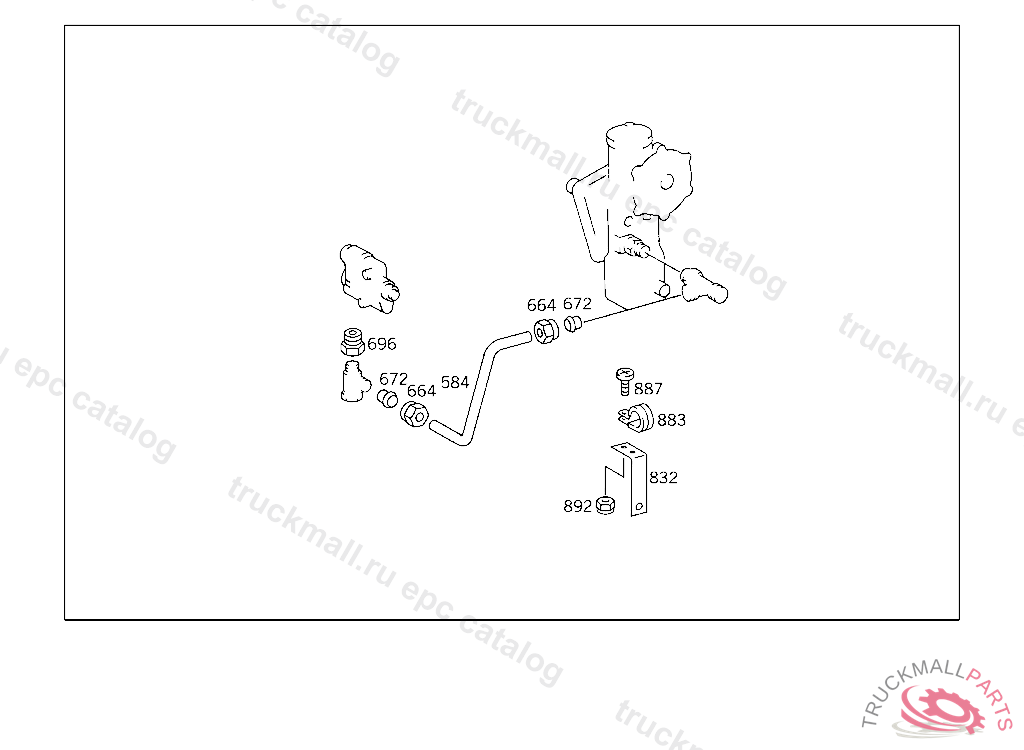

Поз.
Артикул
Описание
584
LINE12 MM, ORDER BY THE METER4 691315
664
UNION NUT LINE CONNECTION
664
UNION NUT LINE CONNECTION, Replaced By: N000000006239
672
GLAND , Replaced By: A0019901967
672
SEAL CONE LINE CONNECTION
696
SCREW CONNECTION COMPRESSED AIR LINE TO WHEEL HUB, Replaced By: N000000006458
696
THREADED CONNECTION COMPRESSED AIR LINE TO WHEEL HUB
832
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
883
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
883
CLAMP DELIVERY AND SUCTION LINES TO FRAME
883
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
883
CLAMP DELIVERY AND SUCTION LINES TO STEERING
883
CLAMP LINE MOUNTING
883
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
883
CLAMP , Replaced By: A6739950001
883
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
883
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
887
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
892
NUT PUMP TO BRACKET
892
NUT , Replaced By: N913004006001
892
NUT , Replaced By: N913004008001
892
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
VALVE (PRESSURE LIMIT VALVE) 100 BAR
999
VALVE PRESSURE LIMIT,CIRCUIT II 150 BAR
999
COVER
999
PISTON
999
TUBE FROM HIGH PRESSURE HOSE TO STEERING
999
SNAP RING
999
SCREW PLUG
999
SPRING
999
FITTING
999
SEAL RING
999
OIL LINE FROM STEERING TO HOSE
999
OIL LINE FROM STEERING TO HOSE
999
OIL LINE FROM STEERING TO HOSE
999
OIL LINE FROM STEERING TO HOSE
999
OIL LINE FROM STEERING TO HOSE
999
OIL LINE FROM STEERING TO HOSE
999
OIL LINE OIL LINE TO ENGINE
999
OIL LINE OIL LINE TO ENGINE
999
OIL LINE OIL LINE TO TRANSMISSION
999
OIL LINE FROM STEERING COLUMN ASSEMBLY TO SEPARATION POINT
999
OIL LINE FROM STEERING COLUMN ASSEMBLY TO SEPARATION POINT
999
OIL LINE OIL LINE TO ENGINE
999
OIL LINE OIL LINE TO ENGINE
999
BRACKET PRESSURE LIMIT VALVE
999
SUPPORT LINE MOUNTING
999
SUPPORT LINE TO FIRE WALL
999
PIPE CUT-IN-VALVE-TO-STEERING-T-FITTING RETURN LINE
999
PROTECTIVE PLATE OIL TANK
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
