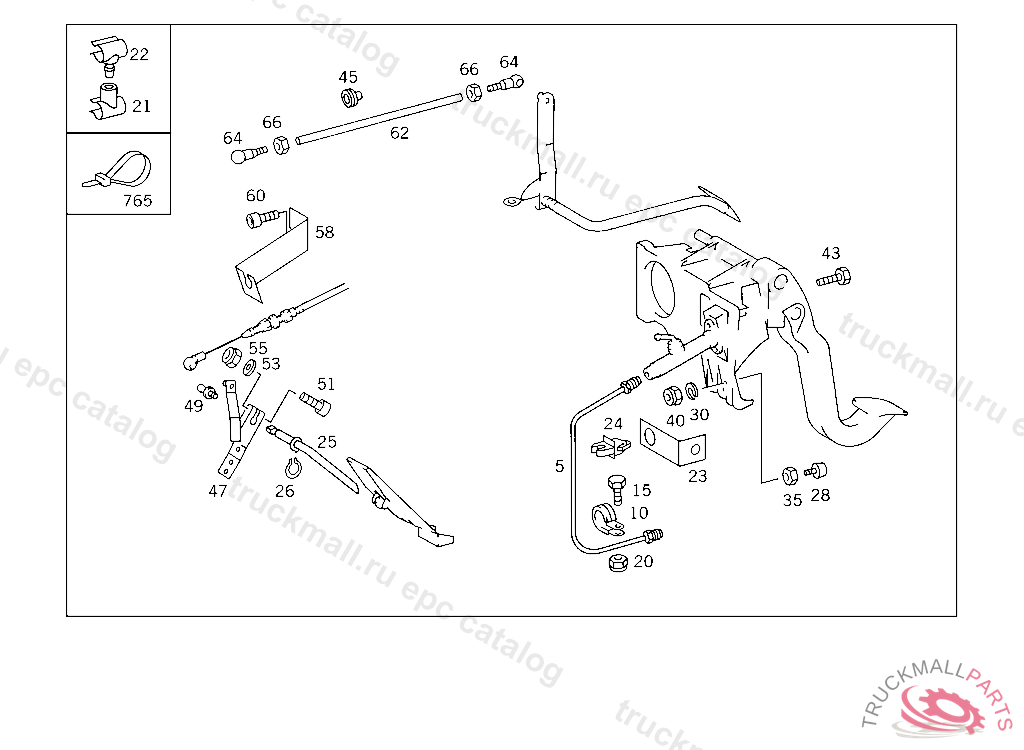

Поз.
Артикул
Описание
5
LINE FROM MASTER CYLINDER TO BRAKE PRESSURE REGULATOR 1650 MM, 734559
5
LINE FROM TEST CONNECTION TO RIGHT FRONT WHEEL BRAKE HOSE
5
LINE , Replaced By: A3404203029
10
CLAMP SENSOR CABLE TO BRACKET
15
SCREW PUMP TO BRACKET
20
NUT HEATING PIPE TO BRACKET
21
BRACKET OIL LINES
21
CLAMP ELECTRIC CABLE TO BRAKE HOSE
21
CLAMP. EXTENDABLE SPACER BREATHER LINE
22
CLAMP
23
BRACKET PEDESTAL,REAR RIGHT,025123
24
BRACKET SENSOR CABLE TO FRONT AXLE
25
LEVER , Replaced By: A3843007625
26
LOCK RING. RETAINING RING ACCELERATOR PEDAL TO LEVER
28
BUFFER STOP TO ACCELERATOR PEDAL
30
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
35
NUT SPRING-LOADED PUSH ROD
40
NUT HEATING PIPE TO BRACKET
43
HEXAGON HEAD BOLT BRACKET TO NO.1 CROSS MEMBER M8X35
45
GROMMET TEMPERATURE GAUGE SENDER UNIT
47
LEVER (CONTROL LEVER)
47
LEVER (CONTROL LEVER),025123 TO BE ADAPTED DURING ASSEMBLYN 036999
49
BALL PIVOT
51
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
53
WASHER SWITCH TO FIRE WALL
55
NUT HEATING PIPE TO BRACKET
58
BEARING BOWDEN CABLE TO ENGINE,025123N 036999
60
SCREW , Replaced By: N304017012022
60
SCREW EXHAUST PIPE BRACKET TO SIDE MEMBER
62
ROD , Replaced By: A3093011315
62
ROD FROM ACCELERATOR PEDAL TO CONTROL SHAFT BEARING
62
ROD FROM PEDAL PLATE TO LEVER,709057
62
ROD ACCELERATOR PEDAL
64
BALL SOCKET ROD TO LEVER,284049
66
NUT SPRING-LOADED PUSH ROD
765
LOOM TIE LINE MOUNTING 280 MM
999
CLAMPING BRACKET
999
BRACKET
999
OIL FILLER NECK AT RADIATOR
999
ANGLE LEFT CONSOLE TO FRAME
999
ANGLE RIGHT CONSOLE TO FRAME
999
SCREW COVER TO BATTERY SUPPORT M 6X16
999
SCREW CLAMP TO EXHAUST PIPE AND TO FLEXIBLE METAL TUBE M 8X25
