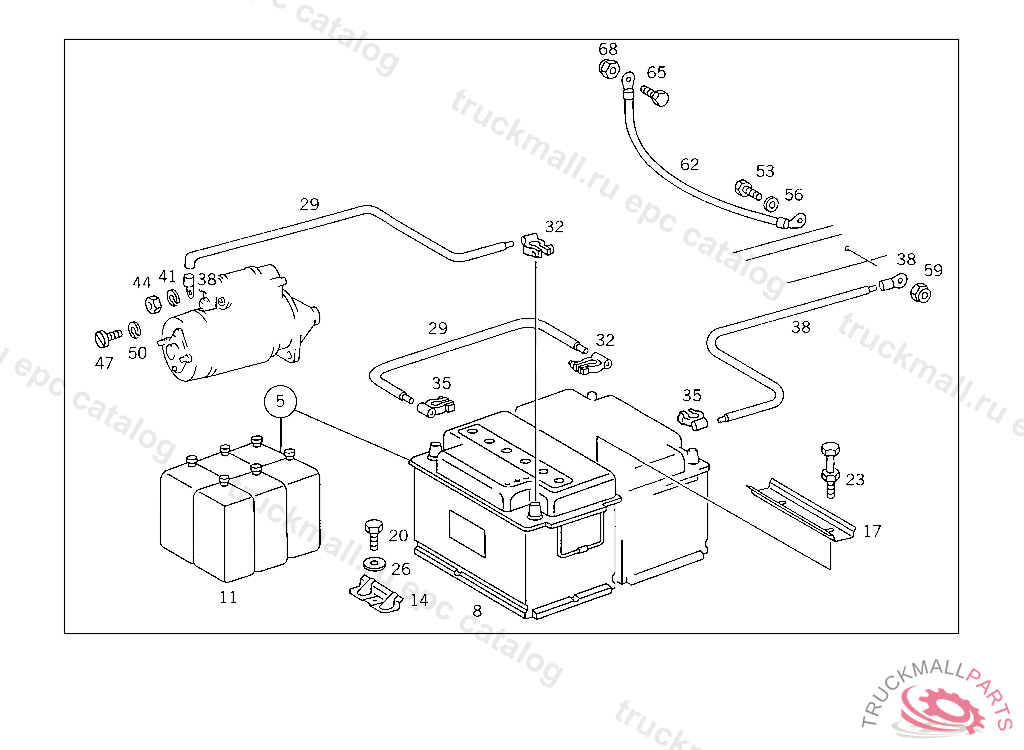

Поз.
Артикул
Описание
5
BATTERY PARTS KIT,5 338284
5
BATTERY , Replaced By: A1245400101
5
BATTERY , Replaced By: A0035416601, +001A0009891215
8
BATTERY , Replaced By: A0035416601
8
BATTERY PARTS KIT,5 338284
11
BATTERY ACID BOTTLE SET ,5 338284
11
BATTERY ACID BOTTLE SET , Replaced By: A0009891215
14
ANGLE BATTERY MOUNTING, FROM IDENT NO. 5 419107-5 757662 ALS INSTALLED ON 5 800000-5 806588
17
MOUNTING RAIL
20
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
23
SCREW RAIL TO BATTERY SUPPORT, N 000001 P 062531
26
WASHER BRACKET TO LEFT SIDE MEMBER
26
WASHER , Replaced By: N009021008213
29
ELECTRIC CABLE , Replaced By: A6735460011
29
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR
32
SOLDERING TERMINAL POS. POLE
35
SOLDERING TERMINAL POS. POLE
38
CABLE SHOE BATTERY CABLE TO BATTERY MASTER SWITCH
38
CABLE SHOE BATTERY CABLE TO BATTERY MASTER SWITCH
41
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
44
NUT
47
SCREW TO PLUG THE FREE CONNECTIONS
50
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
53
SCREW STRUT TO CROSS MEMBER M 10X25
56
WASHER RADIATOR TO RUBBER MOUNTING
59
NUT CROSS MEMBER TO SIDE MEMBERS
62
ELECTRIC CABLE GROUND CABLE
65
SCREW PUMP TO BRACKET
68
NUT HEATING PIPE TO BRACKET
999
BATTERY12V/88AH
999
BATTERY12 V/66 AH
999
BATTERY , Replaced By: A0045413101
999
BATTERY12V/88AH, Replaced By: A0009823808
