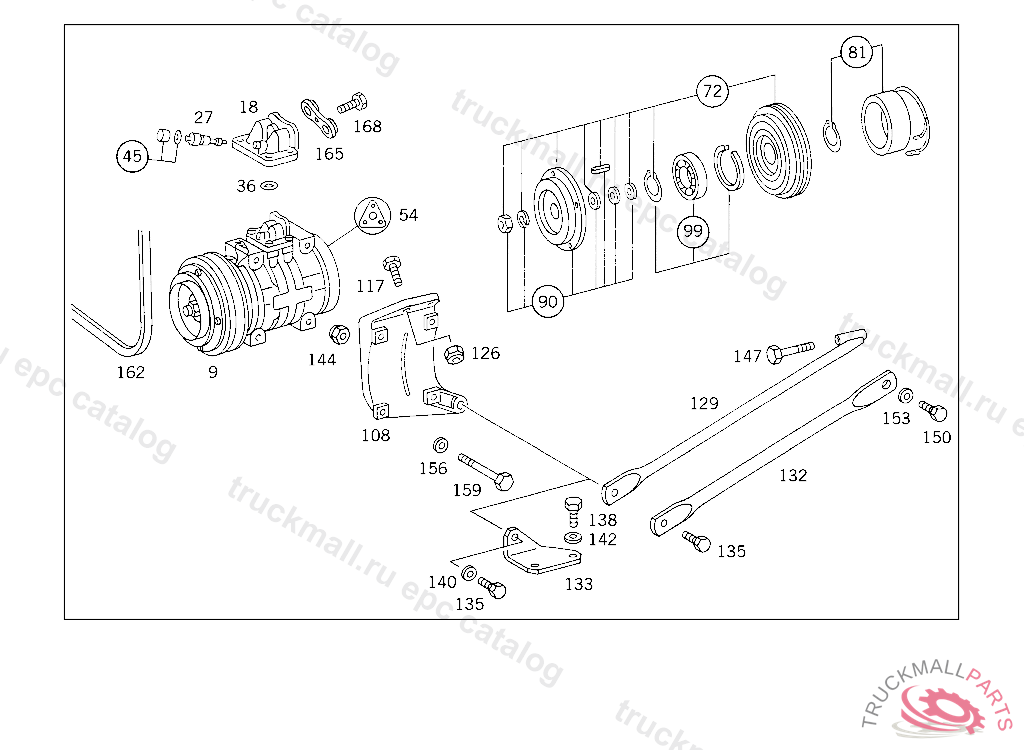

Поз.
Артикул
Описание
9
COMPRESSOR
9
COMPRESSOR WITH COUPLING
9
COMPRESSOR , Replaced By: A0002304211
18
CONNECTOR
27
VALVE INSERT , NOT USED
36
SEAL RING
45
CAP (PARTS KIT),CAP
54
SEAL RING GASKET KIT
72
COUPLING (PARTS KIT),V-BELT PULLEY
81
MAGNET (PARTS KIT),SOLENOID
90
FOLLOWER (PARTS KIT),FOLLOWER
99
CYLINDR. ROLLER BEARING (PARTS KIT),CYLINDRICAL ROLLER BEARING
108
SUPPORT LEFT
108
SUPPORT RIGHT
108
SUPPORT RIGHT
117
SCREW TRAILER COUPLING TO REAR CROSS MEMBER M 10X130
117
SCREW SUPPORT TO ENGINE FRONT SUPPORT
117
SCREW TIGHTENER PULLEY TO BEARING BRACKET,069451
117
SCREW SUPPORT TO ENGINE FRONT SUPPORT M10X100
117
HEXAGON HEAD BOLT. SCREW LEVER TO RELEASE SHAFT
117
SCREW , Replaced By: N000912010031
126
NUT CROSS MEMBER TO SIDE MEMBERS
129
WEB RIGHT
132
STRUT LEFT
132
STRUT RIGHT
133
STRUT AT OIL PAN
135
SCREW CONNECTOR TO REAR SHIFTING ROD
135
SCREW BRACKET TO FRAME SIDE MEMBER
138
SCREW BRACKET TO CROSS CONNECTION STRUT
140
WASHER STRUT TO CROSS MEMBER
142
WASHER PROTECTIVE PLATE TO BRACKET,5 502998
144
NUT CROSS MEMBER TO SIDE MEMBERS
147
SCREW. HEXAGON HEAD BOLT RADIATOR PROTECTION,BOTTOM
150
SCREW BRACKET TO ENGINE
153
WASHER STRUT TO CROSS MEMBER
156
WASHER PROTECTIVE PLATE TO BRACKET,5 502998
159
SCREW BRACKET TO CROSS MEMBER
162
V-BELT HYDRAULIC PUMP,5 345185
162
V-BELT12.5X1175
162
V-BELT , Replaced By: A0069972092
165
FLANGE
168
SCREW CABLE HARNESS MOUNTING
