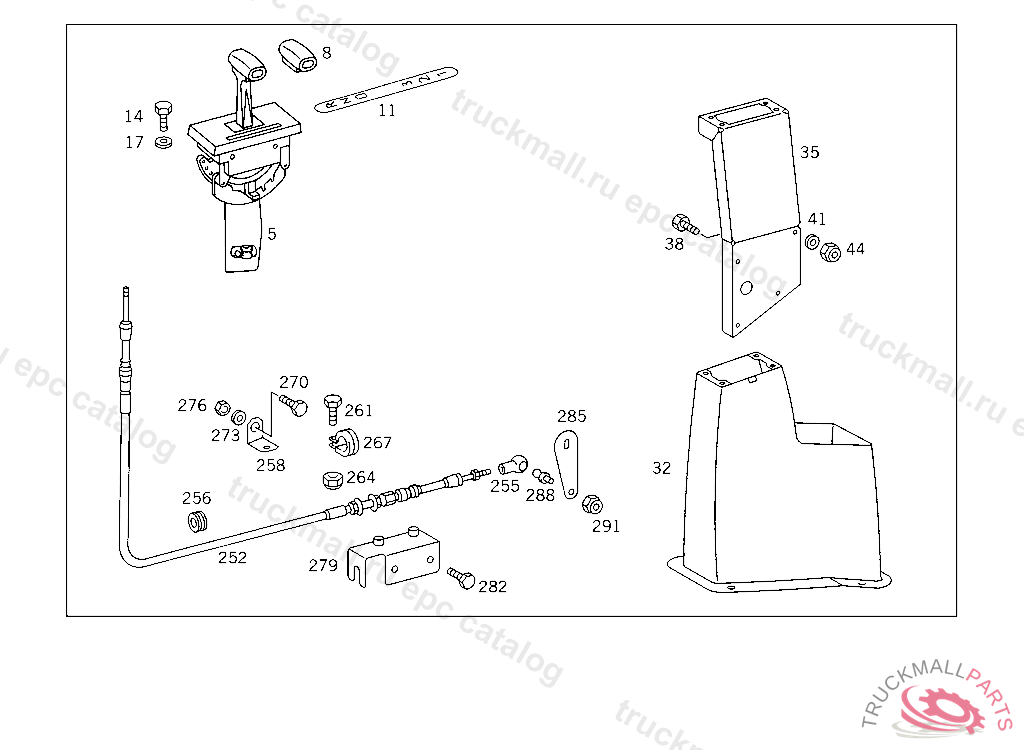

Поз.
Артикул
Описание
5
SLOTTED GATE
5
SLOTTED GATE
8
SHIFT LEVER
11
DIAL
14
SCREW PUMP TO BRACKET
17
WASHER SWITCH TO FIRE WALL
32
COVERING SHIFT LEVER BEARING, N 000001 P 012869
35
BRACKET SHIFT LEVER BEARING
38
SCREW PIPE CLAMP
41
WASHER BRACKET TO LEFT SIDE MEMBER
41
WASHER , Replaced By: N009021008213
44
NUT STRAP TO BRACKET
252
WIRE CABLE
252
WIRE CABLE
252
WIRE CABLE
255
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
256
GROMMET , Replaced By: A1369970081
258
BRACKET FLEXIBLE SHAFT TO BELL HOUSING
261
HEXAGON HEAD BOLT BRACKET TO BRACKET
264
NUT
267
CLAMP CABLE HARNESS MOUNTING
267
CLAMP , Replaced By: N000000001045
267
CLAMP , Replaced By: N916016010211
270
SCREW PUMP TO BRACKET
273
WASHER SWITCH TO FIRE WALL
276
NUT HEATING PIPE TO BRACKET
276
NUT SPRING-LOADED PUSH ROD
279
BRACKET BRACKET TO OIL PAN
282
SCREW BRACKET TO OIL PAN
282
SCREW , Replaced By: A1249904601
285
LEVER LEVER TO SHIFTING SHAFT
288
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
291
NUT HEATING PIPE TO BRACKET
999
KNOB
999
STRAP
