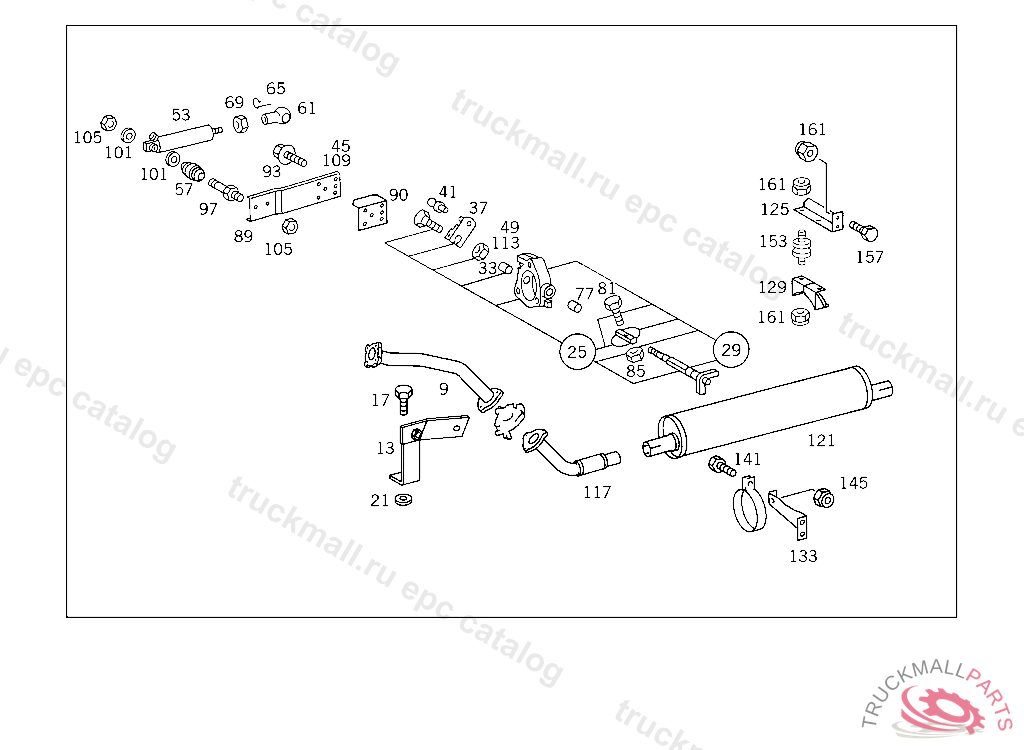

Поз.
Артикул
Описание
9
EXHAUST PIPE FRONT, N 018919 P 329122
9
EXHAUST PIPE FRONT
13
BRACKET FRONT EXHAUST PIPE
17
SCREWM 16X25
21
WASHER BRACKET TO FRAME
21
WASHER , Replaced By: N000125017016
25
THROTTLE HOUSING , Replaced By: A3661402253
25
THROTTLE HOUSING , Replaced By: A3661405553
25
THROTTLE HOUSING
25
THROTTLE HOUSING PARTS KIT,K 181318N 817421 - N 825202
25
THROTTLE HOUSING PARTS KIT,N 038836
29
VALVE PARTS KIT,K 181319
29
VALVE PARTS KIT,K 181318N 817421 - N 825202
29
VALVE , Replaced By: A3661402063
33
BUSHING THROTTLE VALVE SHAFT
37
LEVER EXHAUST-BRAKE THROTTLE VALVE
41
BALL PIVOT BOTTOM B13X5 MM
41
BALL PIVOT
45
HEXALOBULAR BOLT. SCREW LINE MOUNTING M 6X30
45
SCREW , Replaced By: N000000001479
49
NUT , Replaced By: N913023006001
49
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
53
CYLINDER (POWER CYLINDER),EXHAUST BRAKE, Replaced By: A0004307926
53
POWER CYLINDER EXHAUST BRAKE
53
CYLINDER , Replaced By: A0004305926
57
BUSHING"WABCO"
61
BALL SOCKET POWER CYLINDER
61
BALL SOCKET SHIFTING CYLINDER TO SHIFT LEVER
61
BALL SOCKET
65
CIRCLIP ,B 884219
69
NUT , Replaced By: N304035008001
69
NUT
77
BUSHING THROTTLE VALVE SHAFT
81
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
81
SCREW , Replaced By: A0099900101
85
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
89
BRACKET SHIFTING CYLINDER
89
BRACKET POWER CYLINDER, TO BE ADAPTED DURING ASSEMBLY
89
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 077169/N 817421 - 825202, Replaced By: A3661440440
90
REINFORCEMENT REINFORCEMENT TO BRACKET,N 038836
93
SCREW BRACKET TO THROTTLE HOUSING M 8X14,B 898894
97
PIN INTERMEDIATE SPEED STOP
101
WASHER INTERMEDIATE SPEED STOP
105
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
109
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
109
SCREW , Replaced By: A0099900101
113
NUT POWER CYLINDER TO BRACKET
117
EXHAUST PIPE FRONT,SECOND PART
117
FRONT EXHAUST PIPE FRONT EXHAUST PIPE REAR PART TO MUFFLER
121
EXHAUST MUFFLER (MAIN MUFFLER),SILENT
125
BRACKET FRONT EXHAUST MUFFLER, N 018998 P 261237
129
BRACKET EXHAUST MUFFLER SUSPENSION
133
BRACKET REAR EXHAUST MUFFLER, N 018998 P 261237
141
HEXAGON HEAD BOLT BRACKET TO NO.1 CROSS MEMBER M8X35
145
NUT , Replaced By: A1201420072
145
HEXAGON NUT SCREENING PLATE,5 163561
153
RUBBER BUFFER EXHAUST MUFFLER
157
SCREW STRUT TO CROSS MEMBER M 10X25
161
NUT CROSS MEMBER TO SIDE MEMBERS
999
CLAMP EXHAUST MUFFLER SUSPENSION
999
VALVE THROTTLE VALVE
