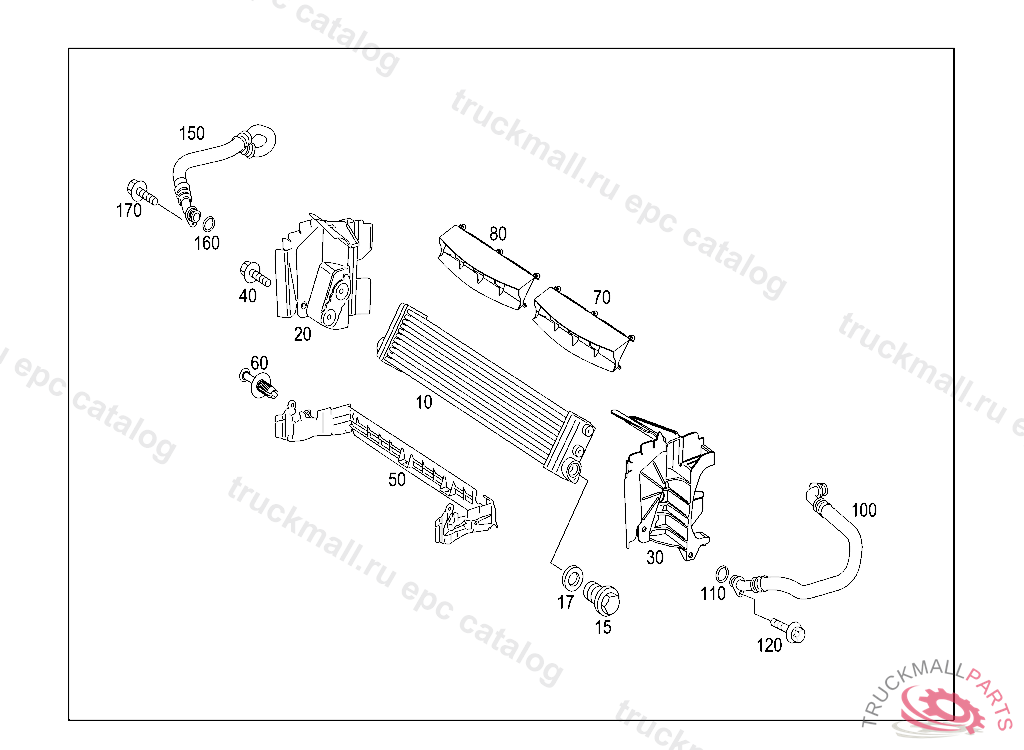

Поз.
Артикул
Описание
10
RADIATOR
15
SCREW PLUG
17
SEAL RING
20
BRACKET TO OIL COOLER RIGHT
30
BRACKET TO OIL COOLER LEFT
40
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
50
AIR BAFFLE EXHAUST AIR, OIL COOLER
60
RIVET SEALING LIP TO RADIATOR
70
AIR BAFFLE SUPPLY AIR, OIL COOLER
80
AIR BAFFLE EXHAUST AIR, OIL COOLER
100
LINE FROM ENGINE JUNCTION TO OIL COOLER
110
SEAL RING OIL LINE TO OIL FILTER
120
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
150
LINE FRONT END COOLER TO OIL COOLER IN WHEELHOUSE
160
SEAL RING OIL LINE TO OIL FILTER
170
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
