Mercedes A3529970032 - БОЛТ ЗАМКА

E 63 AMG 211.277

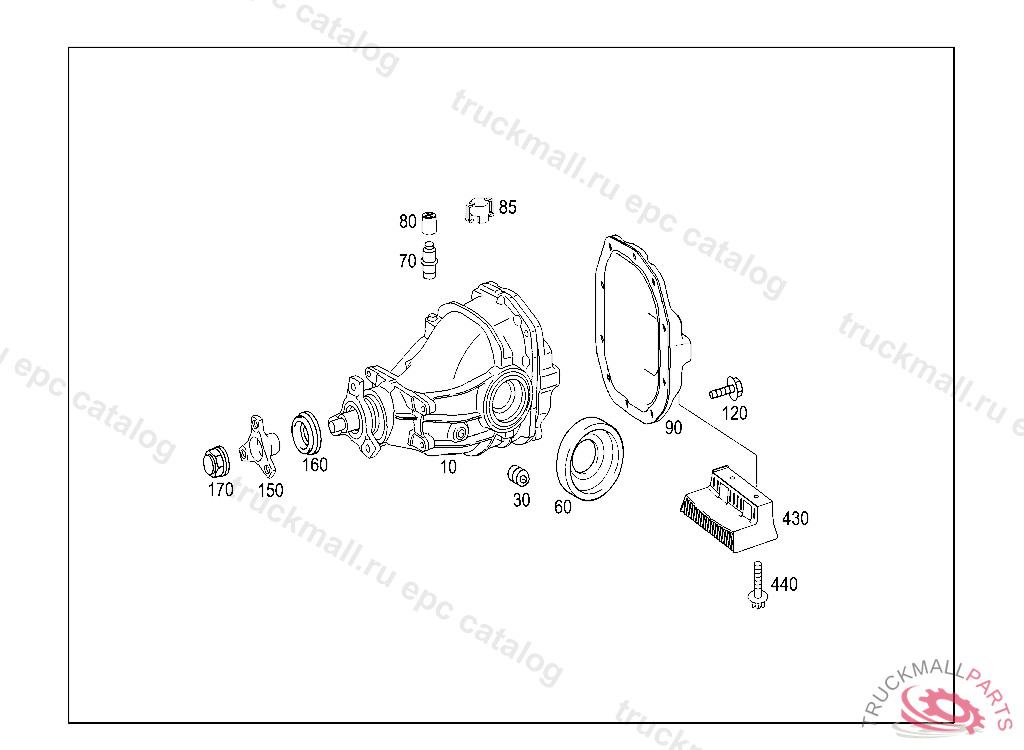

35 REAR AXLE - 015 REAR AXLE HOUSING WITH DIFFERENTIAL

Поз.
Артикул
Описание
10
A2303504214
REAR AXLE DIFFERENTIAL REAR AXLE CENTER ASSEMBLY W/O FLANGE 1:2.82, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
10
A2303507014
REAR AXLE DIFFERENTIAL REAR AXLE HOUSING WITH DIFFERENTIAL 1:2.82, Replaced By: A2193506314
10
A2193506314
AXLE HOUSING REAR AXLE HOUSING WITH DIFFERENTIAL
30
A3529970032
SCREW PLUG BELL HOUSING
60
A2309970346
SEAL RING LEFT AND RIGHT AXLE SHAFT, IMPORTANT: SEALING RING AND PROTECTIVE RING MUST ALWAYS BE EXCHANGED TOGETHER!
70
A2303500590
BREATHER
80
A2303510268
CAP BREATHER
90
A2113510608
END COVER
120
N910105010009
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
150
A2303500545
FLANGE120 MM
160
A2309970246
SEAL RING FLANGE
170
A2213530072
NUT JOINT FLANGE M29X1.5
430
A1713510108
COVER RECTIFIER BRIDGE
440
N000000001536
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION
