Поз.
Артикул
Описание

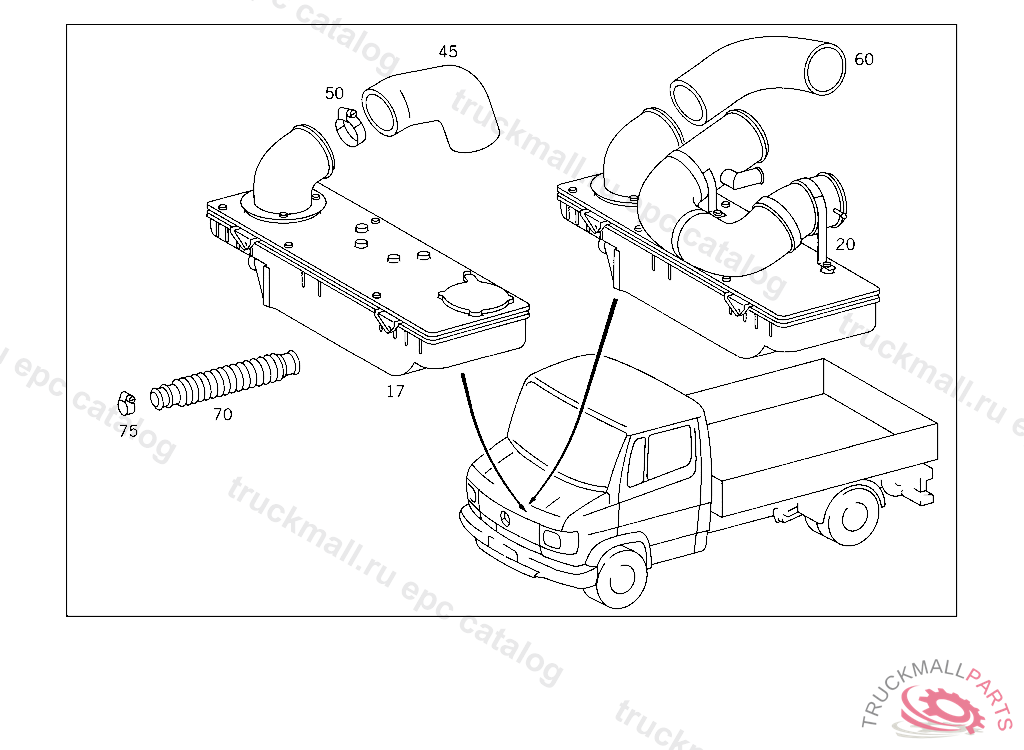

17
MUFFLER , 962132 N 000000 P 000000
20
MUFFLER
20
MUFFLER
20
MUFFLER , 962133 N 000001 P 000001
20
MUFFLER
45
HOSE FROM MUFFLER TO AIR CLEANER, TO BE ADAPTED DURING ASSEMBLY
45
HOSE FROM MUFFLER TO AIR CLEANER
50
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
50
CLAMP , Replaced By: A0059972990
50
CLAMP , Replaced By: N000000000675
60
HOSE FROM OIL BATH AIT CLEANER TO INTAKE MUFFLER, 962133 N 000001 P 000001
60
HOSE FROM MUFFLER TO AIR CLEANER, TO BE ADAPTED DURING ASSEMBLY
70
HOSE FROM AIR CLEANER TO AIR COMPRESSOR
75
CLAMP25-40X13 MM
75
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
