Поз.
Артикул
Описание

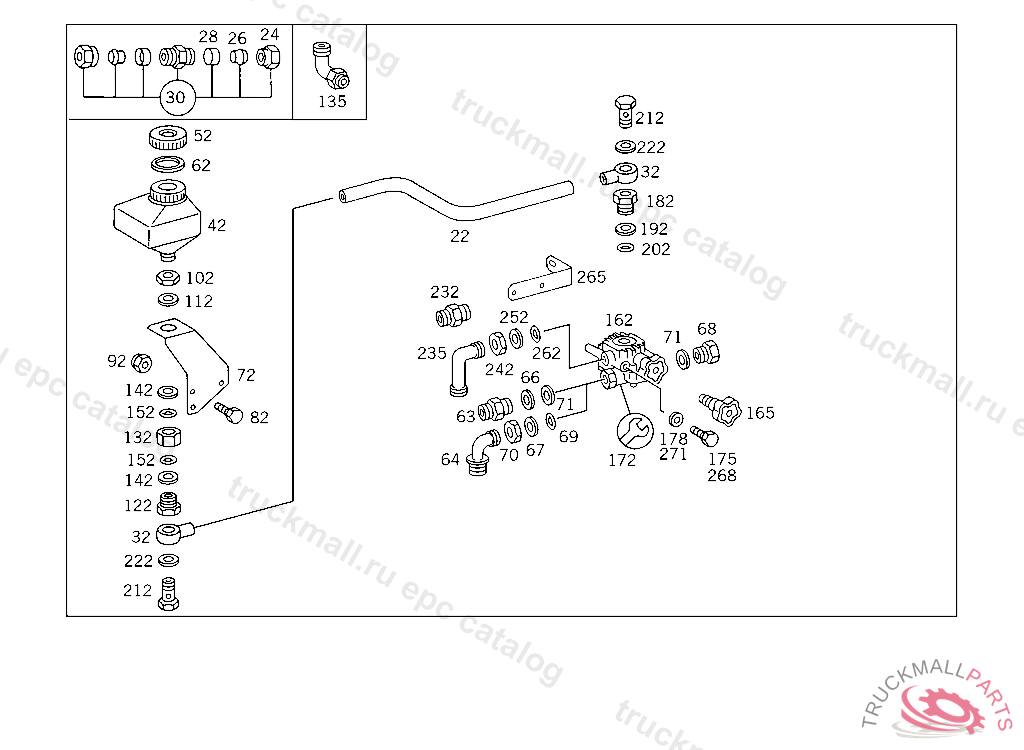

22
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
24
UNION NUT LINE CONNECTION
26
GLAND LINE MOUNTING,5 9363655 812730
28
SLEEVE LINE CONNECTION
30
FITTING , Replaced By: A0029905971
30
FITTING (PARTS KIT),LINE RUPTURE
32
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
42
RESERVOIR , Replaced By: A0024311602, +001A0004317833
42
RESERVOIR ANTI-FREEZE DEVICE
52
FILLER CAP BUTTRESS THREAD
62
SEAL RING
63
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
64
T-FITTING CYCLONE PRE-FILTER BOWL,CONNECTION: "1", PLUG CONNECTION
64
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 350368
66
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
67
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
67
THRUST RING CHECK VALVE TO AIR RESERVOIR
68
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
69
O-RING CHECK VALVE TO AIR RESERVOIR
70
NUT ANTI-FREEZE DEVICE,CONNECTION: "1"
71
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
72
BRACKET BRACKET TO BRAKE BOOSTER SUPPORT,FRONT
72
BRACKET , Replaced By: A6684313240
82
SCREW BRACKET TO CROSS CONNECTION STRUT
92
NUT STRAP TO BRACKET
102
NUT CHECK VALVE TO AIR RESERVOIR
112
WASHER
122
FITTING AIR RESERVOIR,CONNECTIONS: "10,20"
132
ADAPTER FITTING FLUID RESERVOIR TO BRACKET
132
FITTING FROM BRAKE BOOSTER,"A" CONNECTION,TO VALVE,"V" CONNECTION, UP TO IDENT NO. 840080 EXCEPT FOR 500001-599999
135
FITTING , Replaced By: A0019902171
135
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
142
THRUST RING CHECK VALVE TO AIR RESERVOIR
142
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
152
O-RING CHECK VALVE TO AIR RESERVOIR
162
ANTI-FREEZE DEVICEBOSCH
162
ANTI-FREEZE DEVICE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0004312915
162
ANTI-FREEZE DEVICEBOSCH
162
ANTI-FREEZE DEVICEWABCO
162
ANTI-FREEZE DEVICEKNORR
165
HANDLETO 000 431 43 15/44 15
172
REPAIR KITTO 000 431 43 15
172
REPAIR KITTO 000 431 29 15/32 15
172
REPAIR KITTO 000 431 59 15/60 15
172
REPAIR KITTO 000 431 44 15
175
SCREW STRAP TO EXHAUST MUFFLER
175
SCREW SPRING BRACKET TO FRAME
178
WASHER EXHAUST MUFFLER TO STRAP
182
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
192
THRUST RING CHECK VALVE TO AIR RESERVOIR
192
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
202
O-RING CHECK VALVE TO AIR RESERVOIR
212
HOLLOW SCREW HEATING CONNECTION
222
SEAL RING LINE CONNECTION
232
FITTING SHUTTLE VALVE,CONNECTION: "20"
232
FITTING FRONT AXLE II RELAY VALVE,CONNECTION: "24"
235
T-FITTING ANTI-FREEZE DEVICE TO PRESSURE REGULATOR
242
NUT CHECK VALVE TO AIR RESERVOIR
252
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
252
THRUST RING CHECK VALVE TO AIR RESERVOIR
262
O-RING CHECK VALVE TO AIR RESERVOIR
265
BRACKET , Replaced By: A4374260440
265
BRACKET ANTI-FREEZE PUMP
268
SCREW STRAP TO EXHAUST MUFFLER
268
SCREW SPRING BRACKET TO FRAME
271
WASHER EXHAUST MUFFLER TO STRAP
