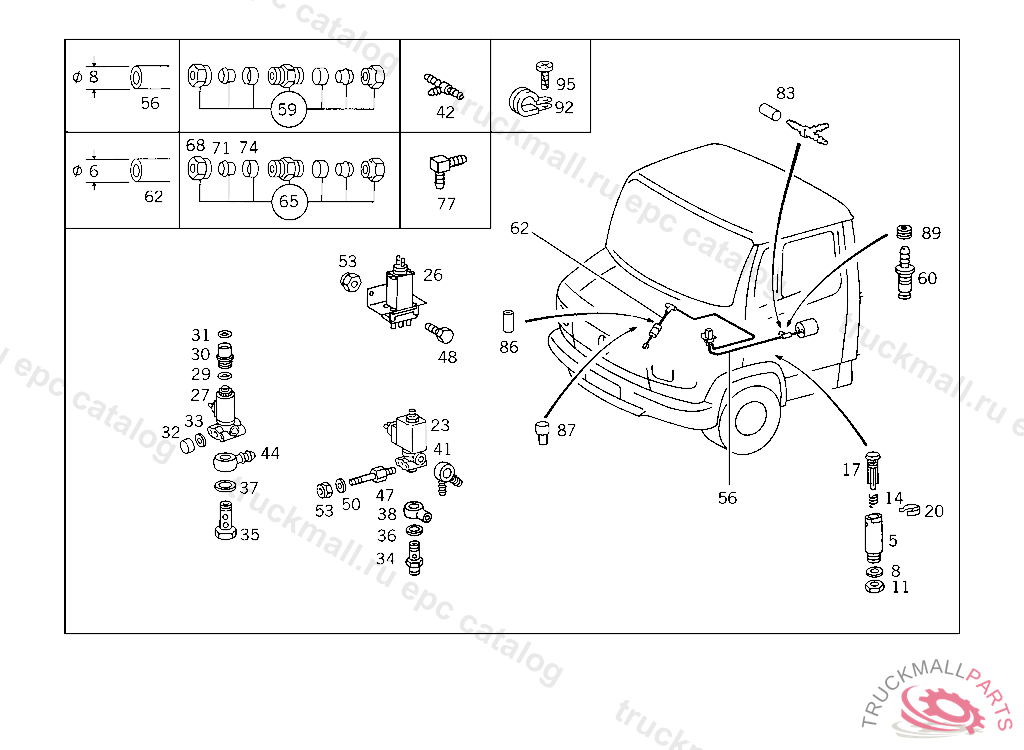

Поз.
Артикул
Описание
27
VALVE (3/2-WAY SOLENOID VALVE) EKS
27
VALVE SOLENOID VALVE,5 450429 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
27
VALVE , Replaced By: A0049975736
30
VALVE PARTTO 004 997 00 36,5 757289 AUSSERDEM EINGEBAUT IN 5 759173
31
SEAL RING24X2 MM
32
SEAL RING VALVE TO VALVE
33
SEAL RINGTO 000 429 24 30
35
HOLLOW SCREW LINE CONNECTION
37
SEAL RING LINE CONNECTION
38
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
44
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
47
PIN VALVE TO SIDE MEMBER
50
WASHER EXHAUST MUFFLER TO STRAP
53
NUT STRAP TO BRACKET
56
PLASTIC PIPE AERATION, ORDER BY THE METER
59
FITTING (PARTS KIT),LINE RUPTURE
60
CONNECTOR HOSE WIDTH, 6 MM,TO M16
60
CONNECTOR , Replaced By: A0029905478
62
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
65
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
68
UNION NUT
71
GLAND , Replaced By: A0019901667
71
SEAL CONE
74
SLEEVE LEAK LINE
77
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
