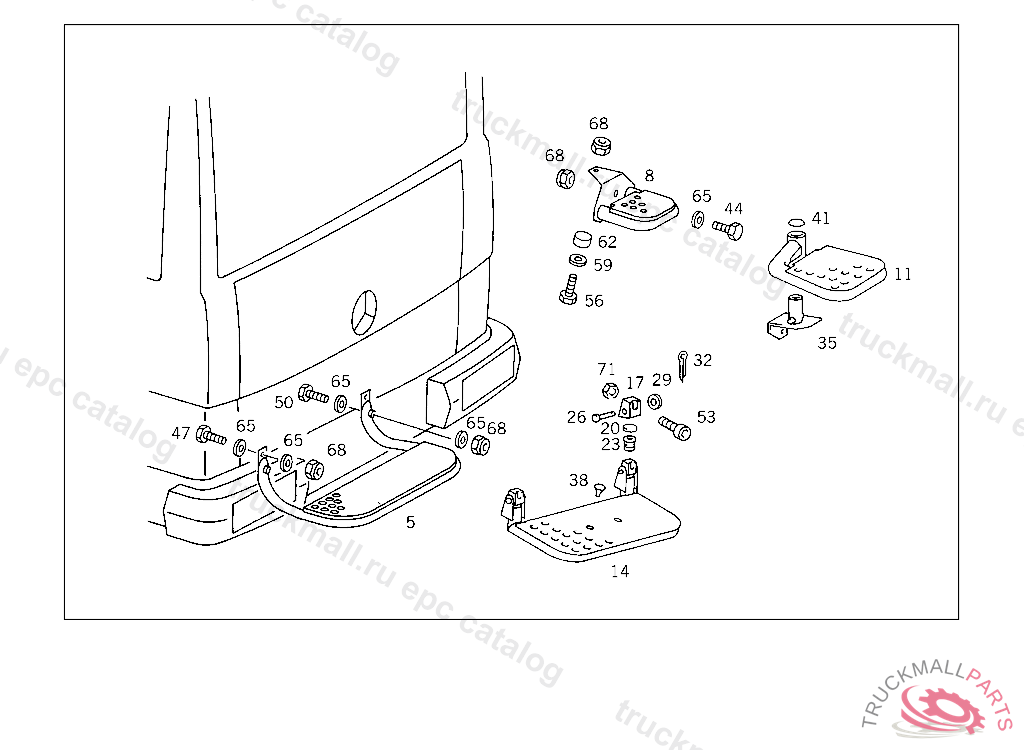

Поз.
Артикул
Описание
5
RUNNING BOARD WIDE VERSION
5
RUNNING BOARD WIDE VERSION,USED W/UNDERRUN PROTECTION
8
RUNNING BOARD NARROW VERSION, USED WITH UNDERRUN PROTECTION & TRAILER COUPLING
8
RUNNING BOARD , 816104 N 000000 P 000000 TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6675200631, +001A6685250639, +002A1239900223, +004N000125010518, +002N000931010357, +002N913004010008
8
RUNNING BOARD
11
RUNNING BOARD
14
RUNNING BOARD
17
BRACKET ROCKER PANEL
20
THRUST WASHER ROCKER PANEL
23
SHIM ROCKER PANEL
26
PIN PLATFORM SIDE AND REAR PANELS TO SUBSTRUCTURE
29
WASHER BEARING BRACKET TO BRACKET
32
COTTER PIN BRACKET TO ROCKER PANEL
35
BRACKET ROCKER PANEL TO UNDERRUN PROTECTION
38
RUBBER BUFFER , UP TO CHASSIS: 007,008,015,017 217504 011 103807 060 106797 062 103959
41
EXPANSION PLUG
44
SCREW CONNECTOR TO REAR SHIFTING ROD
47
HEXAGON HEAD BOLT BRACKET TO BRACKET
50
SCREW. HEXAGON HEAD BOLT TRANSMISSION CASE M10X80
53
SCREW. CAP BOLT SEAT MOUNTING M8X35
53
SCREW , Replaced By: N000912008204
56
SCREW BRACKET TO FRAME SIDE MEMBER
59
WASHER , Replaced By: N009021010209
59
WASHER BRACKET TO COVERING
62
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
62
WASHER PROPELLER SHAFT TO BRACKET
62
WASHER , Replaced By: N007349013005
65
WASHER RADIATOR TO RUBBER MOUNTING
68
NUT CROSS MEMBER TO SIDE MEMBERS
71
NUT STRAP TO BRACKET
