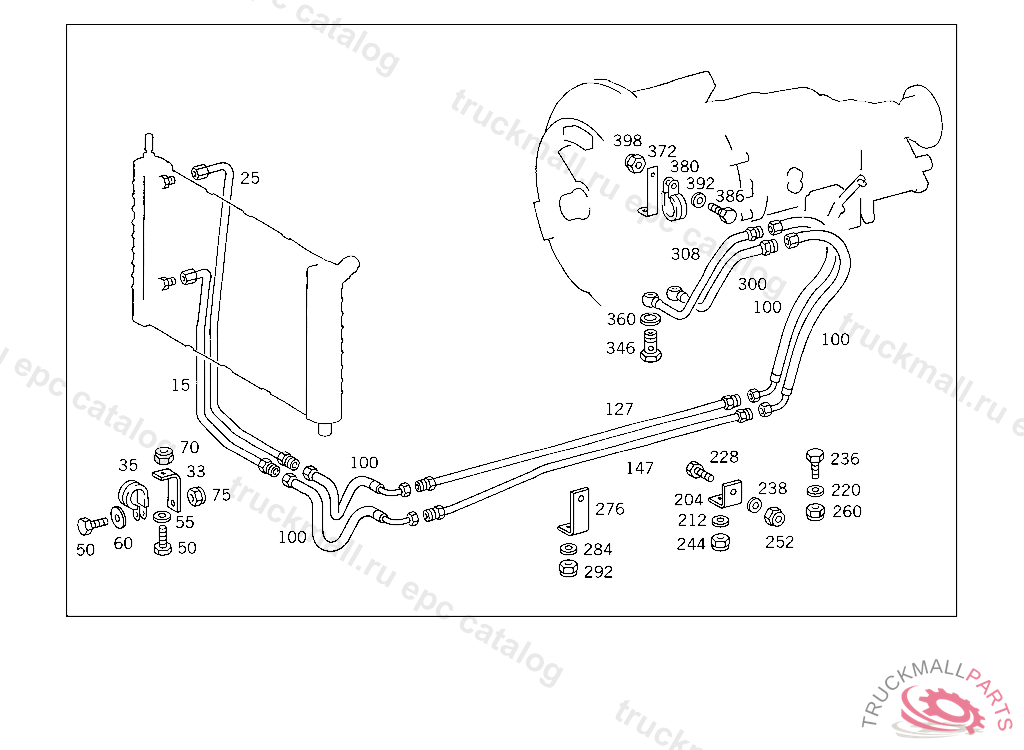

Поз.
Артикул
Описание
15
LINE FEED, OIL COOLER, 855909 N 000000 P 000000
15
LINE FEED, OIL COOLER
25
LINE RETURN, OIL COOLER, 855910 N 000001 P 000001
33
BRACKET LINE MOUNTING
33
BRACKET , 855909 N 000000 P 000000, Replaced By: A6682711140, +001N000125006421, +001N913002006005
33
BRACKET LINE TO SIDE MEMBER
35
CLAMP , Replaced By: N000000001045
35
CLAMP , Replaced By: N916016010211
35
CLAMP CABLE HARNESS MOUNTING
50
SCREW LICENSE PLATE TO BRACKET
55
WASHER SWITCH TO FIRE WALL
60
WASHER COMPRESSED AIR LINE TO BRACKET
60
WASHER , Replaced By: N009021006208
70
NUT OIL TANK TO BRACKET
70
NUT , Replaced By: N913002006009
75
NUT HEATING PIPE TO BRACKET
100
HOSE OIL COOLER,RIGHT
100
HOSE , Replaced By: A2209971652
100
HOSE , Replaced By: A0199978382
100
HOSE , Replaced By: A0189975682
127
LINE FEED, FROM HOSE TO HOSE, 855910 N 000001 P 000001
147
LINE RETURN, FROM HOSE TO HOSE, 855910 N 000001 P 000001
204
BRACKET , 855909 N 000000 P 000000, Replaced By: A6682711240, +001N000125006421, +001N913002006005
204
BRACKET OIL LINES TO FRAME SIDE MEMBERS, 855910 N 000001 P 000001
212
WASHER SWITCH TO FIRE WALL
220
WASHER
228
SCREW STRUT TO CROSS MEMBER M 10X25
236
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
238
WASHER
244
NUT , Replaced By: N913002006009
244
NUT OIL TANK TO BRACKET
252
NUT CROSS MEMBER TO SIDE MEMBERS
260
NUT PLATFORM MOUNTING
260
LOCK BRACKET MOUNTING
276
BRACKET
276
BRACKET , Replaced By: A6682711040, +001N000125006421, +001N913002006005
284
WASHER SWITCH TO FIRE WALL
292
NUT OIL TANK TO BRACKET
292
NUT , Replaced By: N913002006009
300
LINE FEED, FROM TRANSMISSION TO HOSE, 855910 N 000001 P 000001
308
LINE RETURN, FROM HOSE TO TRANSMISSION, 855910 N 000001 P 000001
346
HOLLOW SCREW OIL LINE TO CONVERTER HOUSING
360
SEAL RING COMPRESSED AIR LINE TO PARKING BRAKE VALVE
372
BRACKET , 855909 N 000000 P 000000, Replaced By: A6682711340, +001N000125006421, +001N913002006005
372
BRACKET OIL LINE TO TRANSMISSION, 855910 N 000001 P 000001
380
CLAMP , Replaced By: N000000001045
380
CLAMP , Replaced By: N916016010211
380
CLAMP CABLE HARNESS MOUNTING
386
SCREW COVER PLATE TO COVER PLATE M 6 X 12
386
SCREW LICENSE PLATE TO BRACKET
392
WASHER SWITCH TO FIRE WALL
398
NUT OIL TANK TO BRACKET
398
NUT , Replaced By: N913002006009
999
BRACKET OIL LINES TO FRAME SIDE MEMBERS,N 013504
999
SPACER TUBE BRACKET TO TRANSMISSION
