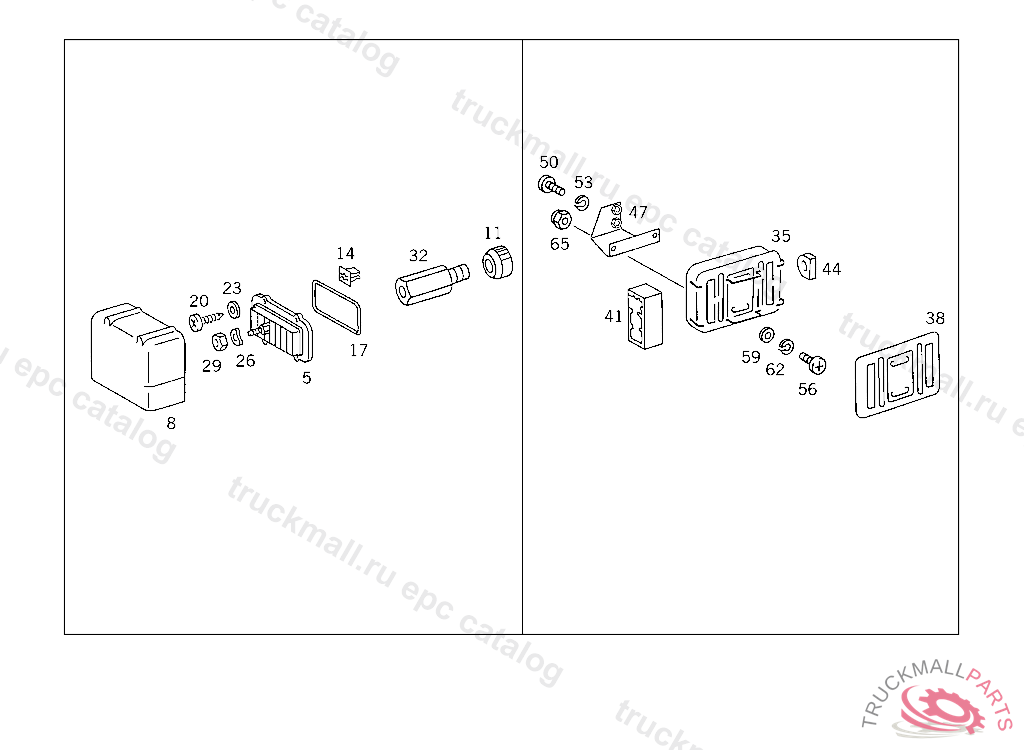

Поз.
Артикул
Описание
5
PLUG HOUSING ENGINE CABLE HARNESS PLUG-CONNECTION TO FRAME MOUNTED CABLE HARNESS
5
PLUG HOUSING. PLUG (PLUG HOUSING)
8
CAP , 832586 N 000001 P 000001
11
NUT , 832585 N 000000 P 000000
11
NUT
14
TREENAIL BRACKET TO FIRE WALL
14
TREENAIL PLUG HOUSING TO FIRE WALL
14
TREENAIL BRACKET TO FIRE WALL, Replaced By: A6399980185
17
SEALING RING. SEAL RING PLUG HOUSING TO FIRE WALL
20
SHEET METAL SCREW BRACKET TO ELECTRICAL APPARATUS COMPARTMENT 4,8X19
23
WASHER BOOT TO CAB FLOOR
23
WASHER , Replaced By: N000433005304
26
SPRING WASHER ALTERNATOR CONNECTION W
29
NUT SPRING-LOADED PUSH ROD
35
CABLE CONNECTOR FRAME,REAR
38
COVERING
41
PLUG REAR CABLE CONNECTOR,5 180266
44
EXPANSION PLUG TO LOCK TRAILER-PLUG-SOCKET OUTLET
47
BRACKET CABLE CONNECTOR,303365
50
SCREW CLAMP MOUNTING M 6X16
50
SCREW , Replaced By: N000000001146
53
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
56
SCREW JUNCTION BOX TO BRACKET
59
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
59
WASHER , Replaced By: N009021005205
62
LOCK WASHER BRACKET TO STEERING COLUMN END
65
NUT TWO-WAY VALVE TO BRACKET
999
CAP
999
CAP , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6675450003
