Mercedes A6717272052 - Leiste

O 345,CONECTO UE 671.020

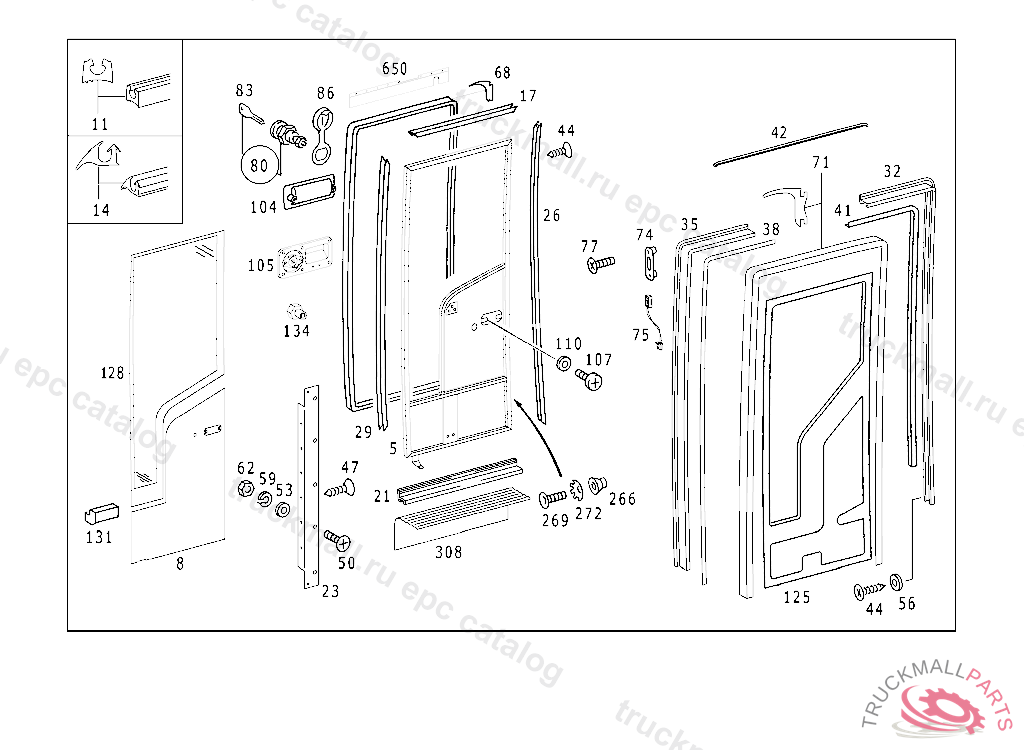

72 DOORS - 090 SWING-OUT FRONT DOOR IL. 1

Поз.
Артикул
Описание
5
A6717200703
5
A6717200803
8
A6717220309
11
HXB3739870725
14
HXB3739871725
17
HXB3737370435
21
A6717271452
26
A6717272052
29
A6717271952
32
A6717271652
35
A6717271752
38
A6717662423
41
A6717662523
42
A6717662223
44
N000000000483
TAPPING SCREW4,2X16
44
N007983003248
SHEET METAL SCREW , Replaced By: N007983004205
56
HXB3739900341
WASHER
68
A6717270130
71
A6717270930
75
Q325633423005
77
A0029900220
SCREW BRACKET TO ORNAMENTAL GRILLE M 6X25
80
HXB3739880160
TUMBLER , STATE LOCK NUMBER WHEN ORDERING
83
HXB3739880059
KEY , STATE LOCK NUMBER WHEN ORDERING
86
A3027550584
FASTENER
104
HXB3736890070
104
HXB3738450075
107
N910105006002
HEXAGON HEAD BOLT
107
N304017006002
SCREW PUMP TO BRACKET
110
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
125
A6717270471
125
A6717270571
128
A6717200220
128
A6717200420
131
HXB3736740021
266
HXB0007230029
269
A0029900820
SCREW GRIP RAIL MOUNTING M 8 X 30
269
N007991008013
272
N006798008304
SERRATED WASHER TAILGATE
308
A6717270752
